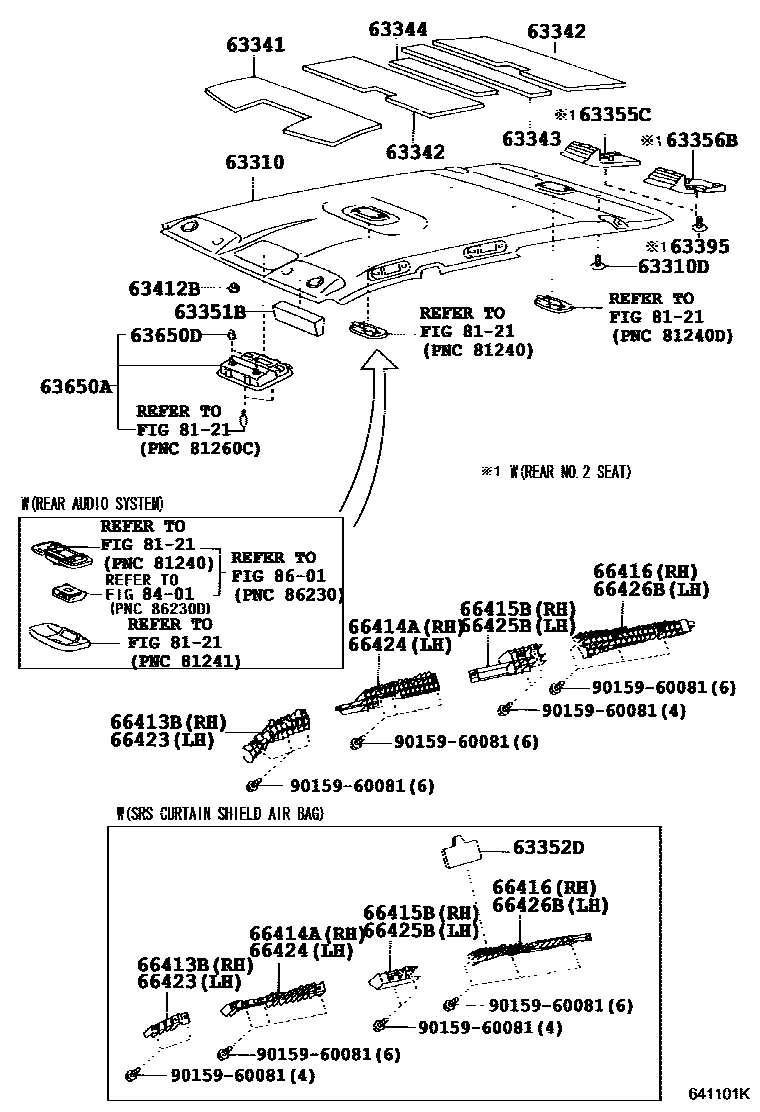

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63311-35260-B0iGRN21#,UZN21#..LIMD200208-200301

REAR AUDIO-WITH(RSA),STONE,TRIM1#

main63311-35260-B0iGRN21#,UZN21#..LIMD200208-200301

STONE,TRIM1#

main63311-35260-E0iGRN21#,UZN21#..LIMD200208-200301

FAWN,TRIM4#

main63311-35260-E0iGRN21#,UZN21#..LIMD200208-200301

REAR AUDIO-WITH(RSA),FAWN,TRIM4#

main63311-35270-B0iGRN21#,UZN21#..SR5200208-200301

STONE,TRIM1#

main63311-35270-E0iGRN21#,UZN21#..SR5200208-200301

FAWN,TRIM4#

main63311-35280-B0iGRN21#,UZN21#..SR5200301-200312

STONE,TRIM1#

main63311-35280-E0iGRN21#,UZN21#..SR5200301-200312

FAWN,TRIM4#

main63311-35281-B0iGRN21#,UZN21#..SR5200312-200508

STONE,TRIM1#

main63311-35281-E0iGRN21#,UZN21#..SR5200312-200508

FAWN,TRIM4#

main63311-35290-B0iGRN21#,UZN21#..LIMD200301-200312

STONE,TRIM1#

main63311-35290-E0iGRN21#,UZN21#..LIMD200301-200312

FAWN,TRIM4#

main63311-35291-B0iGRN21#,UZN21#..LIMD200312-200508

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),STONE,TRIM1#

main63311-35291-B0iGRN21#,UZN21#..LIMD200312-200508

STONE,TRIM1#

main63311-35291-B0iGRN21#,UZN21#..LIMD200312-200508

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),STONE,TRIM1#

main63311-35291-E0iGRN21#,UZN21#..LIMD200312-200508

FAWN,TRIM4#

main63311-35291-E0iGRN21#,UZN21#..LIMD200312-200508

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),FAWN,TRIM4#

main63311-35291-E0iGRN21#,UZN21#..LIMD200312-200508

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),FAWN,TRIM4#

main63311-35360-B0iGRN21#,UZN21#200508-200908

STONE,TRIM1#

main63311-35360-E0iGRN21#,UZN21#200508-200908

FAWN,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-05164-B1iGRN21#..LIMD200208-200908

STONE,TRIM1#

main90467-05164-B1iGRN21#..LIMD200208-200508

STONE,TRIM12,13

main90467-05164-E1iGRN21#,UZN21#..5FC200208-200908

FAWN,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-35130iGRN21#200208-200508

63342PAD, ROOF SILENCER, NO.2

main63342-35010iGRN21#200208-200508

W/MOON ROOF

main63342-35010iGRN21#,UZN21#200508

WITH(MOON ROOF)

main63342-35010iGRN21#,UZN21#200508

WITH(MOON ROOF)&REAR AUDIO-REAR SEAT ENTERTAINMENT

63343PAD, ROOF SILENCER, NO.3

main63342-35040iGRN21#200208-200508

63344PAD, ROOF SILENCER, NO.4

main63342-35050iGRN21#,UZN21#..5FC200208-200508

63351BPAD, ROOF HEADLINING

main63351-35030iGRN21#200208-200508

63352DPAD, ROOF HEADLINING, NO.2

main63352-35010iGRN21#,UZN21#200706

63355CPAD, ROOF HEADLINING, RH

63356BPAD, ROOF HEADLINING, LH

63395CLIP, ROOF HEADLINING TRIM

main90467-05164

63412BRETAINER, ROOF CONSOLE

main63412-35010iGRN21#,UZN21#..5FC200208-200508

63650ABOX ASSY, ROOF CONSOLE

main63670-0W010-B0iGRN21#..SR5200208-200508

STONE,TRIM12,13

main63670-0W010-B0iGRN21#,UZN21#..SR5200508-200908

STONE,TRIM1#

main63670-0W010-E0iGRN21#..SR5200208-200908

FAWN,TRIM4#

main63670-0W030-B0iGRN21#,UZN21#..5FC..SR5200208-200508

W/GARAGE OPENER,STONE,TRIM12,13

main63670-0W030-B0iGRN21#..LIMD200208-200908

STONE,TRIM1#

main63670-0W030-B0iGRN21#,UZN21#..LIMD200508-200908

GARAGE OPENER-WITH,STONE,TRIM1#

main63670-0W030-E0iGRN21#,UZN21#..5FC..SR5200208-200908

FAWN,TRIM4#

main63670-0W030-E0iGRN21#,UZN21#..5FC..SR5200208-200508

W/GARAGE OPENER,FAWN,TRIM4#

main63670-0W030-E0iGRN21#,UZN21#..LIMD200508-200908

GARAGE OPENER-WITH,FAWN,TRIM4#

63650DCLIP(FOR ROOF CONSOLE BOX)

main90468-05125iGRN21#,UZN21#..SR5200208-200508

66413BSPACER, SIDE RAIL, FRONT RH

main66413-35010iGRN21#,UZN21#200208-200706

main66413-35020iGRN21#,UZN21#200706

66414ASPACER, SIDE RAIL, REAR RH

main66414-35010iGRN21#,UZN21#200208-200706

main66414-35020iGRN21#,UZN21#200706

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-35050iGRN21#,UZN21#200208-200706

main66415-35060iGRN21#,UZN21#200706

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-35010iGRN21#,UZN21#200208-200508

main66416-35030iGRN21#,UZN21#200508-200706

main66416-35040iGRN21#,UZN21#200706

66423SPACER, SIDE RAIL, FRONT LH

main66423-35010iGRN21#,UZN21#200208-200706

main66423-35020iGRN21#,UZN21#200706

66424SPACER, SIDE RAIL, REAR LH

main66424-35010iGRN21#,UZN21#200208-200706

main66424-35020iGRN21#,UZN21#200706

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-35050iGRN21#,UZN21#200208-200706

main66425-35060iGRN21#,UZN21#200706

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-35010iGRN21#,UZN21#200208-200508

main66426-35030iGRN21#,UZN21#200508-200706

main66426-35040iGRN21#,UZN21#200706

8121INTERIOR LAMP

→ Go to FIG 81-21

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

9015960081

main90159-60081

26 parts on this diagram · 2 diagrams in section
