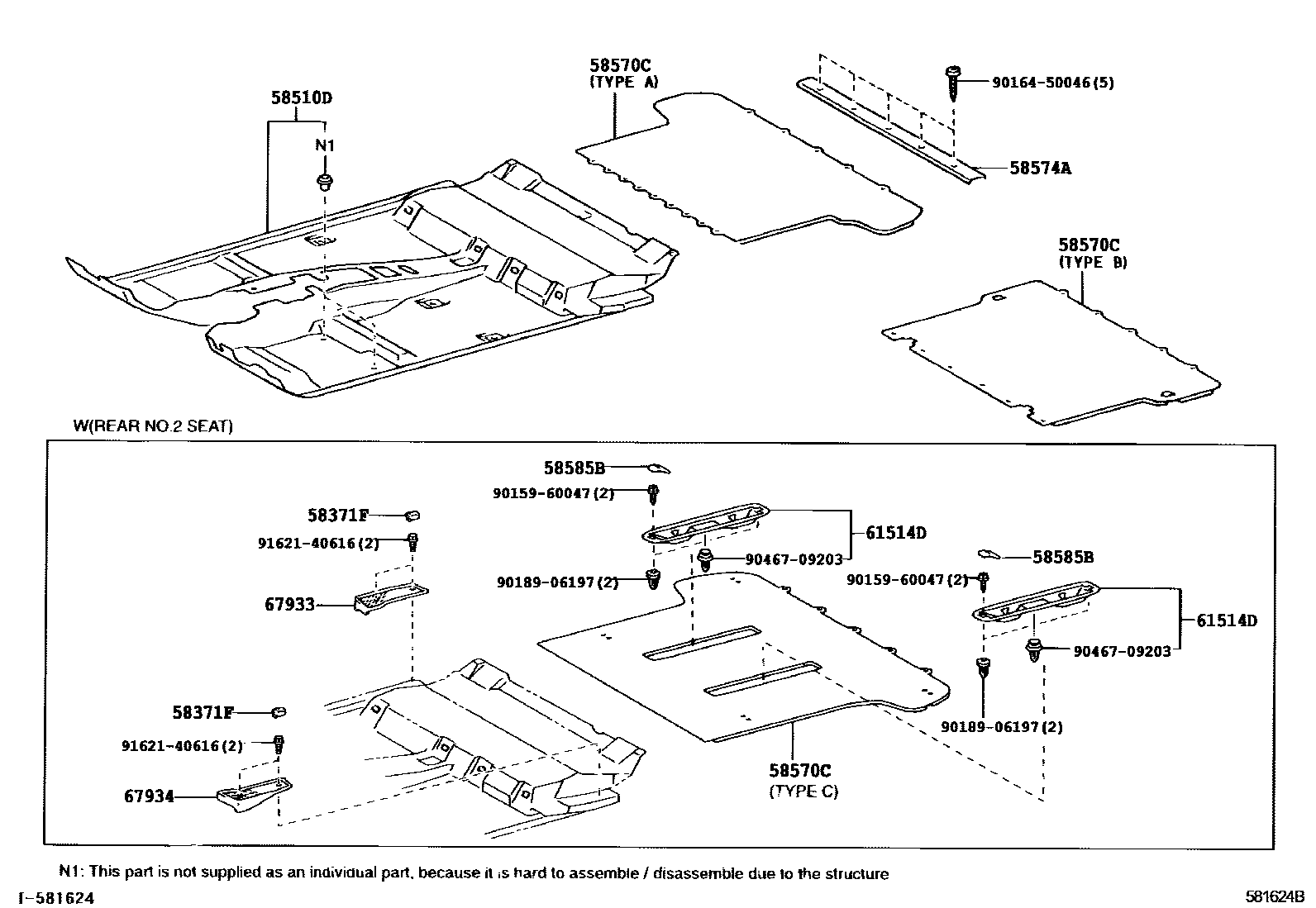

FLOOR MAT & SILENCER PAD
58371FCOVER, REAR FLOOR STEP, NO.1
W/3RD SEAT,STONE,TRIM1#; W/3RD SEAT,STONE,TRIM12,13
W/3RD SEAT,FAWN,TRIM4#
58510DCARPET ASSY, FLOOR, FRONT
STONE,TRIM1#; STONE,TRIM12,13
FAWN,TRIM4#
3RD SEAT PACKAGE,STONE,TRIM1#
3RD SEAT PACKAGE,FAWN,TRIM4#
58570CCARPET ASSY, REAR FLOOR
TRUNK & DECK CARPET & MAT-DOUBLE DECK,STONE,TRIM1#,TYPE B:REFER ILLUST.; TRUNK & DECK CARPET & MAT-DOUBLE DECK,STONE,TRIM12,13,TYPE B:REFER ILLUST.
TRUNK & DECK CARPET & MAT-DOUBLE DECK,FAWN,TRIM4#,TYPE B:REFER ILLUST.
TRUNK & DECK CARPET & MAT-FOR 3RD SEAT,STONE,TRIM1#,TYPE C:REFER ILLUST.; TRUNK & DECK CARPET & MAT-FOR 3RD SEAT,STONE,TRIM12,13,TYPE C:REFER ILLUST.
TRUNK & DECK CARPET & MAT-FOR 3RD SEAT,FAWN,TRIM4#,TYPE C:REFER ILLUST.
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
STONE,TRIM1#; STONE,TRIM12,13
FAWN,TRIM4#
58585BCOVER, REAR FLOOR SEAT LOCK
W/3RD SEAT,STONE,TRIM1#; W/3RD SEAT,STONE,TRIM12,13
W/3RD SEAT,FAWN,TRIM4#
61514DRAIL, SEAT ANCHOR, NO.4
W/3RD SEAT,STONE,TRIM1#; W/3RD SEAT,STONE,TRIM12,13
W/3RD SEAT,FAWN,TRIM4#
67933PLATE, QUARTER SCUFF, INNER RH
W/3RD SEAT,STONE,TRIM1#; W/3RD SEAT,STONE,TRIM12,13
W/3RD SEAT,FAWN,TRIM4#
67934PLATE, QUARTER SCUFF, INSIDE LH
3RD SEAT PACKAGE,STONE,TRIM1#
3RD SEAT PACKAGE,FAWN,TRIM4#
9015960047
main90159-60047
9016450046
main90164-50046
9018906197
main90189-06197
9046709203
main90467-09203
9162140616
main91621-40616
13 parts on this diagram · 1 diagram in section
