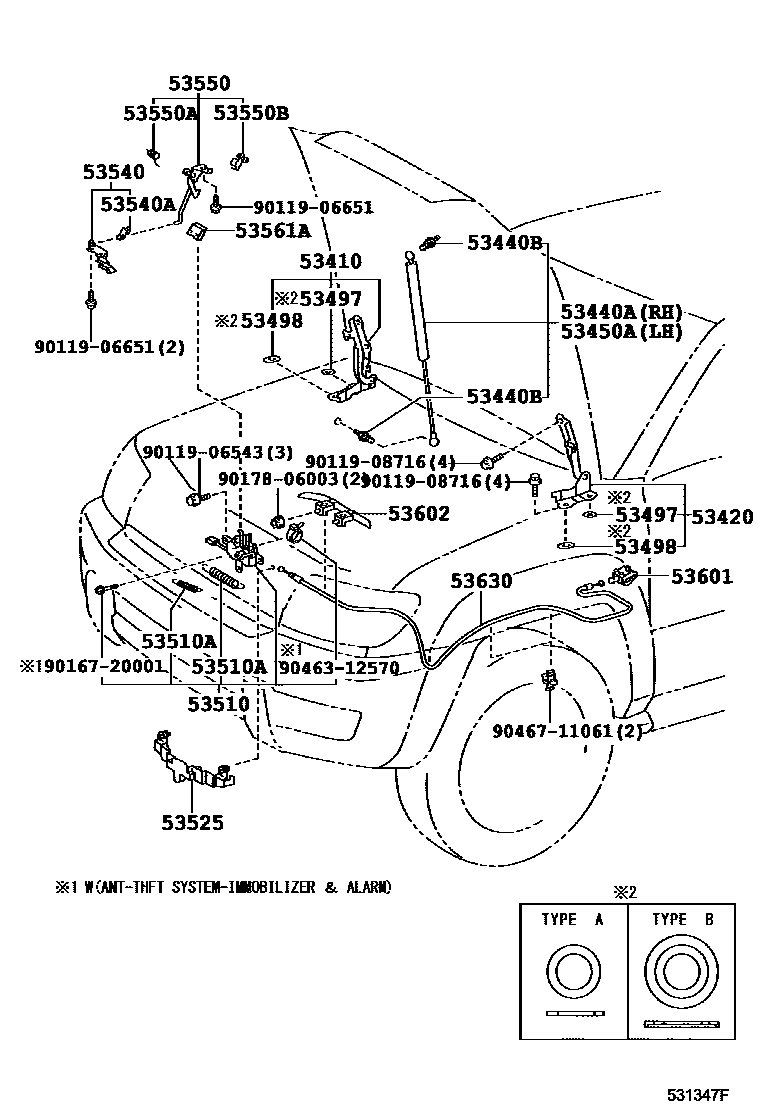

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
53420HINGE ASSY, HOOD, LH
TYPE B:REFER ILLUST.
53440ASUPPORT ASSY, HOOD, RH
53440BBOLT, HOOD SUPPORT, NO.1
53450ASUPPORT ASSY, HOOD, LH
53497PAD, HOOD HINGE, NO.1
T=0.5,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
T=0.5
T=1.0,TYPE B:REFER ILLUST.
53498PAD, HOOD HINGE, NO.2
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
53510LOCK ASSY, HOOD
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
53510ASPRING, TENSION(FOR HOOD LOCK)
main90506-09055supersedes 90506-09050iGRN21#,UZN21#..5FC..LIMD; GRN21#,UZN21#..5FC..SR5200208-200508
WD=0.9,CW=21; WD=0.9,CW=21,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM
WD=2.0,CW=16.0
53525PROTECTOR, HOOD LOCK RELEASE LEVER
53540LEVER ASSY, AUXILIARY CATCH RELEASE
53540ASNAP, AUXILIARY CATCH RELEASE LEVER CONTROL LINK
53550HOOK ASSY, HOOD AUXILIARY CATCH
53550ASPRING, TORSION(FOR HOOD LOCK HOOK)
53550BSNAP, HOOD AUXILIARY CATCH HOOK CONTROL LINK
53561AGUIDE, HOOD AUXILIARY CATCH HOOK
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
STONE,TRIM1#; STONE,TRIM12,13
FAWN,TRIM4#
53602PROTECTOR SUB-ASSY, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
9011906543
main90119-06543
9011906651
main90119-06651
9011908716
main90119-08716
9016720001
main90167-20001
9017806003
main90178-06003
9046312570
main90463-12570
9046711061
main90467-11061
26 parts on this diagram · 2 diagrams in section
