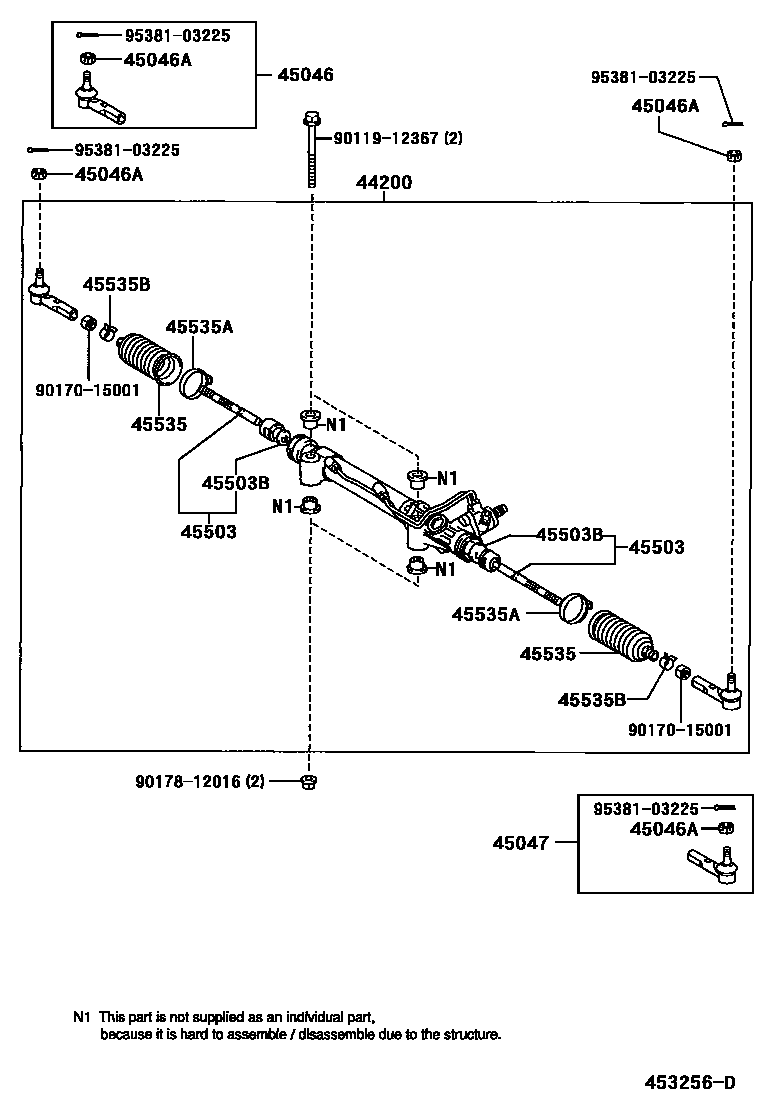

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-35060iGRN21#,UZN21#200208-200309

main44200-35061iGRN21#,UZN21#200309-200408

main44200-35070iGRN21#,UZN21#200408-200508

45046END SUB-ASSY, TIE ROD, RH

main45046-39505iGRN21#200208-200408

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iGRN21#200208-200408

45047END SUB-ASSY, TIE ROD, LH

main45046-39505iGRN21#200208-200408

45503END SUB-ASSY, STEERING RACK

main45503-39235×2iGRN21#,UZN21#200208-200309

main45503-39265×2iGRN21#,UZN21#200309-200408

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-22001×2iGRN21#200208-200408

OD=43

45535BOOT, STEERING RACK, NO.1

main45535-26030×2iGRN21#200208-200408

45535ACLAMP(FOR STEERING RACK BOOT)

main90460-55016×2iGRN21#200208-200408

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iGRN21#200208-200408

9011912367

main90119-12367

9017015001

main90170-15001

9017812016

main90178-12016

9538103225

main95381-03225

13 parts on this diagram · 2 diagrams in section
