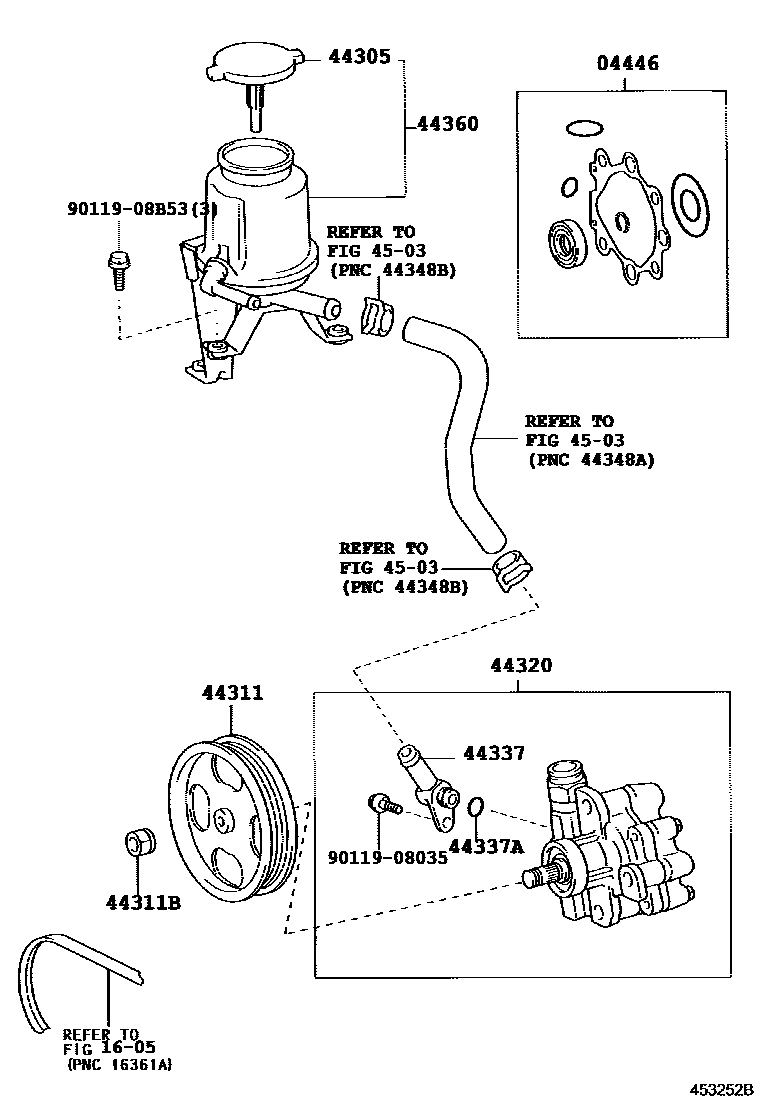

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iGRN21#200211-200908

main04446-53030iUZN21#200208-200908

1605

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iGRN21#,UZN21#..5FC200208-200801

sub44305-28060

main44305-28060iGRN21#,UZN21#200802

sub44305-28061

44311PULLEY, VANE PUMP

main44311-60090iUZN21#200208-200508

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iUZN21#200208-200508

44320PUMP ASSY, VANE

main44320-35610iUZN21#200208-200908

44337UNION, POWER STEERING SUCTION PORT

main44337-12010iUZN21#200208-200508

main44337-32110iGRN21#..5FC200211-200508

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iUZN21#200208-200508

main90301-11020iGRN21#200211-200508

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-35170iGRN21#,UZN21#200208-200908

4503

9011908035

main90119-08035

9011908B53

main90119-08B53

12 parts on this diagram · 2 diagrams in section
