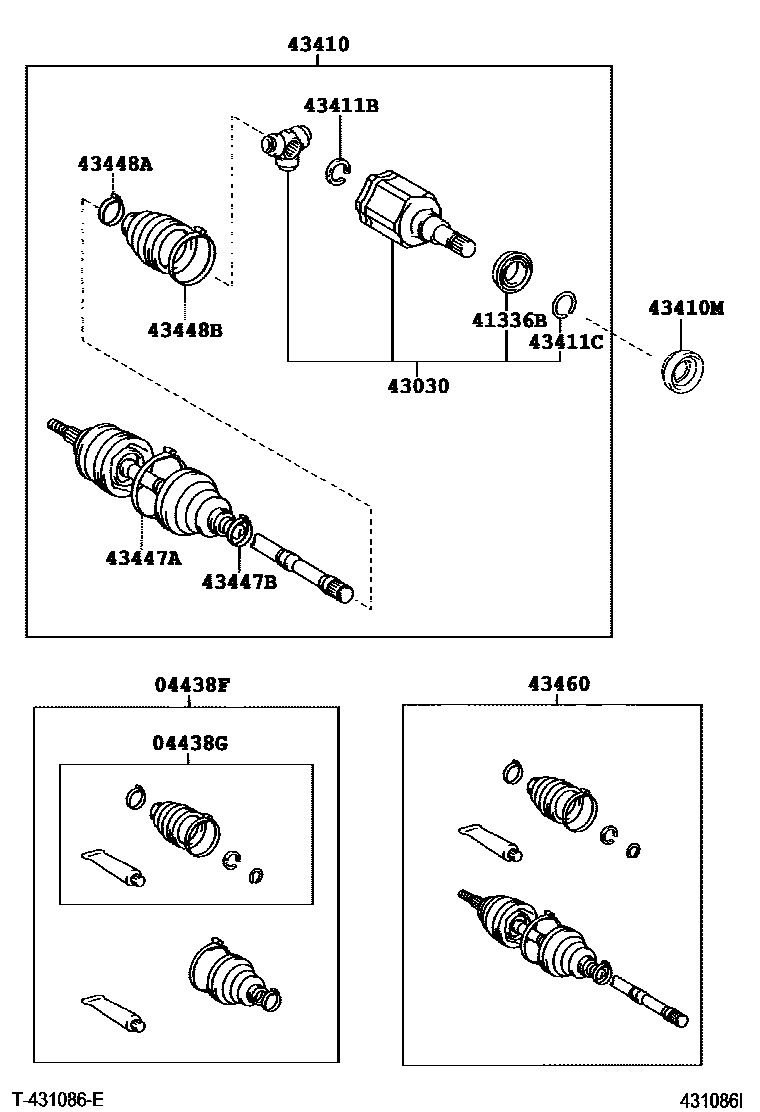

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-60080iGRN215,UZN215200408-200908

main04438-60030iGRN215,UZN215200208-200408

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-60040iGRN215,UZN215200508

main04438-60040iGRN215,UZN215200208-200508

41336BCOVER, DUST(FOR FRONT DRIVE SHAFT)

main41336-35020iGRN215,UZN215200208-200508

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-60020iGRN215200208-200508

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-60060iGRN215200208-200508

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-47013iGRN215,UZN215200208-200908

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-26028iGRN215,UZN215200208-200508

43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)

main90521-34003iGRN215200208-200908

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-60120iGRN215,UZN215200208-200508

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-60110iGRN215200208-200508

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-60090iGRN215200208-200508

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01339iGRN215200208-200508

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-69055iGRN215,UZN215200208-200408

main43460-69105iGRN215,UZN215200408-200508

13 parts on this diagram · 2 diagrams in section
