REAR AXLE SHAFT & HUB

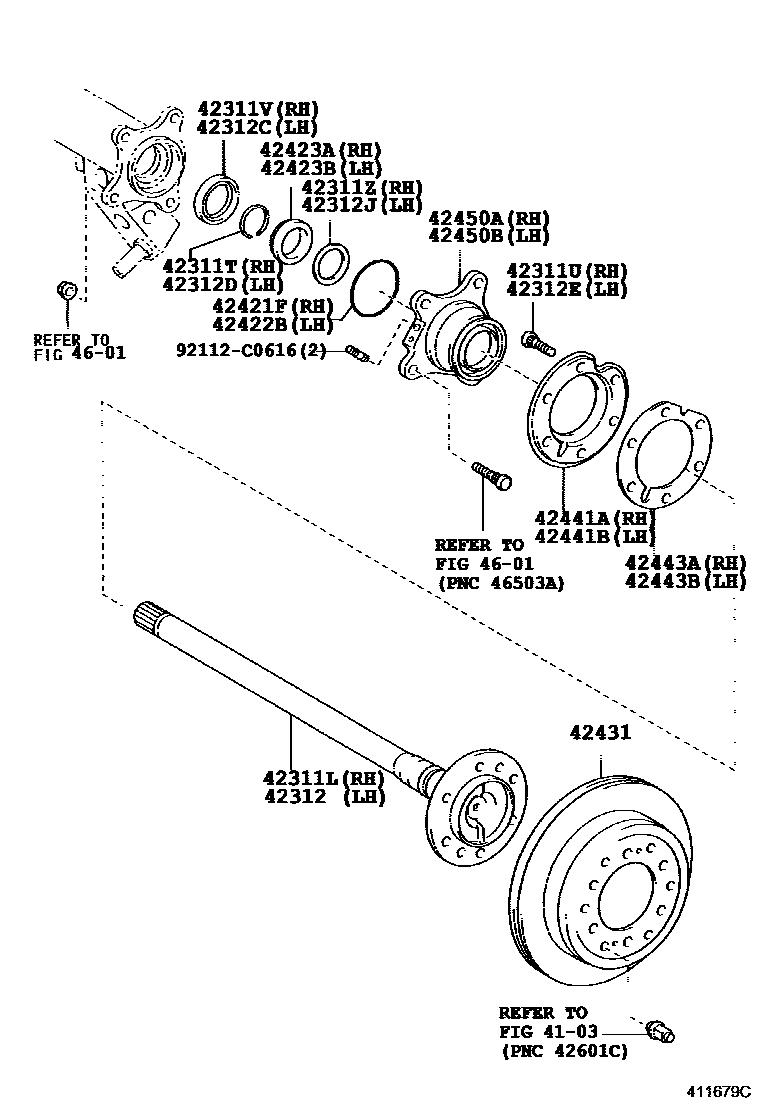

Parts diagram

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311LSHAFT, REAR AXLE, RH

main42311-60240i200211-200408

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-41019i200211-200408

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02079×6i200211-200408

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-58003i200211-200408

42311ZWASHER(FOR REAR AXLE SHAFT RH)

main90208-44001i200211-200408

42312SHAFT, REAR AXLE, LH

main42311-60240i200211-200408

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-58003i200211-200408

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-41019i200211-200408

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02079×6i200211-200408

42312JWASHER(FOR REAR AXLE SHAFT LH)

main90208-44001i200211-200408

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-83002i200211-200408

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-83002i200211-200408

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-60050i200211-200408

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-60050i200211-200408

42431DISC, REAR

main42431-60200×2i200208-200506

main42431-60201×2i200506-200508

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-60060i200211-200408

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-60060i200211-200408

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-60010i200211-200408

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-60010i200211-200408

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-60050i200208-200508

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-60010i200208-200508

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

92112C0616

main92112-C0616

24 parts on this diagram · 1 diagram in section
