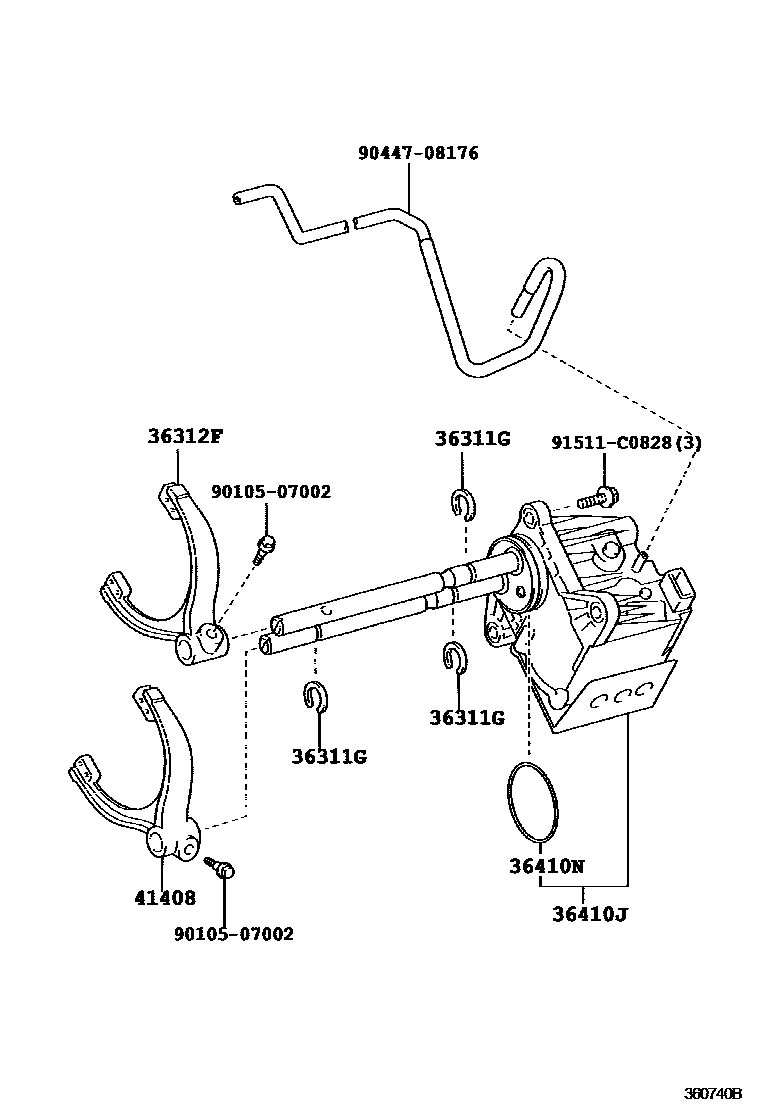

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002×3iGRN215,UZN215200208-200508

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-35011iGRN215,UZN215200208-200508

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-35090iGRN215200211-200408

main36410-35091iGRN215200408-200411

main36410-35092iGRN215200411-200508

main36410-60090iUZN215200208-200408

main36410-60091iUZN215200408-200411

main36410-60092iUZN215200411-200508

36410NRING, O (FOR TRANSFER SHIFT ACTUATOR)

main90301-56009iGRN215,UZN215200208-200508

41408FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK

main41408-60021iUZN215200208-200508

9010507002

main90105-07002

9044708176

main90447-08176

91511C0828

main91511-C0828

8 parts on this diagram · 2 diagrams in section
