TRANSFER ASSEMBLY & GASKET KIT

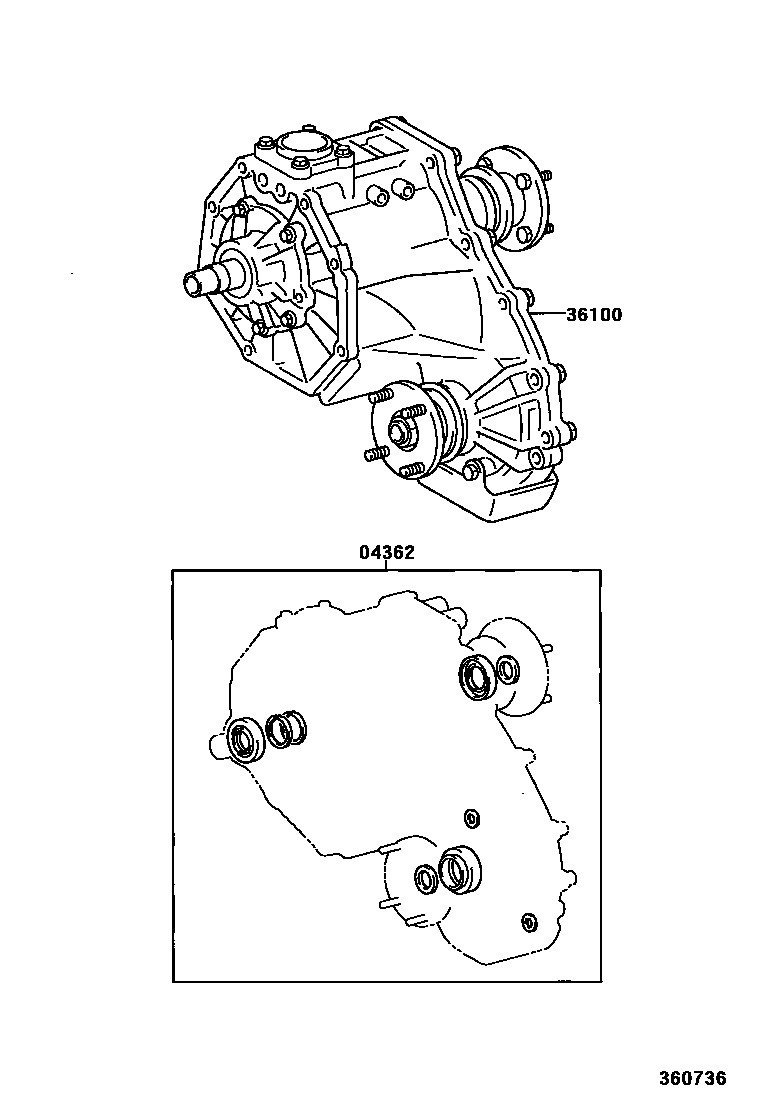

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-34011i200508-200608

main04362-35070i200208-200408

main04362-35081i200408-200508

main04362-60780i200609-200807

main04362-71090i200807-200908

36100TRANSFER ASSY

main36100-3D510i200211-200508

main36100-6D400i200208-200508

2 parts on this diagram · 1 diagram in section
