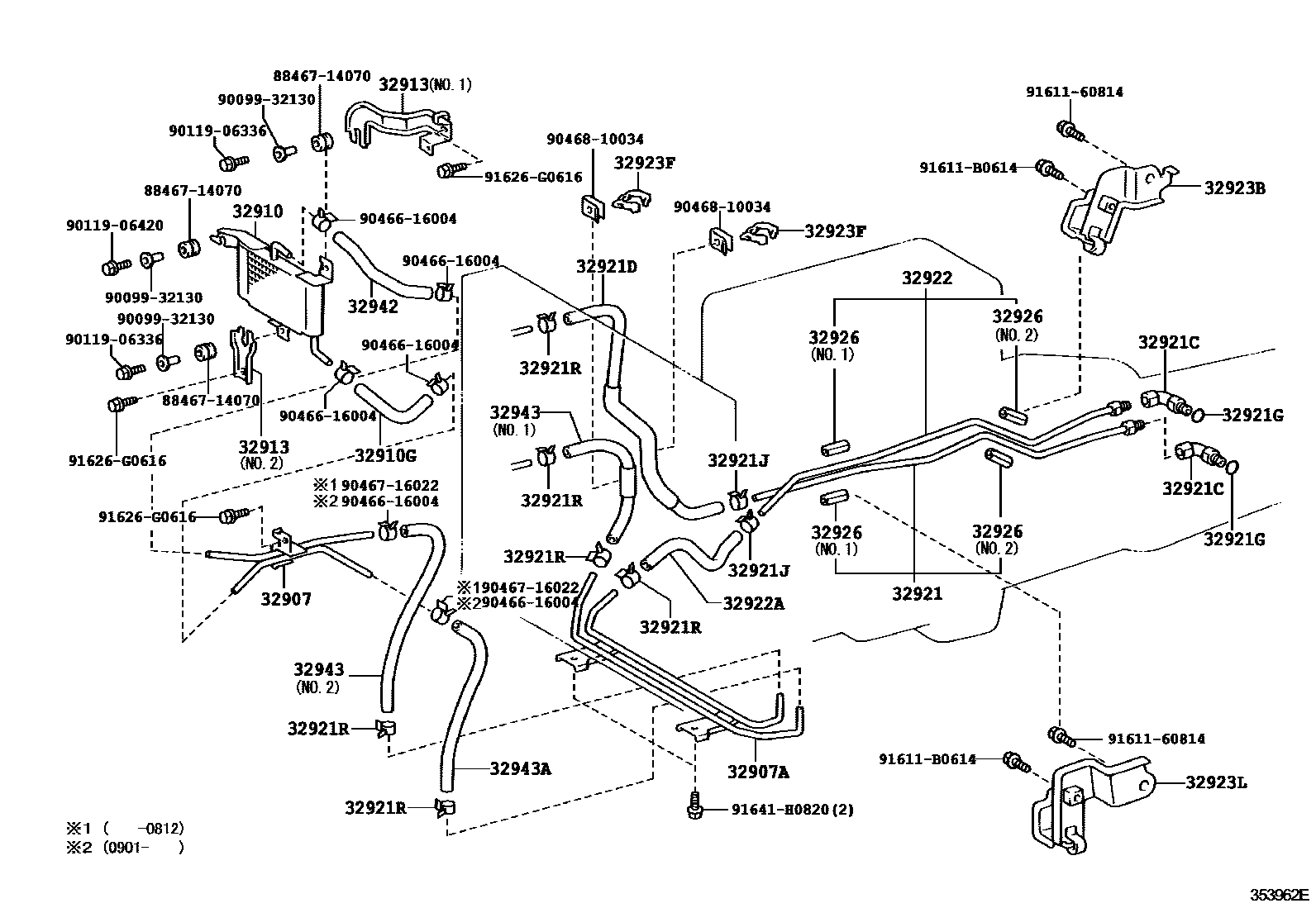

OIL COOLER & TUBE (ATM)

0001 1A750E,A750F 0002 1A340E,A340F 0003 1A340E,A340F AIR COOLING OIL C0005 1A750E,A750F

32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2

main32907-60090iUZN21#200208-200310

main32907-60110iUZN21#200310-200508

32907ATUBE, OIL COOLER

main32907-60060iUZN21#200508

main32907-60070iGRN21#200508

32910COOLER ASSY, OIL

main32910-60150iUZN21#200208-200508

32910GHOSE, OIL COOLER OUTLET

main32943-60320iUZN21#200208-200508

32913BRACKET, OIL COOLER

main32913-60240iUZN21#200508

NO.1

main32913-60250iUZN21#200208-200508

NO.2

32921TUBE, OIL COOLER INLET, NO.1

main32921-60250iGRN21#200508-200908

main32921-60300iGRN21#200211-200408

main32921-60330iUZN21#200208-200408

main32921-60380iUZN21#200508-200908

32921CUNION(FOR OIL COOLER TUBE)

main90407-14024iGRN21#200211-200408

INLET

main90407-16009×2iGRN21#,UZN21#200408-200508

main90407-16037×2iUZN21#200208-200408

main90904-07001iGRN21#200211-200408

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-60260iUZN21#200508

main90445-17124iGRN21#200508

main90445-17176iGRN21#200211-200408

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iGRN21#200208-200408

main90301-11030×2iGRN215200811

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×2iGRN21#,UZN21#200901

main90467-16022×2iGRN21#,UZN21#200508-200812

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×6iGRN21#,UZN21#200706

main90467-16022×6iGRN21#200211-200408

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-60270iGRN21#200508

main32922-60320iGRN21#200211-200408

main32922-60350iUZN21#200208-200408

main32922-60410iUZN21#200508

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-26170iGRN21#200508

main32942-60400iGRN21#200211-200408

main90445-17103iUZN21#200508-200812

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32909-60150iUZN21#200208-200508

main32923-60100iGRN21#200211-200408

32923FCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.7

main90464-00166×2iUZN21#200208-200508

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main32909-60130iGRN21#200408-200508

main32909-60140iUZN21#200208-200508

main32924-60130iGRN21#200211-200408

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iGRN21#; UZN21#200508

L=35,ID=10; L=35,ID=10,NO.1

main32926-30030×2iUZN21#200508

L=35,ID=10,NO.2

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-60410iUZN21#200508

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-60240iUZN21#200310-200508

NO.2

main32943-60250iUZN21#200208-200508

NO.1

main32943-60260iUZN21#200208-200310

NO.2

main32943-60270iGRN21#200211-200301

TOWING PACKAGE-WITH

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-60300iUZN21#200208-200310

main32943-60330iUZN21#200508

main32943-60280iGRN21#200211-200301

TOWING PACKAGE-WITH

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

9009932130

main90099-32130

9011906336

main90119-06336

9011906420

main90119-06420

9046616004

main90466-16004

9046716022

main90467-16022

9046810034

main90468-10034

9161160814

main91611-60814

91611B0614

main91611-B0614

91626G0616

main91626-G0616

91641H0820

main91641-H0820

31 parts on this diagram · 4 diagrams in section
