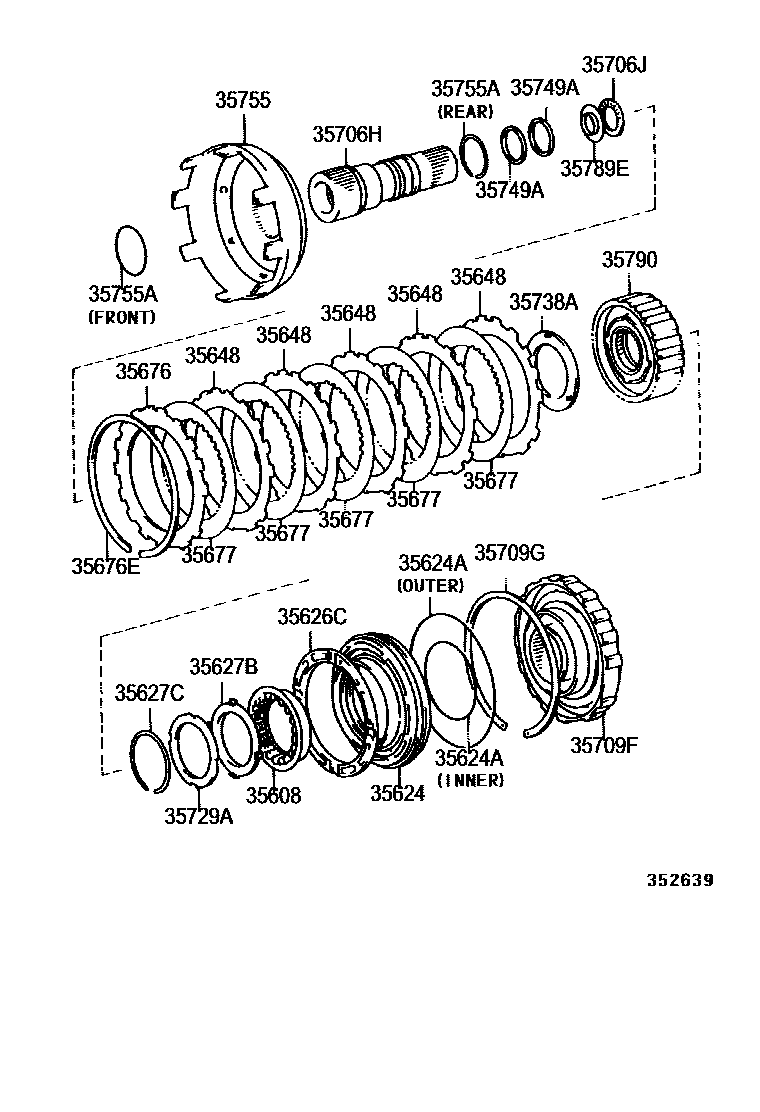

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-30010i200211-200408

35624PISTON, 2ND BRAKE

main35624-30010i200211-200408

main35624-60010i200408-200508

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-85001i200211-200408

INNER

main90301-99038i200211-200408

OUTER

main90301-99095i200408-200508

INNER

main90301-99115i200408-200508

OUTER

35626CSLEEVE, 2ND BRAKE PISTON

main35626-30030i200211-200408

35627BSEAT, 2ND BRAKE PISTON RETURN SPRING

main35627-30010i200211-200408

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-54001i200211-200408

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35647-30020×4i200211-200408

T=2.5

main35647-30030i200211-200408

T=1.8

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-30020i200211-200408

T=3.0

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90521-99032i200211-200408

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30080×5i200211-200408

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-60040i200211-200408

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-27009i200211-200408

35709FDRUM SUB-ASSY, 2ND BRAKE

main35709-30061i200211-200408

35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)

main90521-99044i200211-200408

35729AWASHER, PLANETARY CARRIER THRUST, NO.4

main35729-30010i200211-200408

35738AWASHER, 1 WAY CLUTCH THRUST, NO.1

main35738-30040i200211-200408

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-30010×2i200211-200408

35755DRUM, SUN GEAR INPUT

main35755-50010i200211-200408

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-46002i200211-200408

ID=46.0,T=1.2,REAR

main90520-49001i200211-200408

ID=49.0,WD=2.3,FRONT

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-30240i200211-200408

35790CLUTCH ASSY, 1 WAY

main35790-0C010i200811

(L)

main35790-30060i200211-200408

main35790-50020i200309-200508

main35790-60010i200208-200309

21 parts on this diagram · 2 diagrams in section
