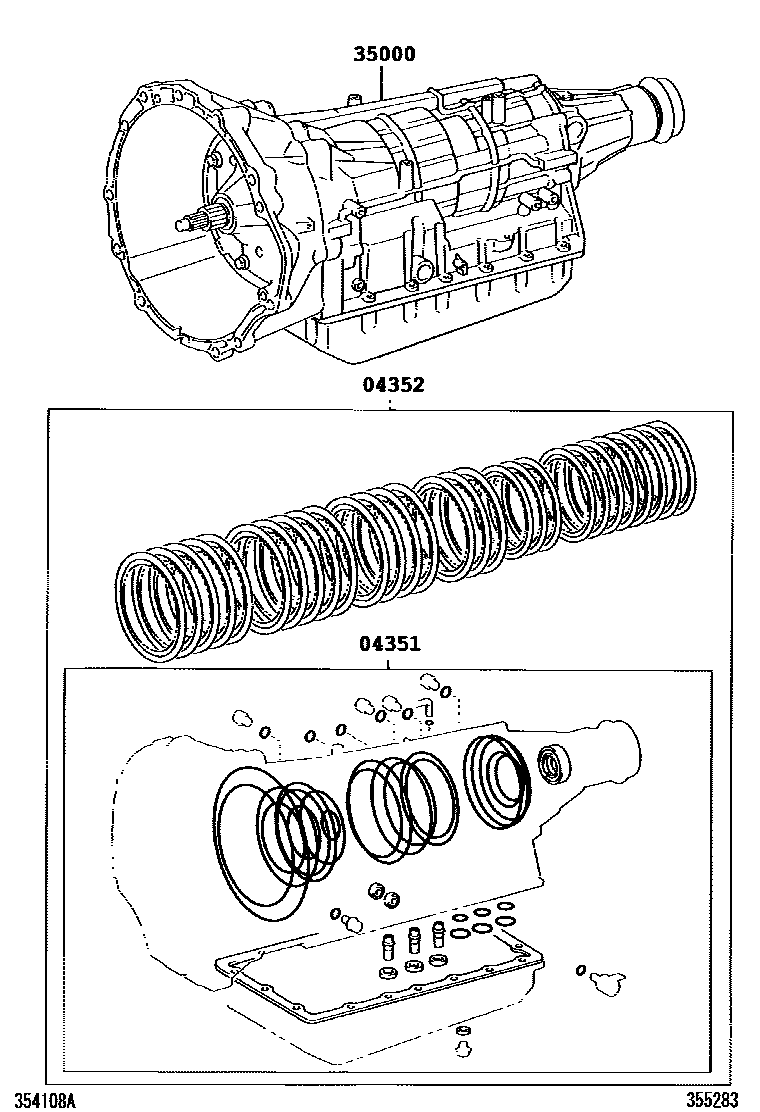

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A750E 0002 1A750F 0003 1A340E 0004 1A340F 0005 1A750E 0006 1A750F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-35201iGRN21#200211-200408

main04351-35440iGRN210200408-200504

main04351-60210iUZN21#200208-200408

main04351-60470iGRN215,UZN21#200408-200508

04352KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04352-35250iGRN21#200211-200408

main04352-35400iUZN210200408-200508

main04352-35410iUZN215200408-200508

main04352-60040iUZN21#200208-200408

main04352-60330iGRN21#200408-200508

35000TRANSMISSION ASSY, AUTOMATIC

main35000-0W030iGRN215200811

A750F,(L)

main35000-35A00iUZN210200308-200408

A750E

main35000-35A10iUZN215200308-200408

A750F

main35000-35A40iUZN210200508

A750E

main35000-35A50iUZN215200508

A750F

main35000-35A60iGRN210200508

A750E

main35000-35A70iGRN215200408-200508

A750F

main35000-3G400iGRN210200211-200408

A340E

main35000-3G460iUZN210200208-200308

A750E

main35000-3G470iUZN215200208-200308

A750F

main35000-6A110iGRN215200211-200408

A340F

3 parts on this diagram · 6 diagrams in section
