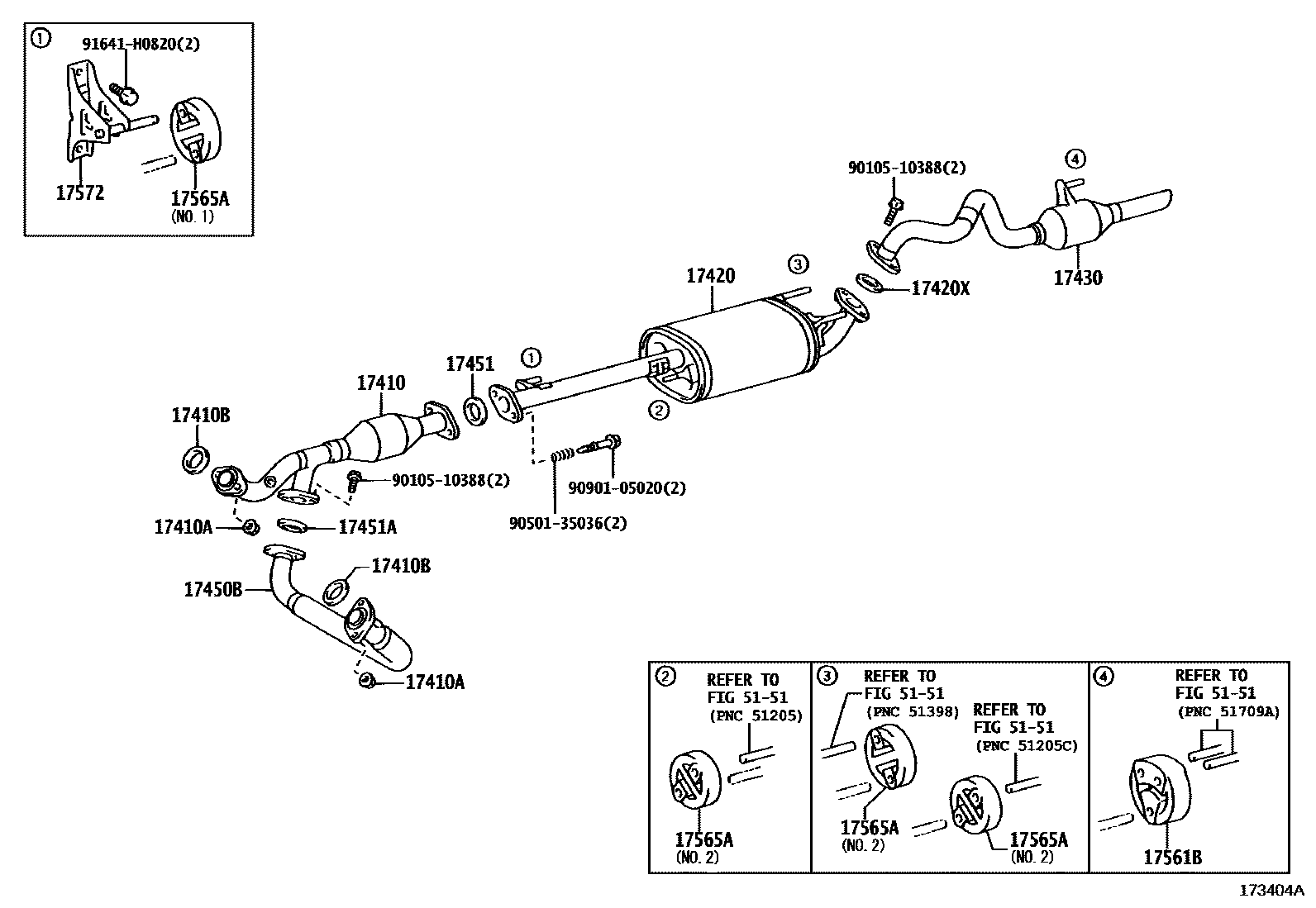

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-31380i1GRFE..GRN21#200211-200408

*114=TOYOTA/T97/Y

main17410-31450i1GRFE..GRN21#200408-200508

*114=TOYOTA/T37/Y

main17410-50360i2UZFE..UZN21#200208-200411

main17410-50450i2UZFE..UZN21#200411-200508

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×4i1GRFE..GRN21#200208-200408

17410BGASKET, EXHAUST PIPE

main90917-06089×2i1GRFE,2UZFE..GRN21#,UZN21#..5FC200208-200508

17420PIPE ASSY, EXHAUST, CENTER

main17420-50220i1GRFE..GRN21#200208-200408

main17420-50260i2UZFE..UZN21#200508

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06072i1GRFE,2UZFE..GRN21#,UZN21#200508

17430PIPE ASSY, EXHAUST, TAIL

main17430-31410i1GRFE..GRN21#..5FC200211-200508

main17430-50220i2UZFE..UZN21#200208-200508

17450BPIPE ASSY, EXHAUST, FRONT NO.2

main17450-31010i1GRFE..GRN21#200211-200408

*114=TOYOTA/T26/Y

main17450-31030i1GRFE..GRN21#200408-200508

*114=TOYOTA/T38/Y

main17450-50090i2UZFE..UZN21#200208-200411

main17450-50120i2UZFE..UZN21#200411-200505

main17450-50121i2UZFE..UZN21#200505-200508

17451GASKET, EXHAUST PIPE

main17451-74051i1GRFE,2UZFE..GRN21#,UZN21#200508

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06083i1GRFE..GRN21#200208-200408

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-73020i1GRFE..GRN21#200208-200408

main17565-31050i1GRFE,2UZFE..GRN21#,UZN21#200508

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×3i1GRFE,2UZFE..GRN21#,UZN21#200508

NO.2

main17565-46040×3i1GRFE,2UZFE..GRN21#,UZN21#..5FC200208-200508

NO.2

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-50140i1GRFE,2UZFE..GRN21#,UZN21#200208-200508

5151

9010510388

main90105-10388

9050135036

main90501-35036

9090105020

main90901-05020

91641H0820

main91641-H0820

17 parts on this diagram · 2 diagrams in section
