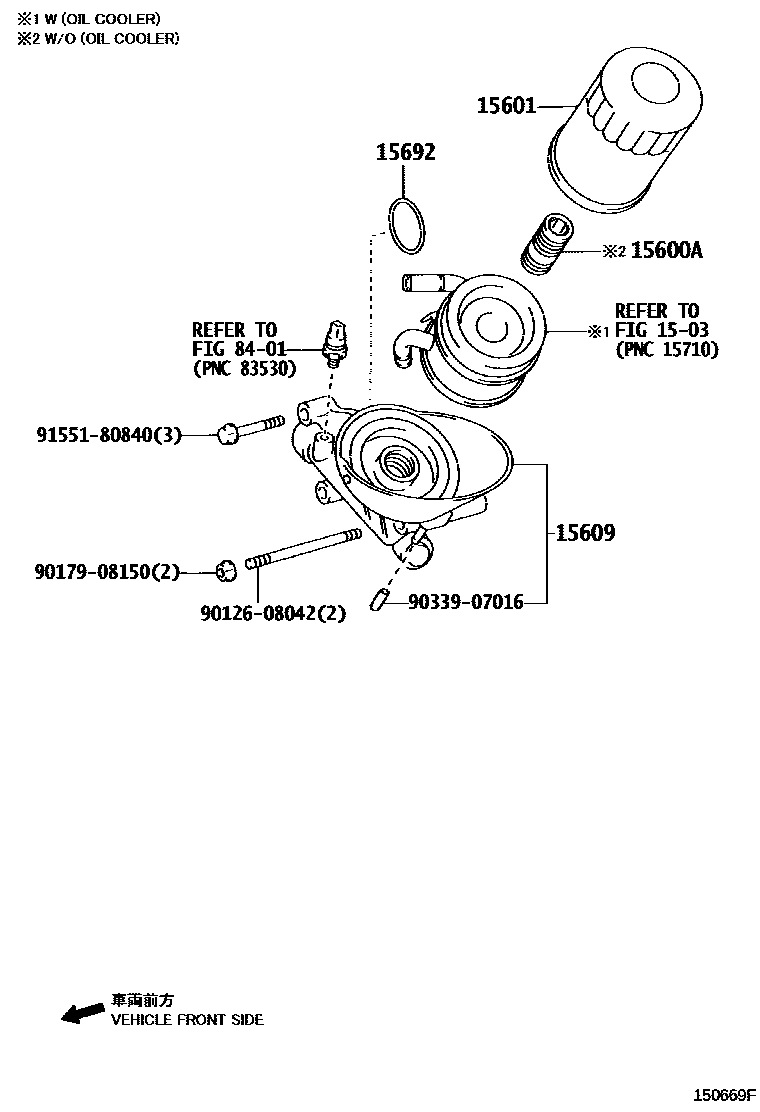

OIL FILTER

0001 1 0002 1

1503ENGINE OIL COOLER

→ Go to FIG 15-03

15600FILTER ASSY, OIL

main90915-20004i2UZFE..UZN21#200508

15600AUNION(FOR OIL FILTER)

main90404-19013i1GRFE..GRN21#200211-200408

main90404-19021i1GRFE..GRN21#200806

15601FILTER SUB-ASSY, OIL

main90915-20004i1GRFE..GRN21#200211-200408

15609BRACKET SUB-ASSY, OIL FILTER

main15609-50130i2UZFE..UZN21#200508

main15670-31010i1GRFE..GRN21#200211-200408

15692GASKET, OIL FILTER BRACKET

main15692-31010i1GRFE..GRN21#200211-200408

main15692-50020i2UZFE..UZN21#200208-200508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9012608042

main90126-08042

9017908150

main90179-08150

9033907016

main90339-07016

9155180840

main91551-80840

11 parts on this diagram · 2 diagrams in section
