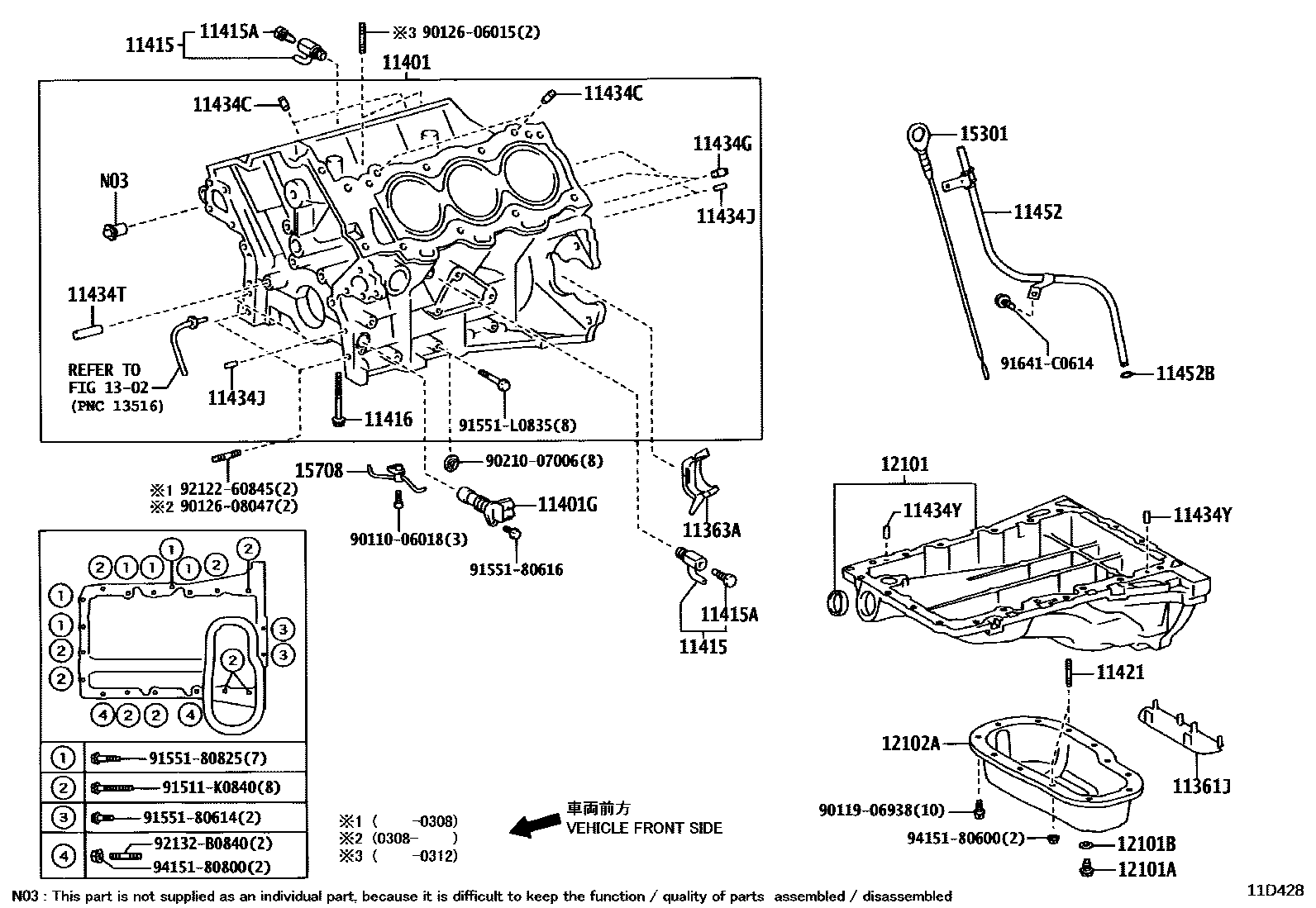

CYLINDER BLOCK

0001 1 0002 1 0003 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-31040i1GRFE..GRN21#200508

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31020i1GRFE..GRN21#..5FC200211-200508

11401BLOCK SUB-ASSY, CYLINDER

main11401-39575i1GRFE..GRN21#200211-200408

main11401-39695i1GRFE..GRN21#200408-200508

main11401-59755i2UZFE..UZN21#200208-200411

main11401-59776i2UZFE..UZN21#200411-200505

main11401-59777i2UZFE..UZN21#200508-200703

main11401-59778i2UZFE..UZN21#200703-200908

main11401-80790i1GRFE..GRN21#200906-200908

11401GSENSOR, CRANK POSITION

main90919-05057i1GRFE..GRN21#200211-200508

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095×2i2UZFE..UZN21#200208-200508

main90910-09125×2i1GRFE..GRN21#..5FC200211-200503

main90910-09129×2i1GRFE..GRN21#200503-200508

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087×2i1GRFE..GRN21#; 2UZFE..UZN21#200508

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02072×16i1GRFE..GRN21#200211-200408

11421BOLT, STUD(FOR OIL PAN)

main90126-06015×2i1GRFE..GRN21#200211-200312

main90126-06028×2i1GRFE..GRN21#200312-200408

main90126-08030×2i2UZFE..UZN21#200411-200508

NO.1

main90126-08039×2i2UZFE..UZN21#200508

NO.2

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×4i1GRFE..GRN21#200508-200908

L=18,OD=8

main90253-16001×4i2UZFE..UZN21#200508

L=20,OD=16

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113×2i1GRFE..GRN21#200312-200408

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90250-04097×4i1GRFE..GRN21#200508-200908

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i1GRFE..GRN21#200312-200408

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097×2i1GRFE..GRN21#200211-200408

11452GUIDE, OIL LEVEL GAGE

main11452-31030i1GRFE..GRN21#200211-200408

main11452-50160i2UZFE..UZN21#200208-200411

main11452-50190i2UZFE..UZN21#200508

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1GRFE..GRN21#200211-200408

main96723-19010i1GRFE..GRN21#200904

12101PAN SUB-ASSY, OIL

main12101-31070i1GRFE..GRN21#200211-200407

main12101-31071i1GRFE..GRN21#200407-200408

main12111-50130i2UZFE..UZN21#200208-200411

main12111-50131i2UZFE..UZN21#200411-200508

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1GRFE..GRN21#..5FC200211-200508

main90341-12023i2UZFE..UZN21#200208-200508

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2UZFE..UZN21#200208-200508

12102APAN SUB-ASSY, OIL, NO.2

main12102-31010i1GRFE..GRN21#200211-200408

main12102-50130i2UZFE..UZN21#200208-200508

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31060i1GRFE..GRN21#200508

main15301-50120i2UZFE..UZN21#200508

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-31020×3i1GRFE..GRN21#200211-200408

main15790-50010×4i2UZFE..UZN21#200411-200508

9011006018

main90110-06018

9011906938

main90119-06938

9012606015

main90126-06015

9012608047

main90126-08047

9021007006

main90210-07006

91511K0840

main91511-K0840

9155180614

main91551-80614

9155180616

main91551-80616

9155180825

main91551-80825

91551L0835

main91551-L0835

91641C0614

main91641-C0614

9212260845

main92122-60845

92132B0840

main92132-B0840

9415180600

main94151-80600

9415180800

main94151-80800

37 parts on this diagram · 3 diagrams in section
