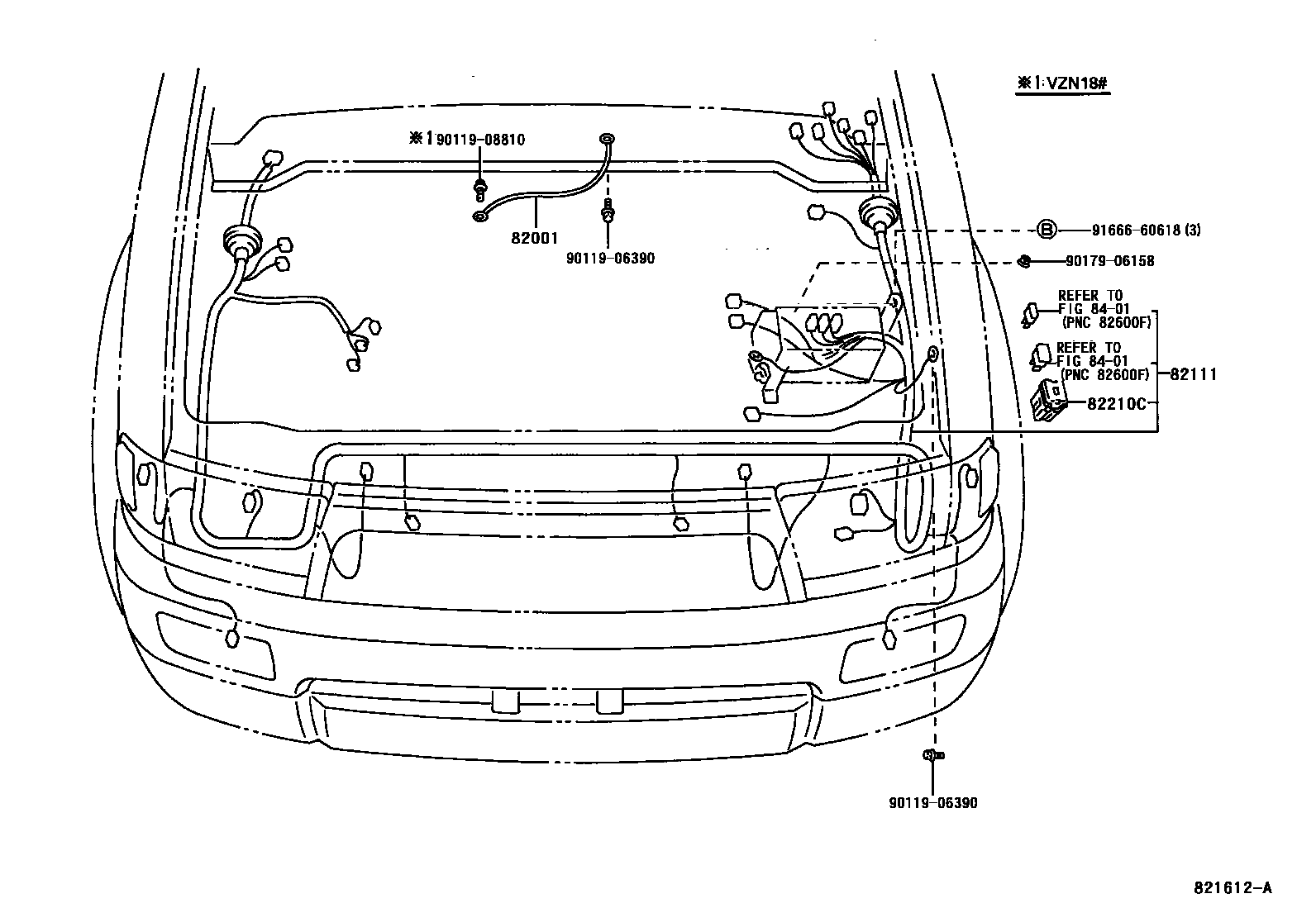

WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE ROOM WIRE 0003 1ENGINE WIRE 0004 1ENGINE WIRE 0005 1COWL WIRE 0006 1ROOF,FLOOR & DOOR WIRE 0007 1CLAMP 0008 1CLAMP 0009 1CLAMP 0010 1DIODES 0011 1CONNECTOR

82001CABLE, BOND, NO.1

main90980-07380iRZN18#199511-200008

main90980-07381iVZN18#199511

82111WIRE, ENGINE ROOM MAIN

main82111-3D630iRZN18#199511-199708

main82111-3D631iRZN18#199708-199807

main82111-3D640iRZN18#199511-199708

W(ABS)

main82111-3D641iRZN18#,VZN180199708-199807

W(ABS)

main82111-3D650iRZN185199511-199708

W(*ADD)

main82111-3D651iRZN185199708-199807

W(*ADD)

main82111-3D660iRZN185199511-199708

W(ABS & *ADD)

main82111-3D661iRZN185,VZN185199708-199807

W(ABS & *ADD)

main82111-3D670iRZN185199511-199708

CANADA SPEC

main82111-3D671iRZN185199708-199807

CANADA SPEC

main82111-3D680iRZN185199511-199708

CANADA SPEC & W(ABS)

main82111-3D681iRZN185199708-199807

CANADA SPEC & W(ABS)

main82111-3D690iRZN185199511-199708

CANADA SPEC & W(*ADD)

main82111-3D691iRZN185199708-199807

CANADA SPEC & W(*ADD)

main82111-3D700iRZN185199511-199708

CANADA SPEC

main82111-3D700iVZN185199511-199708

CANADA SPEC & W(ABS & *ADD)

main82111-3D701iRZN185,VZN185199708-199807

CANADA SPEC & W(ABS & *ADD)

main82111-3G500iRZN18#199807-200008

main82111-3G510iRZN18#,VZN180199807-199906

W(ABS)

main82111-3G520iRZN185199807-200008

W(*ADD)

main82111-3G530iRZN185,VZN185199807-199906

W(ABS & *ADD)

main82111-3G540iRZN185199807-199906

CANADA SPEC

main82111-3G550iVZN180199906-199908

W(ABS)

main82111-3G550iRZN185199807-199906

CANADA SPEC & W(ABS)

main82111-3G551iVZN180199908-200008

W(ABS)

main82111-3G560iRZN185199807-200008

CANADA SPEC & W(*ADD)

main82111-3G570iRZN185,VZN185199807-200008

CANADA SPEC & W(ABS & *ADD)

main82115-35180iVZN18#..SR5B200008

main82115-35190iVZN18#..LULI,SR5V200008

W(DAY TIME RUNNING LIGHT SYSTEM)

main82115-35190iVZN18#..LULI,SR5V200008

CANADA SPEC

82210CFUSIBLE LINK

main90982-08202iVZN18#199511-200008

60A,TERM.:MALE,YEL

main90982-08228iRZN185,VZN185199708-199807

50A,TERM.:MALE,RED

main90982-08246iRZN18#,VZN18#199511-199807

100A,TERM.:MALE,BLUE

main90982-08254iRZN18#,VZN18#199807

120A,TERM.:MALE,WHT,TAIHEIYO

main90982-08274iRZN18#,VZN18#199807

120A,TERM.:MALE,WHT,YAZAKI

main90982-08280iVZN18#..SR5B200008

30A,TERM.:FEMALE,PNK

main90982-08280iRZN18#;VZN18#..LULI,SR5V199511

30A,TERM.:FEMALE,PNK,YAZAKI

main90982-08281iRZN18#,VZN18#199511-200008

40A,TERM.:FEMALE,GRN,YAZAKI

main90982-08282iRZN18#,VZN18#199511-199807

50A,TERM.:FEMALE,RED,YAZAKI

main90982-08283iRZN18#,VZN18#199511

30A,TERM.:FEMALE,PNK,TAIHEIYO

main90982-08284iVZN18#199511-200008

40A,TERM.:FEMALE,GRN,TAIHEIYO

main90982-08285iRZN18#,VZN18#199511-199807

50A,FEMALE,RED,32VDC,TAIHEIYO

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906390

main90119-06390

9011908810

main90119-08810

9017906158

main90179-06158

9166660618

main91666-60618

8 parts on this diagram · 11 diagrams in section
