FRONT DOOR PANEL & GLASS

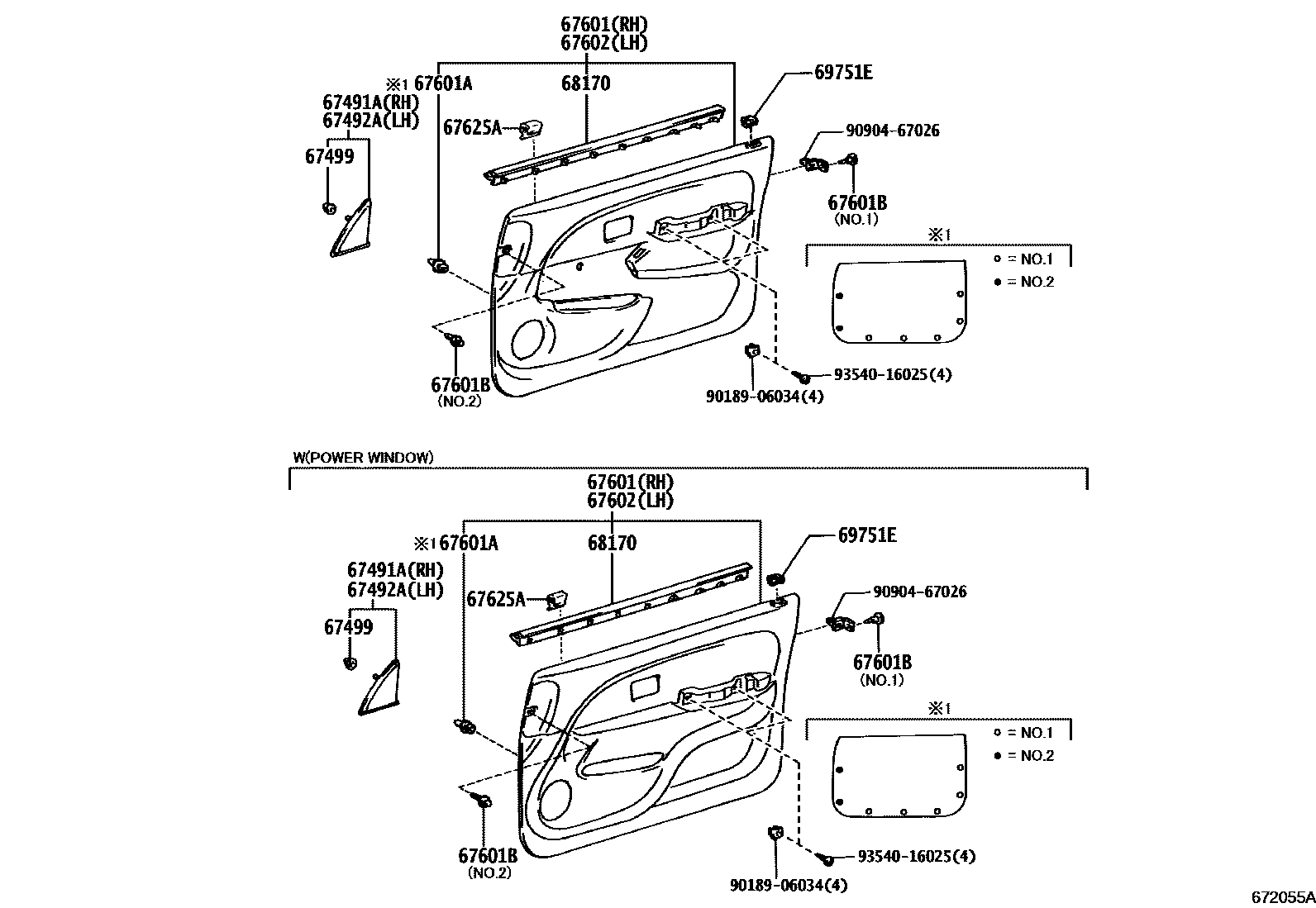

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-35010-C0i199511
W(6 SPEAKER),BLACK,TRIM4#
main67491-35010-C0i199511
W(6 SPEAKER),BLACK,TRIM1#,4#
main67491-35020-C0i199511
BLACK,TRIM4#
main67491-35020-C0i199511
BLACK,TRIM1#,4#
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-35010-C0i199511
W(6 SPEAKER),BLACK,TRIM1#,4#
main67492-35010-C0i199511
W(6 SPEAKER),BLACK,TRIM4#
main67492-35020-C0i199511
BLACK,TRIM4#
main67492-35020-C0i199511
BLACK,TRIM1#,4#
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-89101i199511
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-3D120-B0i199708-200008
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(FA**/FB**/FW**)),MD.MOON MIST,TRIM1#
main67610-3D120-E0i199708-200008
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(FA**/FB**/FW**)),OAK,TRIM4#
main67610-3D130-B0i199708-200008
W(SPORT SEAT(FA**/FB**/FW**)),MD.MOON MIST,TRIM1#
main67610-3D130-E0i199708-200008
W(SPORT SEAT(FA**/FB**/FW**)),OAK,TRIM4#
main67610-3D250-B0i199807-199906
MD.MOON MIST,TRIM1#
main67610-3D250-B3i199906-200008
MD.MOON MIST,TRIM1#
main67610-3D250-E0i199807-199906
MD.OAK,TRIM4#
main67610-3D250-E3i199906-200008
OAK,TRIM4#
main67610-3D430-B0i200008-200107
TRIM = TYPE B-*104,CHARCOAL,TRIM1#
sub67610-3D431
main67610-3D430-E0i200008-200107
TRIM = TYPE B-*104,OAK,TRIM4#
sub67610-3D431
main67610-3D431-B0i200107
TRIM = TYPE B OR TYPE C-*104,CHARCOAL,TRIM1#
main67610-3D431-E0i200107
TRIM = TYPE B OR TYPE C-*104,OAK,TRIM4#
main67610-3D440-B0i200008-200107
TRIM = TYPE B OR TYPE C-*104 & W(POWER WINDOW),CHARCOAL,TRIM1#
sub67610-3D441
main67610-3D440-E0i200008-200107
TRIM = TYPE B OR TYPE C-*104 & W(POWER WINDOW),OAK,TRIM4#
sub67610-3D441
main67610-3D441-B0i200107
TRIM = TYPE B OR TYPE C-*104 & W(POWER WINDOW),CHARCOAL,TRIM1#
main67610-3D441-B1i200107
TRIM = TYPE D-*104 & W(POWER WINDOW),XXXX,TRIM1#,TRIM = FQ**,FR**
main67610-3D441-E0i200107
TRIM = TYPE B OR TYPE C-*104 & W(POWER WINDOW),OAK,TRIM4#
main67650-35230-B0i199511-199708
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(FW**)),MD.MOON MIST,TRIM1#
main67650-35230-E0i199511-199708
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(FW**)),OAK,TRIM4#
main67650-35270-B0i199511-199807
MD.MOON MIST,TRIM1#
main67650-35270-E0i199511-199807
OAK,TRIM4#
main67650-35280-E0i199511-199807
OAK,TRIM4#
sub67650-35280
main67650-35280-E0i199511-199807
W(POWER DOOR LOCK & POWER WINDOW & LEATHER SPORT SEAT(LG**)),OAK,TRIM4#
sub67650-35280
main67650-35280-E1i199807-200008
OAK,TRIM4#
sub67650-35280
main67650-35280-E1i199807-200008
W(POWER DOOR LOCK & POWER WINDOW & LEATHER SPORT SEAT(LA**/LB**/LG**)),OAK,TRIM4#
sub67650-35280
main67650-35280-E7i200008
TRIM = TYPE A-*104 & W(POWER WINDOW),OAK,TRIM4#
sub67650-35280
main67650-35310-B0i199511-199807
W(ELECTROMAGNETIC LOCK),MD.MOON MIST,TRIM1#
main67650-35310-E0i199511-199807
W(ELECTROMAGNETIC LOCK),OAK,TRIM4#
main67650-35320-B0i199511-199807
W(POWER WINDOW & ELECTROMAGNETIC LOCK),MD.MOON MIST,TRIM1#
main67650-35320-E0i199511-199807
W(POWER WINDOW & ELECTROMAGNETIC LOCK),OAK,TRIM4#
main67650-35330-B0i199511-199708
W(SPORT SEAT(FW**)),MD.MOON MIST,TRIM1#
main67650-35330-E0i199511-199708
W(SPORT SEAT(FW**)),OAK,TRIM4#
main67650-35340-E0i199511-199807
W(LEATHER SPORT SEAT(LG**)),OAK,TRIM4#
sub67650-35340
main67650-35340-E1i199807-200008
W(LEATHER SPORT SEAT(LA**/LB**/LG**)),OAK,TRIM4#
sub67650-35340
main67650-35340-E5i200008
TRIM = TYPE A-*104,OAK,TRIM4#
sub67650-35340
main67650-35510-B0i199608-199807
W(POWER DOOR LOCK & POWER WINDOW & HIGH FABRIC SEAT(YJ**)),MD.MOON MIST,TRIM1#
sub67650-35510
main67650-35510-B1i199807-200008
W(POWER WINDOW & POWER DOOR LOCK),MD.MOON MIST,TRIM1#
sub67650-35510
main67650-35510-B1i199807-200008
W(POWER DOOR LOCK & POWER WINDOW & HIGH FABRIC SEAT(FC**/YJ**)),MD.MOON MIST,TRIM1#
sub67650-35510
main67650-35510-E0i199608-199807
W(POWER DOOR LOCK & POWER WINDOW & HIGH FABRIC SEAT(YJ**)),OAK,TRIM4#
sub67650-35510
main67650-35510-E1i199807-200008
W(POWER WINDOW & POWER DOOR LOCK),OAK,TRIM4#
sub67650-35510
main67650-35510-E1i199807-200008
W(POWER DOOR LOCK & POWER WINDOW & HIGH FABRIC SEAT(FC**/YJ**)),OAK,TRIM4#
sub67650-35510
main67650-35520-B0i199608-199807
W(POWER DOOR LOCK & HIGH FABRIC SEAT(YJ**)),MD.MOON MIST,TRIM1#
sub67650-35520
main67650-35520-B1i199807-200008
W(POWER DOOR LOCK & HIGH FABRIC SEAT(FC**/YJ**)),MD.MOON MIST,TRIM1#
sub67650-35520
main67650-35520-B1i199807-199906
W(POWER DOOR LOCK),MD.MOON MIST,TRIM1#
sub67650-35520
main67650-35520-E0i199608-199807
W(POWER DOOR LOCK & HIGH FABRIC SEAT(YJ**)),OAK,TRIM4#
sub67650-35520
main67650-35520-E1i199807-199906
W(POWER DOOR LOCK),OAK,TRIM4#
sub67650-35520
main67650-35520-E1i199807-200008
W(POWER DOOR LOCK & HIGH FABRIC SEAT(FC**/YJ**)),OAK,TRIM4#
sub67650-35520
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-12030i199607
NO.2
main67771-12050i199511-199602
main67771-12050i199602-199910
NO.1
main67771-22040i199602-199607
NO.2
main67771-28020i199910
NO.1
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07066-B4i199511-200008
MD.MOON MIST,TRIM1#,NO.1
sub90467-07066
main90467-07066-E0i199511
OAK,TRIM4#,NO.1
sub90467-07066
main90467-07066-P1i200008
DK.CHARCOAL,TRIM1#,NO.1
sub90467-07066
main90467-07085-B2i199511-200008
MD.MOON MIST,TRIM1#,NO.2
sub90467-07085
main90467-07085-B3i200008
DK.CHARCOAL,TRIM1#,NO.2
sub90467-07085
main90467-07085-E4i199511
OAK,TRIM4#,NO.2
sub90467-07085
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67050-35010-B0i199511-199807
W(POWER WINDOW & ELECTROMAGNETIC LOCK),MD.MOON MIST,TRIM1#
main67050-35010-E0i199511-199807
W(POWER WINDOW & ELECTROMAGNETIC LOCK),OAK,TRIM4#
main67050-35020-B0i199511-199708
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(FW**)),MD.MOON MIST,TRIM1#
main67050-35020-E0i199511-199708
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(FW**)),OAK,TRIM4#
main67050-35030-B0i199608-199807
W(POWER DOOR LOCK & POWER WINDOW & HIGH FABRIC SEAT(YJ**)),MD.MOON MIST,TRIM1#
sub67050-35030
sub67660-35150
main67050-35030-B1i199807-200008
W(POWER WINDOW & POWER DOOR LOCK),MD.MOON MIST,TRIM1#
sub67050-35030
sub67660-35150
main67050-35030-B1i199807-200008
W(POWER DOOR LOCK & POWER WINDOW & HIGH FABRIC SEAT(FC**/YJ**)),MD.MOON MIST,TRIM1#
sub67050-35030
sub67660-35150
main67050-35030-E0i199608-199807
W(POWER DOOR LOCK & POWER WINDOW & HIGH FABRIC SEAT(YJ**)),OAK,TRIM4#
sub67050-35030
sub67660-35150
main67050-35030-E1i199807-200008
W(POWER WINDOW & POWER DOOR LOCK),OAK,TRIM4#
sub67050-35030
sub67660-35150
main67050-35030-E1i199807-200008
W(POWER DOOR LOCK & POWER WINDOW & HIGH FABRIC SEAT(FC**/YJ**)),OAK,TRIM4#
sub67050-35030
sub67660-35150
main67050-35040-B0i199608-199807
W(POWER DOOR LOCK & HIGH FABRIC SEAT(YJ**)),MD.MOON MIST,TRIM1#
sub67050-35040
main67050-35040-B1i199807-199906
W(POWER DOOR LOCK),MD.MOON MIST,TRIM1#
sub67050-35040
main67050-35040-B1i199807-200008
W(POWER DOOR LOCK & HIGH FABRIC SEAT(FC**/YJ**)),MD.MOON MIST,TRIM1#
sub67050-35040
main67050-35040-E0i199608-199807
W(POWER DOOR LOCK & HIGH FABRIC SEAT(YJ**)),OAK,TRIM4#
sub67050-35040
main67050-35040-E1i199807-200008
W(POWER DOOR LOCK & HIGH FABRIC SEAT(FC**/YJ**)),OAK,TRIM4#
sub67050-35040
main67050-35040-E1i199807-199906
W(POWER DOOR LOCK),OAK,TRIM4#
sub67050-35040
main67050-35530-B0i199708-200008
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(FA**/FB**/FW**)),MD.MOON MIST,TRIM1#
main67050-35530-E0i199708-200008
W(POWER DOOR LOCK & POWER WINDOW & SPORT SEAT(FA**/FB**/FW**)),OAK,TRIM4#
main67050-35540-B0i199708-200008
W(SPORT SEAT(FA**/FB**/FW**)),MD.MOON MIST,TRIM1#
sub67050-35540
main67050-35540-E0i199708-200008
W(SPORT SEAT(FA**/FB**/FW**)),OAK,TRIM4#
sub67050-35540
main67620-3D210-B0i199511-199807
MD.MOON MIST,TRIM1#
main67620-3D210-E0i199511-199807
OAK,TRIM4#
main67620-3D220-E0i199511-199807
OAK,TRIM4#
sub67620-3D220
main67620-3D220-E0i199511-199807
W(POWER DOOR LOCK & POWER WINDOW & LEATHER SPORT SEAT(LG**)),OAK,TRIM4#
sub67620-3D220
main67620-3D220-E1i199807-200008
OAK,TRIM4#
sub67620-3D220
main67620-3D220-E1i199807-200008
W(POWER DOOR LOCK & POWER WINDOW & LEATHER SPORT SEAT(LG**)),OAK,TRIM4#
sub67620-3D220
main67620-3D220-E7i200008
TRIM = TYPE A-*104 & W(POWER WINDOW),OAK,TRIM4#
sub67620-3D220
main67620-3D250-B0i199511-199708
W(SPORT SEAT(FW**)),MD.MOON MIST,TRIM1#
main67620-3D250-E0i199511-199708
W(SPORT SEAT(FW**)),OAK,TRIM4#
main67620-3D260-E0i199511-199807
W(LEATHER SPORT SEAT(LG**)),OAK,TRIM4#
sub67620-3D260
main67620-3D260-E1i199807-200008
W(LEATHER SPORT SEAT(LA**/LB**/LG**)),OAK,TRIM4#
sub67620-3D260
main67620-3D260-E5i200008
TRIM = TYPE A-*104,OAK,TRIM4#
sub67620-3D260
main67620-3D290-B0i199511-199807
W(ELECTROMAGNETIC LOCK),MD.MOON MIST,TRIM1#
main67620-3D290-E0i199511-199807
W(ELECTROMAGNETIC LOCK),OAK,TRIM4#
main67620-3D330-B0i200008-200107
TRIM = TYPE B-*104,CHARCOAL,TRIM1#
sub67620-3D331
main67620-3D330-E0i200008-200107
TRIM = TYPE B-*104,OAK,TRIM4#
sub67620-3D331
main67620-3D331-B0i200107
TRIM = TYPE B OR TYPE C-*104,CHARCOAL,TRIM1#
main67620-3D331-E0i200107
TRIM = TYPE B OR TYPE C-*104,OAK,TRIM4#
main67620-3D340-B0i200008-200107
TRIM = TYPE B & W(POWER WINDOW),CHARCOAL,TRIM1#
sub67620-3D341
main67620-3D340-E0i200008-200107
TRIM = TYPE B & W(POWER WINDOW),OAK,TRIM4#
sub67620-3D341
main67620-3D341-B0i200107
TRIM = TYPE B OR TYPE C-*104 & W(POWER WINDOW),CHARCOAL,TRIM1#
sub67620-3D171
main67620-3D341-B1i200107
TRIM = TYPE D-*104 & W(POWER WINDOW),XXXX,TRIM1#
sub67620-3D171
main67620-3D341-E0i200107
TRIM = TYPE B OR TYPE C-*104 & W(POWER WINDOW),OAK,TRIM4#
sub67620-3D171
main67660-35160-B0i199807-199906
MD.MOON MIST,TRIM1#
main67660-35160-B3i199906-200008
MD.MOON MIST,TRIM1#
main67660-35160-E0i199807-199906
MD.OAK,TRIM4#
main67660-35160-E3i199906-200008
OAK,TRIM4#
67625ABRACKET, FRONT DOOR TRIM, NO.1
main67625-35010i199603
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-35030i199511
69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-35030-B0i199511-200008
MD.MOON MIST,TRIM1#
main69751-35030-B1i200008
DK.CHARCOAL,TRIM1#
main69751-35030-E0i199511
OAK,TRIM4#
9018906034
main90189-06034
9090467026
main90904-67026
9354016025
main93540-16025

13 parts on this diagram · 3 diagrams in section
