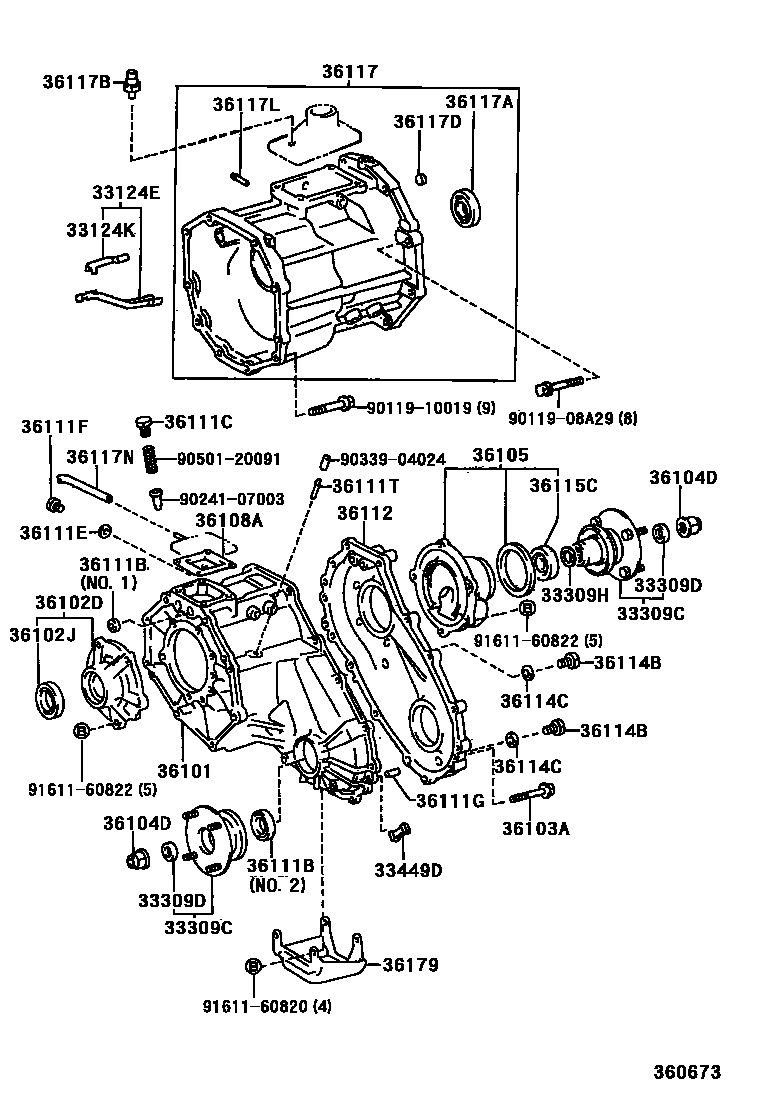

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33106-35020iRZN185..5F199511-200008

main33124-35100iVZN185..5F199511-200008

33124KCLAMP OIL RECEIVER(FOR TRANSFER)

main90463-08260iRZN185..5F199511-200008

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35091iRZN185,VZN185199511

RR

main33309-35100iRZN185,VZN185199511

FR

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001×2iRZN185,VZN185199511

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35010×2iRZN185,VZN185199511

N=30,OD=38

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iRZN185,VZN185199511

36101CASE SUB-ASSY, TRANSFER

main36111-35060iRZN185,VZN185199511-199807

main36111-35070iVZN185..LULI199807-200008

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iRZN185..4FC199511-200008

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35031iRZN185,VZN185199511-200106

main36102-35032iVZN185200106

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-40021iRZN185,VZN185199511

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28×12iRZN185,VZN185199511

*8-1.25PX55-30

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016×2iRZN185,VZN185199511

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-35040iRZN185,VZN185199511

36108ADEFLECTOR SUB-ASSY, BREATHER OIL

main36108-35030iRZN185..4FC199511-199803

main36108-35031iRZN185..4FC199803-200008

main36108-35060iRZN185..5F;VZN185..SR5V199511-199807

main36108-35070iVZN185200008

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-15008iRZN185,VZN185..SR5B,SR5V; VZN185..LULI199511-199807

NO.1

main90311-41008iRZN185,VZN185199511-200207

NO.2

main90311-41011iVZN185200207-200208

NO.2

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iRZN185,VZN185199511

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iVZN185..LULI;RZN185,VZN185..5F199511-199807

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iVZN185..LULI;RZN185,VZN185..5F199511-199807

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×2iRZN185,VZN185199511

L=14,OD=10

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iRZN185,VZN185199511

36112CASE, TRANSFER, REAR

main36112-35040iRZN185,VZN185..SR5B,SR5V199511-200008

main36112-35050iVZN185..LULI199511-199807

main36112-35060iVZN185..LULI199807-200008

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006×3iRZN185..5F199511-200008

W/O(NEUTRAL & LOW SWITCH)

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008×3iRZN185..5F199511-200008

W/O(NEUTRAL & LOW SWITCH)

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iRZN185,VZN185199511

36117ADAPTER, TRANSFER

main36107-35160iVZN185..5F199511-200008

main36107-35170iRZN185..5F199511-200008

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-40007iRZN185,VZN185..5F199511-200008

36117BPLUG, BREATHER(FOR TRANSFER ADAPTER)

main90930-03075iVZN185..5F199511-200008

main90930-03114iRZN185..5F199511-200008

36117DPLUG(FOR TRANSFER ADAPTER)

main90331-21003iRZN185..5F199511-200008

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iRZN185,VZN185199511

36117NHOSE(FOR TRANSFER ADAPTER)

main90447-08126iRZN185,VZN185..5F199511-200008

main90904-45005iRZN185,VZN185..4FC199511

36179PROTECTOR, TRANSFER CASE LOWER

main36179-35010iRZN185,VZN185199511

9011908A29

main90119-08A29

9011910019

main90119-10019

9024107003

main90241-07003

9033904024

main90339-04024

9050120091

main90501-20091

9161160820

main91611-60820

9161160822

main91611-60822

38 parts on this diagram · 5 diagrams in section
