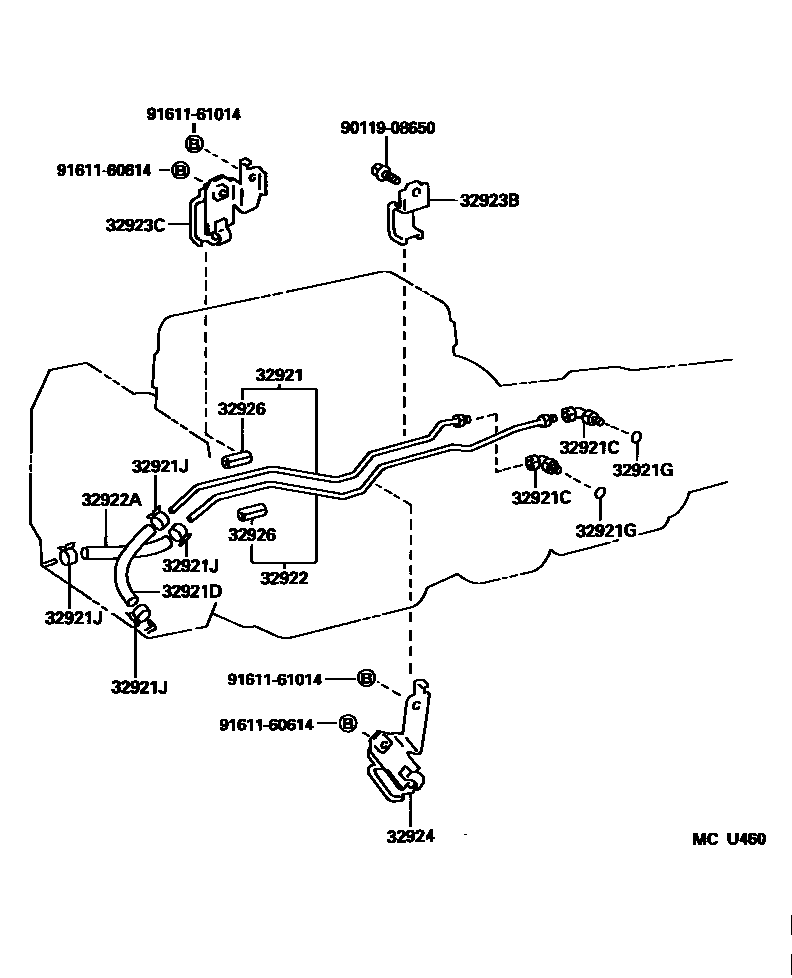

OIL COOLER & TUBE (ATM)

0001 1A340E,A340F 0002 1A340E,A340F

32921TUBE, OIL COOLER INLET, NO.1

main32921-35260iRZN18#..4FC199511-200008

main32921-35270iVZN18#..4FC199511

32921CUNION(FOR OIL COOLER TUBE)

main90407-16012iRZN18#,VZN18#..4FC199511

INLET

main90904-07001iRZN18#,VZN18#..4FC199511

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-35260iVZN18#..4FC199511

main90445-17134iRZN18#..4FC199511-200008

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iRZN18#,VZN18#..4FC199511

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×4iRZN18#,VZN18#..4FC199511-199807

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-35290iRZN18#..4FC199511-200008

main32922-35300iVZN18#..4FC199511

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-35110iVZN18#..4FC199511

main90445-17103iRZN18#..4FC199511-200008

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32929-24060iRZN18#,VZN18#..4FC199511

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32909-34040iRZN18#..4FC199511-200008

main32909-35110iVZN18#..4FC..(SR5B,SR5V)199807

main32909-35120iVZN18#..4FC199511

W(AIR CONDITIONER)

32924CLAMP, OIL COOLER TUBE, NO.2

main32909-34030iRZN18#..4FC199511-200008

main32909-34050iVZN18#..4FC199511

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×6iRZN18#,VZN18#..4FC199511

L=35,ID=10

9011908650

main90119-08650

9161160614

main91611-60614

9161161014

main91611-61014

14 parts on this diagram · 2 diagrams in section
