TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

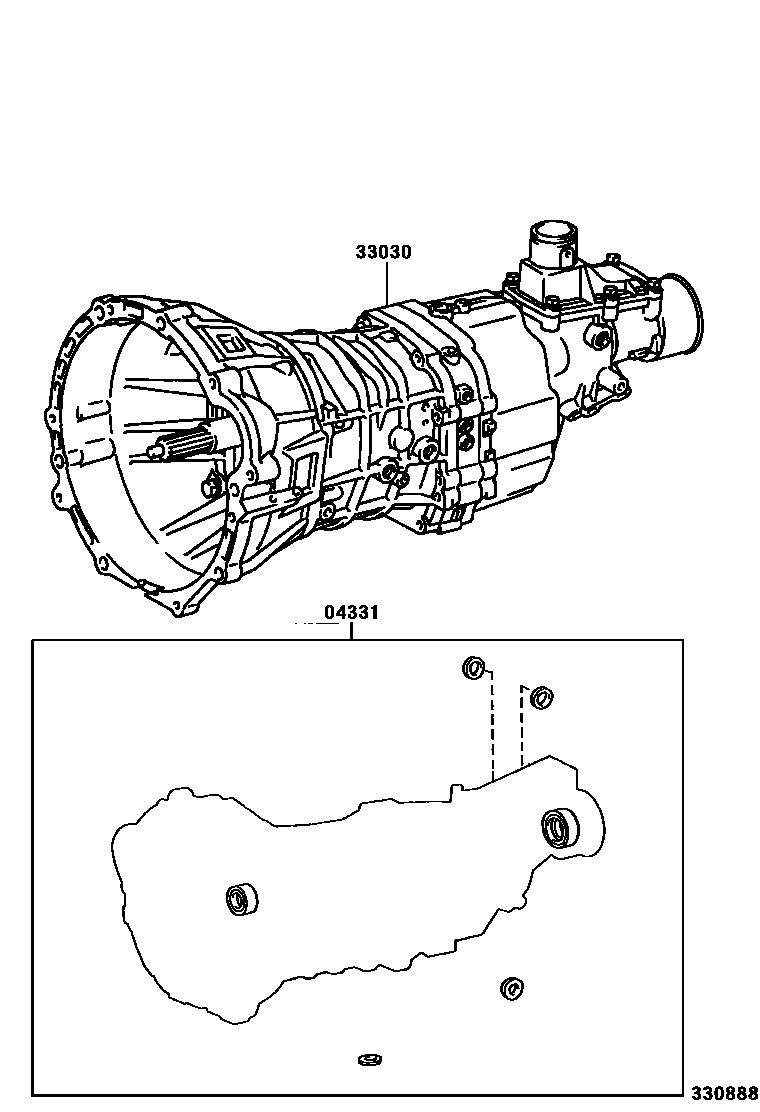

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-35250i199511-200008

main04331-35260i199511-200008

main04331-35270i199511-199906

main04331-35271i199906-200008

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-3D400i199511-199608

main33030-3D401i199608-200008

main33030-3D420i199511-200008

main33030-3D700i199511-200008

2 parts on this diagram · 3 diagrams in section
