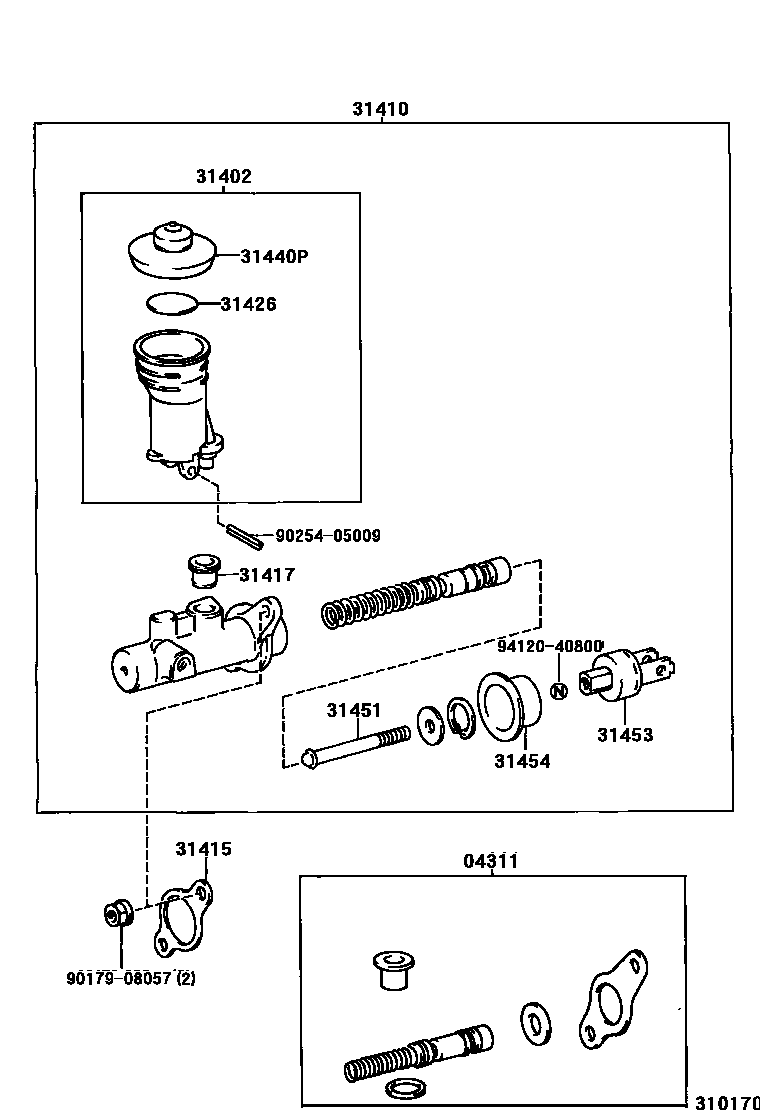

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iRZN18#,VZN185..5F199710-200008

main04311-60150iRZN18#,VZN185..5F199511-199710

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35120iRZN18#,VZN185..5F199511-200008

31410CYLINDER ASSY, CLUTCH MASTER

main31410-35310iRZN18#,VZN185..5F199511-200008

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iRZN18#,VZN185..5F199511-200008

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iRZN18#,VZN185..5F199511-200008

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iRZN18#,VZN185..5F199511-200008

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iRZN18#,VZN185..5F199511-200008

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040iRZN18#,VZN185..5F199511-200008

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-35011iRZN18#,VZN185..5F199511-200008

sub31404-35013

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iRZN18#,VZN185..5F199511-200008

9017908057

main90179-08057

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
