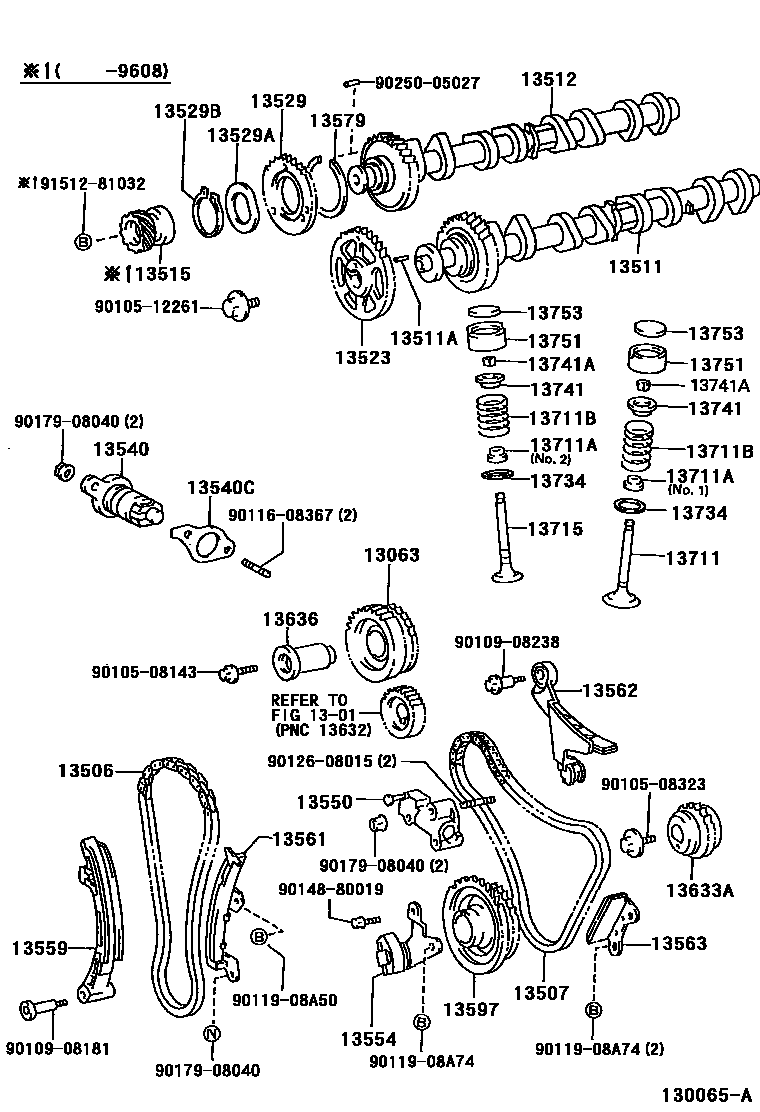

CAMSHAFT & VALVE
1301CRANKSHAFT & PISTON
13063GEAR SUB-ASSY, BALANCESHAFT DRIVE
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
CALIFORNIA SPEC
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
L=11,OD=6
13515GEAR, DISTRIBUTOR DRIVE
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13550TENSIONER ASSY, CHAIN, NO.2
13554DAMPER, CHAIN VIBRATION, NO.4
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13563DAMPER, CHAIN VIBRATION, NO.3
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13597SPROCKET, CRANKSHAFT TIMING, NO.2
13633AGEAR, BALANCESHAFT DRIVEN, NO.2
13636SHAFT, BALANCESHAFT DRIVE GEAR
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1
NO.1
NO.2
13711BSPRING, COMPRESSION(FOR INNER)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
9010508143
main90105-08143
9010508323
main90105-08323
9010512261
main90105-12261
9010908181
main90109-08181
9010908238
main90109-08238
9011608367
main90116-08367
9011908A50
main90119-08A50
9011908A74
main90119-08A74
9012608015
main90126-08015
9014880019
main90148-80019
9017908040
main90179-08040
9025005027
main90250-05027
9151281032
main91512-81032
46 parts on this diagram · 2 diagrams in section
