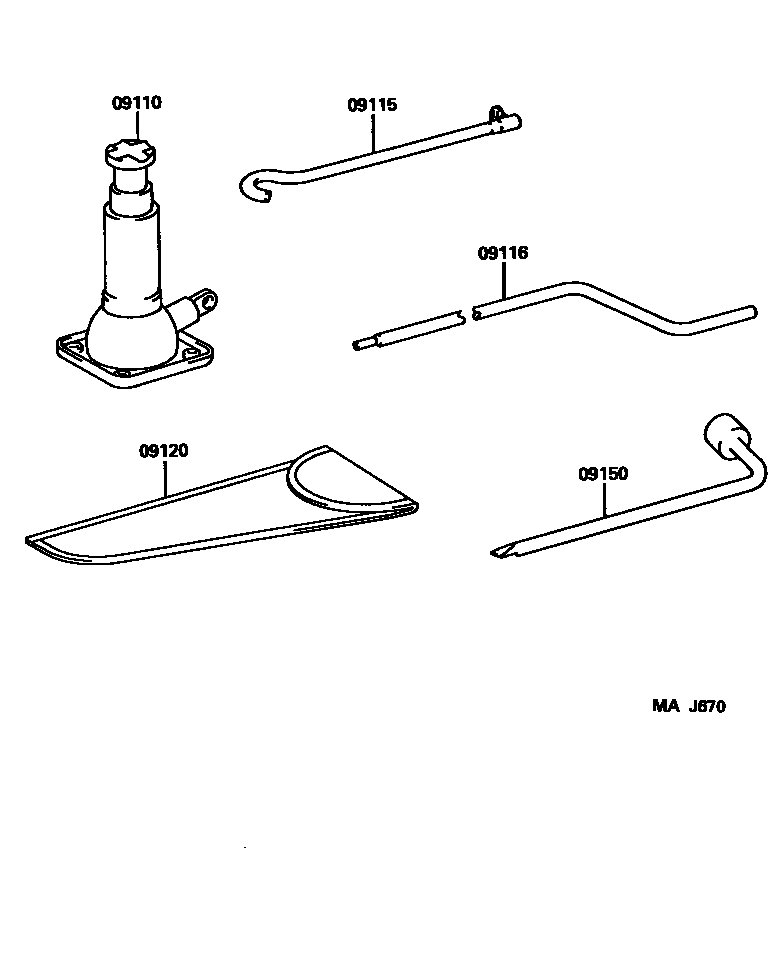

STANDARD TOOL

09110JACK ASSY

main09110-35190iRZN18#,VZN18#199608-199711

sub09111-35151

main09111-35140iRZN18#,VZN18#199511-199608

sub09110-35190

main09111-35151iRZN18#,VZN18#199711-199808

sub09111-60075

main09111-60075iRZN18#,VZN18#199808

09115ROD SUB-ASSY, JACK HANDLE

main09115-35100iRZN18#,VZN18#199511

09116LEVER, JACK HANDLE

main09116-35070iRZN18#,VZN18#199511

09120BAG, TOOL

main09120-32010iRZN18#,VZN18#199511

09150WRENCH, HUB NUT BOX

main09150-35070iRZN18#,VZN18#199511

5 parts on this diagram · 1 diagram in section
