SEAT & SEAT TRACK

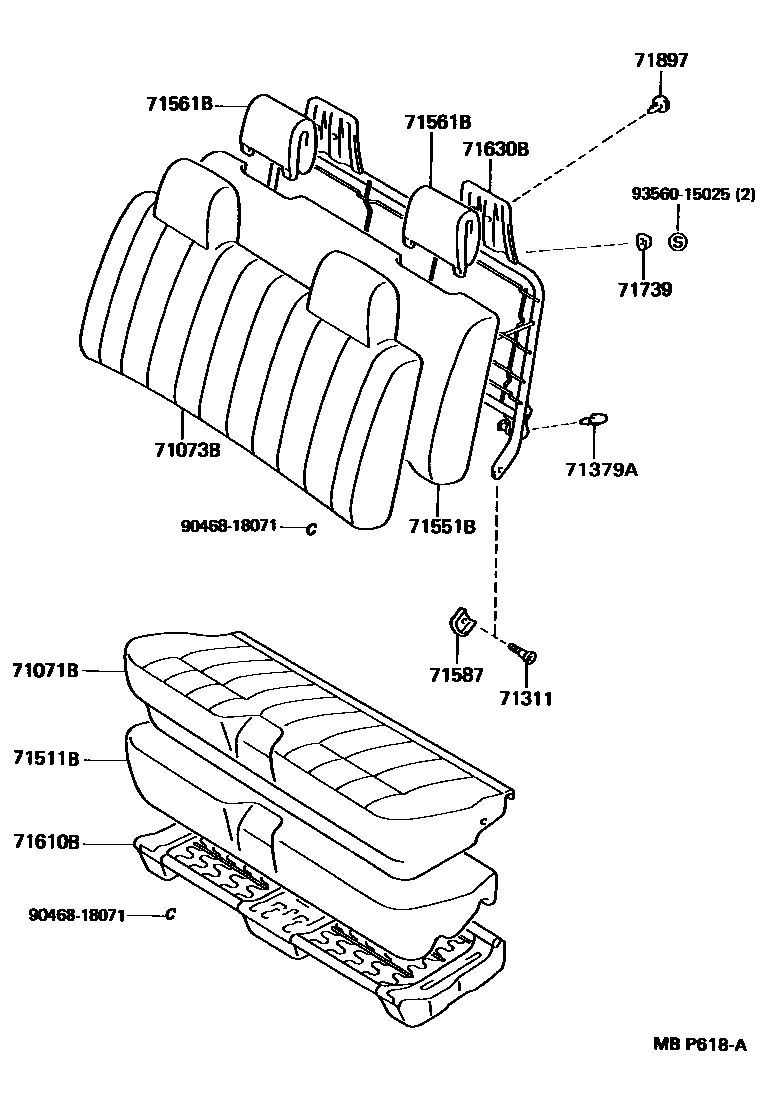

Parts diagram
71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71071-35090-B0i199110-199201
W(FABRIC SEAT),GRAY,TRIM1#,*221 OR *225
main71071-35090-J0i199201-199501
BLUE,TRIM8#,*221 OR *225
main71071-35220-B0i199201-199209
GRAY,TRIM1#,*221 OR *225
main71071-35220-J0i199201-199208
BLUE,TRIM8#,*221 OR *225
main71071-35630-B0i199110-199201
W(FABRIC SEAT),GRAY,TRIM1#,*220 OR *224
main71071-35630-J0i199201-199208
W(FABRIC SEAT),BLUE,TRIM8#,*220 OR *224
main71071-35640-B0i199110-199201
GRAY,TRIM1#,*220 OR *224
main71071-35640-J0i199206-199209
BLUE,TRIM8#,*220 OR *224
main71071-89357-02i198808-198908
RED,TRIM3#
main71071-89357-03i198808-198908
GRAY,TRIM1#
main71071-89357-04i198808-198908
BLUE,TRIM8#
main71071-89357-06i198808-198908
BROWN,TRIM4#
main71071-89358-02i198808-198908
W(FABRIC SEAT),RED,TRIM3#
main71071-89358-03i198808-198908
W(FABRIC SEAT),GRAY,TRIM1#
main71071-89358-04i198808-198908
W(FABRIC SEAT),BLUE,TRIM8#
main71071-89358-06i198808-198908
W(FABRIC SEAT),BROWN,TRIM4#
main71071-89397-02i198808-198908
RED,TRIM3#
main71071-89397-03i198808-198908
GRAY,TRIM1#
main71071-89397-04i198808-198908
BLUE,TRIM8#
main71071-89397-06i198808-198908
BROWN,TRIM4#
main71071-89436-02i198908-199108
RED,TRIM3#
main71071-89436-03i198908-199108
GRAY,TRIM1#
main71071-89436-04i198908-199108
BLUE,TRIM8#
main71071-89436-06i198908-199108
BROWN,TRIM4#
main71071-89437-02i198908-199108
W(FABRIC SEAT),RED,TRIM3#
main71071-89437-03i198908-199108
W(FABRIC SEAT),GRAY,TRIM1#
main71071-89437-04i198908-199108
W(FABRIC SEAT),BLUE,TRIM8#
main71071-89437-06i198908-199108
W(FABRIC SEAT),BROWN,TRIM4#
main71071-89438-02i198908-199008
RED,TRIM3#
main71071-89438-03i198908-199008
GRAY,TRIM1#
main71071-89438-04i198908-199008
BLUE,TRIM8#
main71071-89438-06i198908-199008
BROWN,TRIM4#
71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)
main71073-35090-B0i199108-199112
W(FABRIC SEAT),GRAY,TRIM1#,*220 OR *224
main71073-35090-J0i199108-199112
W(FABRIC SEAT),BLUE,TRIM8#,*220 OR *224
main71073-35300-B0i199108-199112
W(FABRIC SEAT),GRAY,TRIM1#,*221 OR *225
main71073-35300-J0i199108-199112
W(FABRIC SEAT),BLUE,TRIM8#,*221 OR *225
main71073-35310-B0i199108-199112
GRAY,TRIM1#,*221 OR *225
main71073-35310-J0i199108-199112
BLUE,TRIM8#,*221 OR *225
main71073-35430-B0i199108-199112
GRAY,TRIM1#,*220 OR *224
main71073-35430-J0i199108-199112
BLUE,TRIM8#,*220 OR *224
main71073-35620-B0i199201-199501
GRAY,TRIM1#,*220 OR *224
main71073-35620-J0i199201-199501
BLUE,TRIM8#,*220 OR *224
main71073-35630-B0i199201-199208
GRAY,TRIM1#,*221 OR *225; W(FABRIC SEAT),GRAY,TRIM1#,*221 OR *225
main71073-35630-J0i199112-199201
W(FABRIC SEAT),BLUE,TRIM8#,*221 OR *225
main71073-35640-B0i199112-199201
GRAY,TRIM1#
main71073-35640-J0i199201-199209
BLUE,TRIM8#
main71073-35780-B0i199208-199501
GRAY,TRIM1#,*221 OR *225
main71073-35780-J0i199212-199501
BLUE,TRIM8#,*221 OR *225
main71073-89377-02i198808-198908
W(FABRIC SEAT),RED,TRIM3#,*220 OR *224
main71073-89377-03i198808-198908
W(FABRIC SEAT),GRAY,TRIM1#,*220 OR *224
main71073-89377-04i198808-198908
W(FABRIC SEAT),BLUE,TRIM8#,*220 OR *224
main71073-89377-06i198808-198908
W(FABRIC SEAT),BROWN,TRIM4#,*220 OR *224
main71073-89410-02i198808-198908
RED,TRIM3#,*220
main71073-89410-03i198808-198908
GRAY,TRIM1#,*220
main71073-89410-04i198808-198908
BLUE,TRIM8#,*220
main71073-89410-06i198808-198908
BROWN,TRIM4#,*220
main71073-89412-02i198808-198908
RED,TRIM3#,*220 OR *224
main71073-89412-03i198808-198908
GRAY,TRIM1#,*220 OR *224
main71073-89412-04i198808-198908
BLUE,TRIM8#,*220 OR *224
main71073-89412-06i198808-198908
BROWN,TRIM4#,*220 OR *224
main71073-89431-02i198808-198908
RED,TRIM3#,*221 OR *225
main71073-89431-03i198808-198908
GRAY,TRIM1#,*221 OR *225
main71073-89431-04i198808-198908
BLUE,TRIM8#,*221 OR *225
main71073-89431-06i198808-198908
BROWN,TRIM4#,*221 OR *225
main71073-89432-02i198808-198908
W(FABRIC SEAT),RED,TRIM3#,*221 OR *225
main71073-89432-03i198808-198908
W(FABRIC SEAT),GRAY,TRIM1#,*221 OR *225
main71073-89432-04i198808-198908
W(FABRIC SEAT),BLUE,TRIM8#,*221 OR *225
main71073-89432-06i198808-198908
W(FABRIC SEAT),BROWN,TRIM4#,*221 OR *225
main71073-89433-02i198808-198908
RED,TRIM3#,*221
main71073-89433-03i198808-198908
GRAY,TRIM1#,*221
main71073-89433-04i198808-198908
BLUE,TRIM8#,*221
main71073-89433-06i198808-198908
BROWN,TRIM4#,*221
main71073-89447-02i198908-199108
W(FABRIC SEAT),RED,TRIM3#,*220 OR *224
main71073-89447-03i198908-199108
W(FABRIC SEAT),GRAY,TRIM1#,*220 OR *224
main71073-89447-04i198908-199108
W(FABRIC SEAT),BLUE,TRIM8#,*220 OR *224
main71073-89447-06i198908-199108
W(FABRIC SEAT),BROWN,TRIM4#,*220 OR *224
main71073-89448-02i198908-199108
W(FABRIC SEAT),RED,TRIM3#,*221 OR *225
main71073-89448-03i198908-199108
W(FABRIC SEAT),GRAY,TRIM1#,*221 OR *225
main71073-89448-04i198908-199108
W(FABRIC SEAT),BLUE,TRIM8#,*221 OR *225
main71073-89448-06i198908-199108
W(FABRIC SEAT),BROWN,TRIM4#,*221 OR *225
main71073-89451-02i198908-199108
RED,TRIM3#,*220 OR *224
main71073-89451-03i198908-199108
GRAY,TRIM1#,*220 OR *224
main71073-89451-04i198908-199108
BLUE,TRIM8#,*220 OR *224
main71073-89451-06i198908-199108
BROWN,TRIM4#,*220 OR *224
main71073-89452-02i198908-199108
RED,TRIM3#,*221 OR *225
main71073-89452-03i198908-199108
GRAY,TRIM1#,*221 OR *225
main71073-89452-04i198908-199108
BLUE,TRIM8#,*221 OR *225
main71073-89452-06i198908-199108
BROWN,TRIM4#,*221 OR *225
71311PIN, FRONT SEAT HINGE
main71311-89105×2i198808-199209
71379ASTOPPER, FRONT SEAT VERTICAL HANDLE
main71379-89101×4i199209-199501
71511BPAD, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71511-89142i199108-199209
*220 OR *224
main71511-89150i199209-199501
*221 OR *225
71551BPAD, FRONT SEATBACK(FOR BENCH TYPE)
main71551-35030i199209-199501
*221 OR *225
main71551-89128i198908-199108
*220 OR *224
main71551-89144i198908-199108
*221 OR *225
71561BPAD, FRONT SEATBACK, UPPER
main71561-35010×2i199108-199209
main71561-89114×2i198908-199108
*221 OR *225
main71561-89116×2i198808-198908
*220 OR *224
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-89103×2i198808-199209
71610BSPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE)
main71610-89146i198808-199209
*221 OR *225
main71610-89158i198808-199209
*220 OR *224
71630BSPRING ASSY, FRONT SEATBACK(FOR BENCH TYPE)
main71630-35020i199110-199209
*221 OR *225
main71630-89146i198808-198908
*221 OR *225
main71630-89155i199209-199501
*220 OR *224
main71630-89157i199008-199108
71739CUSHION, SEAT SUPPORT
main71739-89111i199209-199501
*221 OR *225; W(SEPARATE SEAT),*221 OR *225
main71739-89112×2i199209-199501
*221 OR *225
main71739-89113×2i199108-199209
W(SEPARATE SEAT),*220 OR *224
main71739-89114×2i199008-199108
W(SEPARATE SEAT)
main71739-89115×2i199209-199501
*220 OR *224
71897HOOK, SEAT COVER SIDE
main71897-89102-02×4i198808-199108
RED,TRIM3#
main71897-89102-23×4i198808-198901
GRAY,TRIM1#
main71897-89102-24×4i198808-198901
BLUE,TRIM8#
main71897-89102-26×4i198808-198901
BROWN,TRIM4#
main71897-89102-B1×4i199209-199501
GRAY,TRIM1#
main71897-89102-E0×4i198901-199108
LIGHT BROWN,TRIM4#
main71897-89102-J1×4i198901-199209
BLUE,TRIM8#
main71897-89104-02×2i198808-199008
W(SPLIT SEAT),RED,TRIM3#
main71897-89104-03×2i199209-199303
GRAY,TRIM1#
main71897-89104-04×2i198808-198908
BLUE,TRIM8#
main71897-89104-06×2i198908-199108
BROWN,TRIM4#
main71897-89104-B1×2i199303-199501
GRAY,TRIM1#
main71897-89104-J1×2i199303-199501
BLUE,TRIM8#
9046818071
main90468-18071
9356015025
main93560-15025

14 parts on this diagram · 9 diagrams in section
