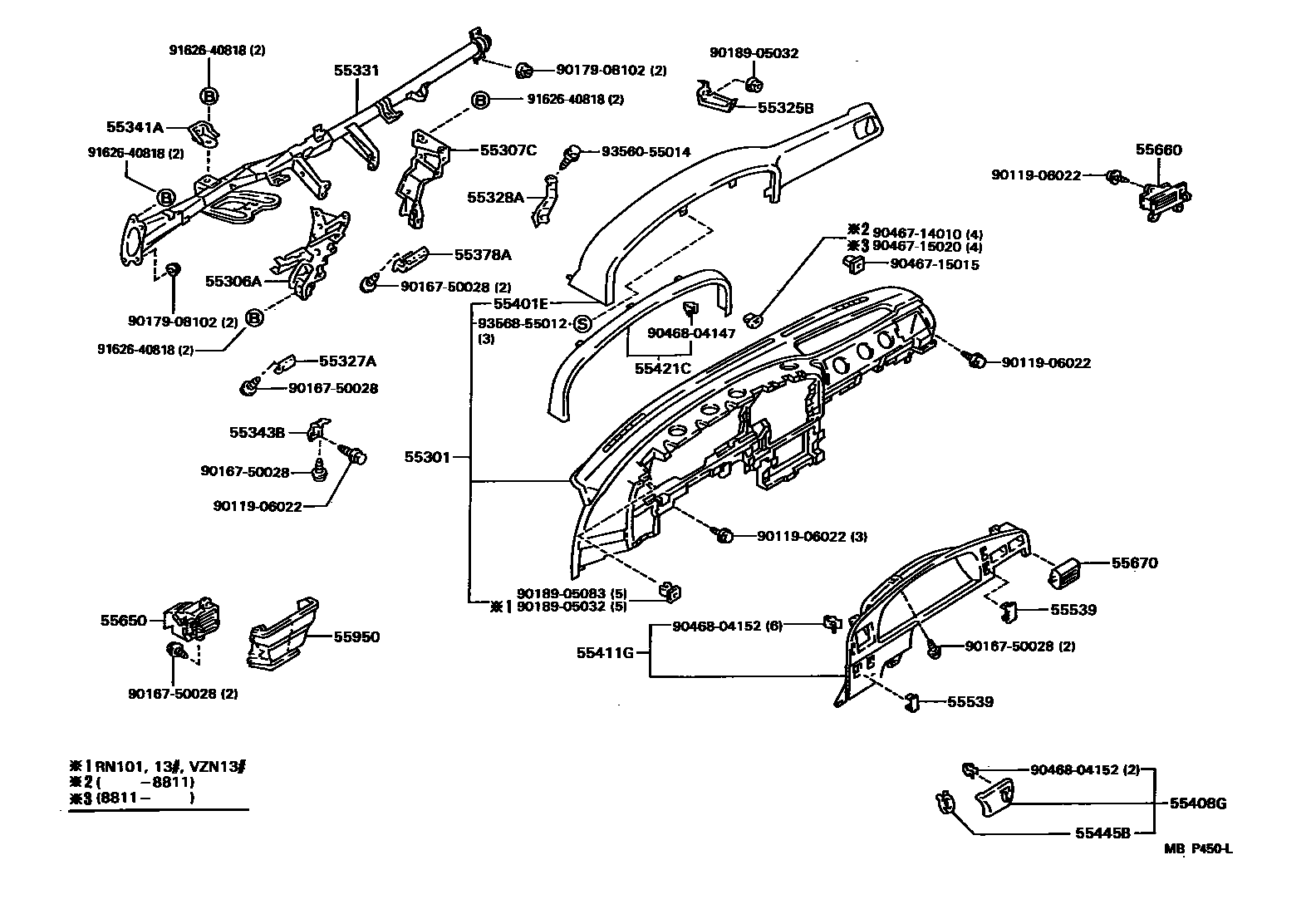

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-35010-B0iRN10#,VZN10#199108-199308

GRAY,TRIM1#

main55301-35010-J0iRN10#,VZN10#199108-199308

BLUE,TRIM8#

main55301-89120-02iRN10#,110,13#,VZN10#,110,13#198808-199001

RED,TRIM3#

main55301-89120-03iRN110,13#,VZN110,13#199108-199303

GRAY,TRIM1#

main55301-89120-04iRN10#,110,13#,VZN10#,110,13#198808-199108

BLUE,TRIM8#

main55301-89120-06iRN10#,110,13#,VZN10#,110,13#198808-199108

BROWN,TRIM4#

main55301-89120-B0iRN13#,VZN110,13#..SR5199308-199511

MEDIUM GRAY,TRIM1#

main55301-89120-E1iRN13#,VZN13#199108-199308

TAN,TRIM4#

main55301-89120-E2iRN13#,VZN13#199308-199511

OAK,TRIM4#

main55301-89120-J0iRN13#,VZN110,13#..SR5199308-199511

MEDIUM BLUE,TRIM8#

main55301-89121-B0iVZN130..4FC199312-199401

BRAZIL SPEC,MEDIUM GRAY,TRIM1#

main55301-89121-E2iVZN130..4FC199312-199401

BRAZIL SPEC,OAK,TRIM4#

main55301-89121-J0iRN130;VZN130..4FC199401-199511

BRAZIL SPEC,MEDIUM BLUE,TRIM8#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-35010iRN10#,VZN10#199108-199308

main55306-89105iRN10#,110,13#,VZN10#,110,13#198808-199108

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-35010iRN10#,110,VZN100,110..DLX199308-199501

main55307-89107iRN13#,VZN110,13#..SR5199308-199511

55325BBRACKET, INSTRUMENT PANEL, NO.5

main55325-35020iRN10#,VZN10#199108-199308

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-89104iRN10#,110,VZN100,110..DLX199308-199501

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-35020iRN10#,110,VZN100,110..DLX199308-199501

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-35020iRN10#,110,VZN100,110199408-199501

main55330-35030iRN13#,VZN13#199408-199511

main55330-89117iRN10#,110,13#,VZN10#,110,13#198808-198906

main55330-89120iRN10#,110,13#,VZN10#,110,13#198906-199108

55341ABRACE, INSTRUMENT PANEL TO COWL, UPPER

main55341-04010iRN10#,110,13#,VZN100,110,13#199208-199511

main55341-89103iRN10#,110,13#,VZN10#,110,13#198808-199511

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-89101iRN10#,110,13#,VZN10#,110,13#198808-199511

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-89102iRN10#,VZN10#199108-199308

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-89122-02iRN10#,110,13#,VZN10#,110,13#198808-199108

RED,TRIM3#

main55401-89122-03iRN10#,110,VZN10#,110198808-198901

GRAY,TRIM1#

main55401-89122-04iRN10#,110,VZN10#,110198808-198901

BLUE,TRIM8#

main55401-89122-06iRN10#,110,VZN10#,110198808-198901

BROWN,TRIM4#

main55401-89122-B0iRN110,13#,VZN110,13#199108-199308

MEDIUM GRAY,TRIM1#

main55401-89122-E0iRN10#,110,13#,VZN10#,110,13#198901-199108

BROWN,TRIM4#

main55401-89122-E1iRN13#,VZN13#199108-199308

TAN,TRIM4#

main55401-89122-E2iRN13#,VZN13#199308-199511

OAK,TRIM4#

main55401-89122-J0iRN110,13#,VZN110,13#199108-199308

MEDIUM BLUE,TRIM8#

55408GBEZEL SUB-ASSY, STARTER SWITCH

main55408-89101iRN10#,110,13#,VZN10#,110,13#..5F198808-199511

main55408-89103iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-35040iRN10#,VZN10#199108-199308

main55411-89109iRN10#,110,13#,VZN10#,110,13#198808-199108

55421CHOOD, METER

main55421-89108-B0iRN10#,VZN10#199108-199308

MEDIUM GRAY,TRIM1#

main55421-89108-J0iRN10#,110,VZN100,110..DLX199308-199501

MEDIUM BLUE,TRIM8#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-89103iRN10#,110,13#,VZN10#,110,13#..5F198808-199511

main55445-89104iRN10#,110,13#,VZN105,110,13#..4FC198808-199511

55539COVER, SPARE SWITCH HOLE

main55539-89105iRN10#,110,13#,VZN10#,110,13#198808-199511

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-89112iRN10#,110,13#,VZN10#,110,13#198808-199511

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-89107-02iRN10#,110,13#,VZN10#,110,13#198808-199108

RED,TRIM3#

main55660-89107-03iRN10#,110,13#,VZN10#,110,13#198808-199109

GRAY,TRIM1#

main55660-89107-04iRN10#,110,13#,VZN10#,110,13#198808-199109

BLUE,TRIM8#

main55660-89107-06iRN10#,110,13#,VZN10#,110,13#198808-199108

BROWN,TRIM4#

main55660-89107-B0iRN10#,110,13#,VZN10#,110,13#199109-199511

MEDIUM GRAY,TRIM1#

main55660-89107-E1iRN13#,VZN13#199108-199308

TAN,TRIM4#

main55660-89107-E2iRN13#,VZN13#199308-199511

OAK,TRIM4#

main55660-89107-J0iRN10#,110,13#,VZN10#,110,13#199109-199511

MEDIUM BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-89115×2iRN10#,110,13#,VZN10#,110,13#198808-199511

55950NOZZLE ASSY, DEFROSTER

main55950-89108iRN10#,110,13#,VZN10#,110,13#198808-199511

9011906022

main90119-06022

9016750028

main90167-50028

9017908102

main90179-08102

9018905032

main90189-05032

9018905083

main90189-05083

9046714010

main90467-14010

9046715015

main90467-15015

9046715020

main90467-15020

9046804147

main90468-04147

9046804152

main90468-04152

9162640818

main91626-40818

9356055014

main93560-55014

9356855012

main93568-55012

33 parts on this diagram · 2 diagrams in section
