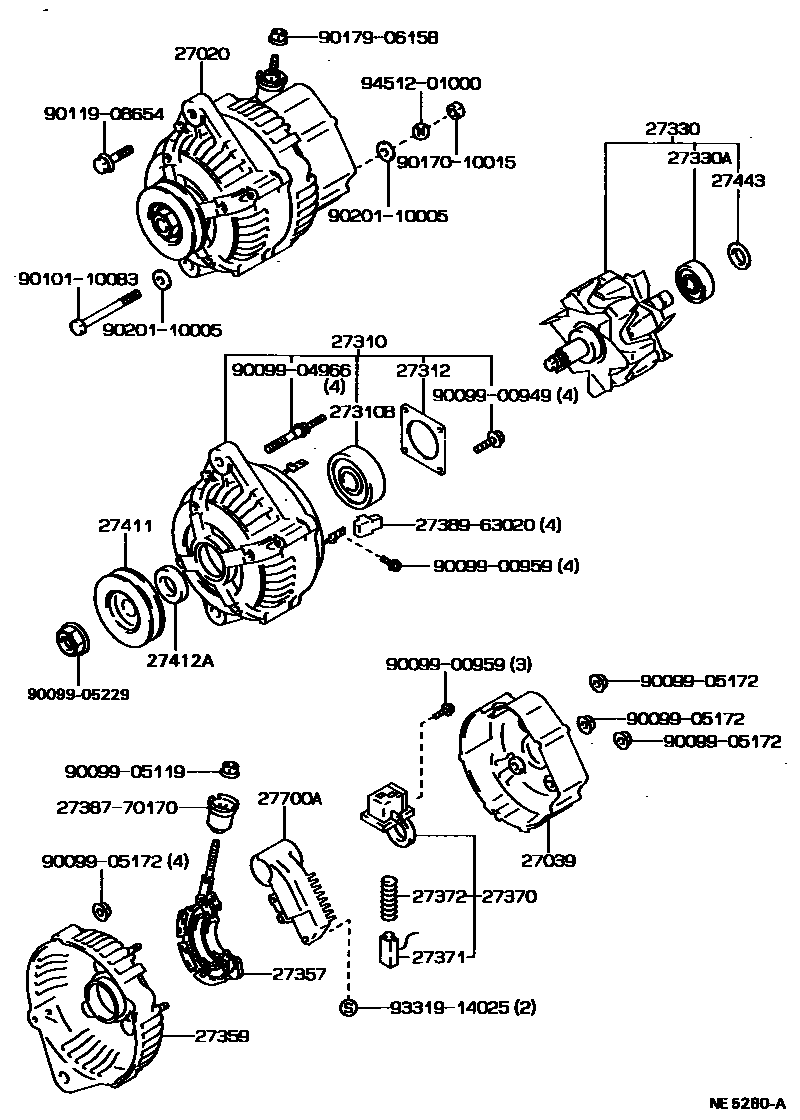

ALTERNATOR

0001 112V 60A,70A 0002 112V 60A

27020ALTERNATOR ASSY

main27060-35061i22RE..RN10#,110;22RE..RN13#..5F198808-199108

12V 60A

main27060-35120i22RE..RN13#..4FC198904-199208

12V 70A

main27060-35130i22RE..RN10#,110;22RE..RN13#..5F199108-199208

12V 60A

sub27060-35061

main27060-35150i22RE..RN13#..G;22RE..RN10#,110199208-199511

12V 60A

main27060-35160i22RE..RN13#..4FC199208-199511

12V 70A

main27060-65020i3VZE..VZN10#,110,13#198808-199208

12V 60A

main27060-65040i3VZE..VZN100,110,13#199208-199511

12V 60A

27039COVER, ALTERNATOR REAR END

main27039-15170i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#199109-199208

sub27039-15171

main27039-72010i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199109

sub27039-15170

main27039-73020i22RE,3VZE..RN10#,110,13#,VZN100,110,13#199208-199511

sub27039-16380

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-35120i22RE..RN10#,110;22RE..RN13#..5F198812-199511

main27310-35160i22RE..RN13#..4FC198904-199511

main27310-65010i3VZE..VZN10#,110,13#198808-199511

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10159i22RE..RN10#,110,13#198808-199105

sub90099-10199

main90099-10178i3VZE..VZN10#,110,13#198808-199511

main90099-10199i22RE..RN10#,110,13#199105-199511

27312PLATE, RETAINER

main27312-70200i3VZE..VZN10#,110,13#198808-199511

main27312-72100i22RE..RN10#,110,13#198808-199511

27330ROTOR ASSY, ALTERNATOR

main27330-72101i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16011i22RE..RN10#,110,13#198808-199511

sub27359-16012

sub27384-16380

main27359-65010i3VZE..VZN10#,110,13#198808-199511

sub27359-65011

sub27384-16380

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

27371BRUSH, ALTERNATOR

main27371-63020i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199105

sub27371-70300

main27371-70300i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#199105-199511

27372SPRING, ALTERNATOR BRUSH

main27372-63020i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#199108-199511

sub27372-87501

main27372-72100i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199108

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-35062i22RE..RN10#,110,13#198808-199511

main27411-65010i3VZE..VZN10#,110,13#198808-199511

27412ACOLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)

main27412-35100i22RE..RN10#,110,13#198808-199511

27443COVER, ALTERNATOR BEARING

main27443-63020i22RE,3VZE..RN10#,110,13#,VZN10#,110,13#198808-199511

27700AREGULATOR ASSY, GENERATOR

main27700-16010i3VZE..VZN10#,110,13#198808-199208

sub27700-66020

main27700-35040i22RE..RN13#..G;22RE..RN10#,110199208-199511

main27700-63021i22RE..RN10#,110198808-198812

sub27700-70030

main27700-65010i3VZE..VZN100,110,13#199208-199511

sub27700-35040

main27700-66040i22RE..RN13#..4FC199208-199511

sub27700-75020

main27700-70030i22RE..RN10#,110,13#198812-199208

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905172

main90099-05172

9009905229

main90099-05229

9010110083

main90101-10083

9011908654

main90119-08654

9017010015

main90170-10015

9017906158

main90179-06158

9020110005

main90201-10005

9331914025

main93319-14025

9451201000

main94512-01000

31 parts on this diagram · 2 diagrams in section
