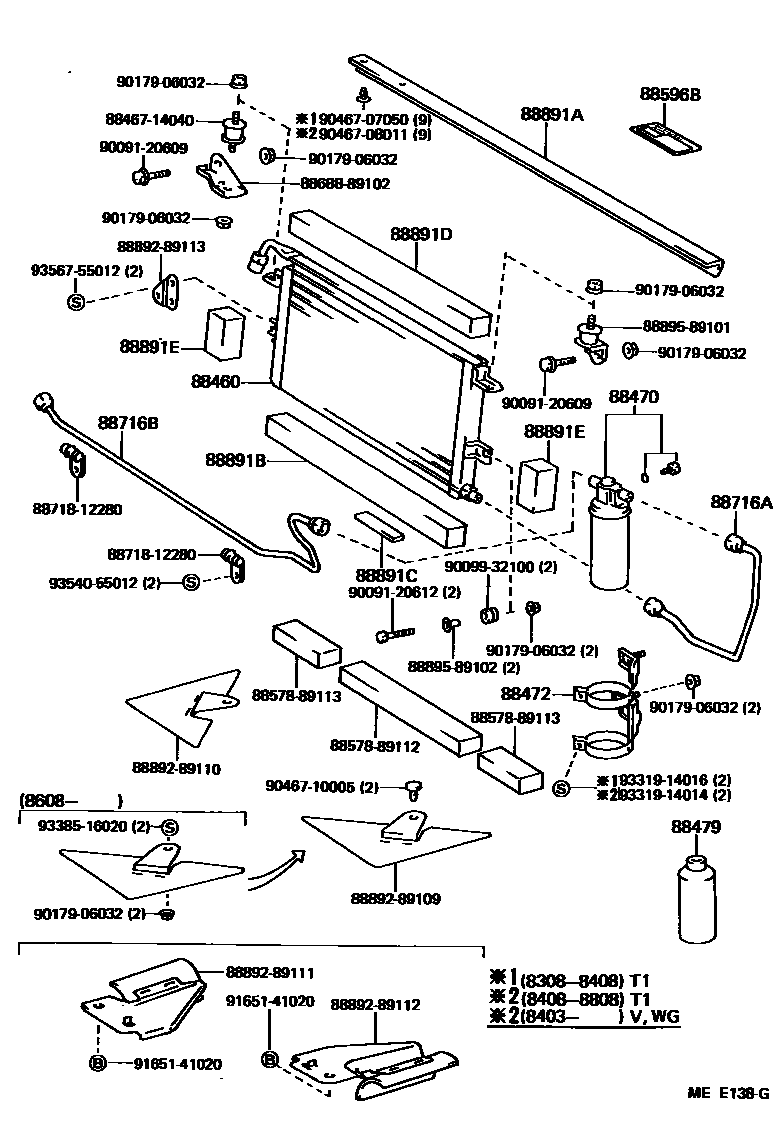

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88460CONDENSER ASSY, COOLER

main88460-89109iLN56,6#,RN5#,6#,7#,VZN6#..T1198308-198808

main88460-89110iRN60,61,VZN61..V,WG198403-198903

main88460-89111iRN61,VZN61..(V,WG)..USA198508-198903

US TERRITORY SPEC

main88460-89112iRN5#,6#,70..T1..USA..CBU; RN55,75..HVY..USA198508-198608

US TERRITORY SPEC

main88460-89113iRN55,75..HVY..USA198608-198808

US TERRITORY SPEC

88470RECEIVER & DRYER ASSY, COOLER

main88470-14010iLN56,6#,RN5#,6#,7#,VZN6#198308-198903

main88470-89101iRN50..(4F,4FC)..USA;RN55,60..T1..USA..CBU;LN56,65,RN50,65..(DLX,SR5)..USA..CBU; RN55..W..HVY..USA198501-198508

US TERRITORY SPEC

88472BRACKET, RECEIVER TANK, NO.1

main88472-89109iLN56,6#,RN5#,6#,7#,VZN6#198308-198903

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iLN56,6#,RN5#,6#,7#,VZN6#198308-198903

400G

88596BPLATE, CAUTION, NO.1

main88596-12010iLN56,6#,RN5#,6#,7#198408-198608

main88723-12010iLN56,66,RN5#,6#,7#,VZN6#198608-198903

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-89132iLN56,6#,RN5#,6#,7#,VZN6#..T1198308-198808

main88716-89138iRN60,61,VZN61..V,WG198403-198903

main88716-89152iRN5#,70..G..USA..CBU; RN55..STD..HLF..CND..EFI;RN5#,6#,70,VZN6#..T1..USA..(EFI,TBO)..CBU198708-198808

US TERRITORY SPEC

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-89133iLN56,65,RN5#,6#..T1198308-198408

main88716-89139iRN60..V,WG198403-198408

main88716-89147iRN50..(4F,4FC)..USA;RN55,60..T1..USA..CBU;LN56,65,RN50,65..(DLX,SR5)..USA..CBU; RN55..W..HVY..USA198501-198508

US TERRITORY SPEC

main88716-89151iRN5#,70..G..USA..CBU; RN55,75..HVY; RN55..STD..HLF..CND..EFI;RN5#,6#,70,VZN6#..T1..USA..(EFI,TBO)..CBU198708-198808

US TERRITORY SPEC

88891APACKING A (FOR COOLER)

main53381-89103iLN56,6#,RN5#,6#,7#,VZN6#198308-198903

88891BPACKING B (FOR COOLER)

main88578-89101iLN56..DSL198408-198608

main88578-89108iRN60..V,WG198403-198408

main88578-89109iRN50..(4F,4FC)..USA;RN55,60..T1..USA..CBU;LN56,65,RN50,65..(DLX,SR5)..USA..CBU; RN55..W..HVY..USA198501-198508

US TERRITORY SPEC

main88578-89115iVZN61..(V,WG)..USA198711-198903

US TERRITORY SPEC

main88578-89116iVZN6#198711-198903

88891CPACKING C (FOR COOLER)

main88578-89107iLN56,6#,RN5#,6#,7#,VZN6#198308-198903

88891DPACKING D (FOR COOLER)

main88578-89101iRN5#,6#,7#198308-198903

main88578-89117iVZN6#198711-198903

main88893-89114iLN56,65..DSL198308-198608

88891EPACKING E (FOR COOLER)

main88578-89103×2iLN56,65,RN5#,7#..CBR,DSL,EFI,TBO198308-198608

main88578-89111×2iRN55,75..HVY..USA198608-198808

US TERRITORY SPEC

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8857889112PAKING, COOLER AIR DUCT

main88578-89112

8857889113PAKING, COOLER AIR DUCT

main88578-89113

8868889102BRACKET, COOLER DIAPHRAGM

main88688-89102

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

8889289109BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89109

8889289110BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89110

8889289111BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89111

8889289112BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89112

8889289113BRACKET, COOLER EVAPORATOR MOUNTING

main88892-89113

8889589101HOLDER, FUSE

main88895-89101

8889589102HOLDER, FUSE

main88895-89102

9009120609

main90091-20609

9009120612

main90091-20612

9009932100

main90099-32100

9017906032

main90179-06032

9046707050

main90467-07050

9046708011

main90467-08011

9046710005

main90467-10005

9165141020

main91651-41020

9331914014

main93319-14014

9331914016

main93319-14016

9338516020

main93385-16020

9354055012

main93540-55012

9356755012

main93567-55012

37 parts on this diagram · 4 diagrams in section
