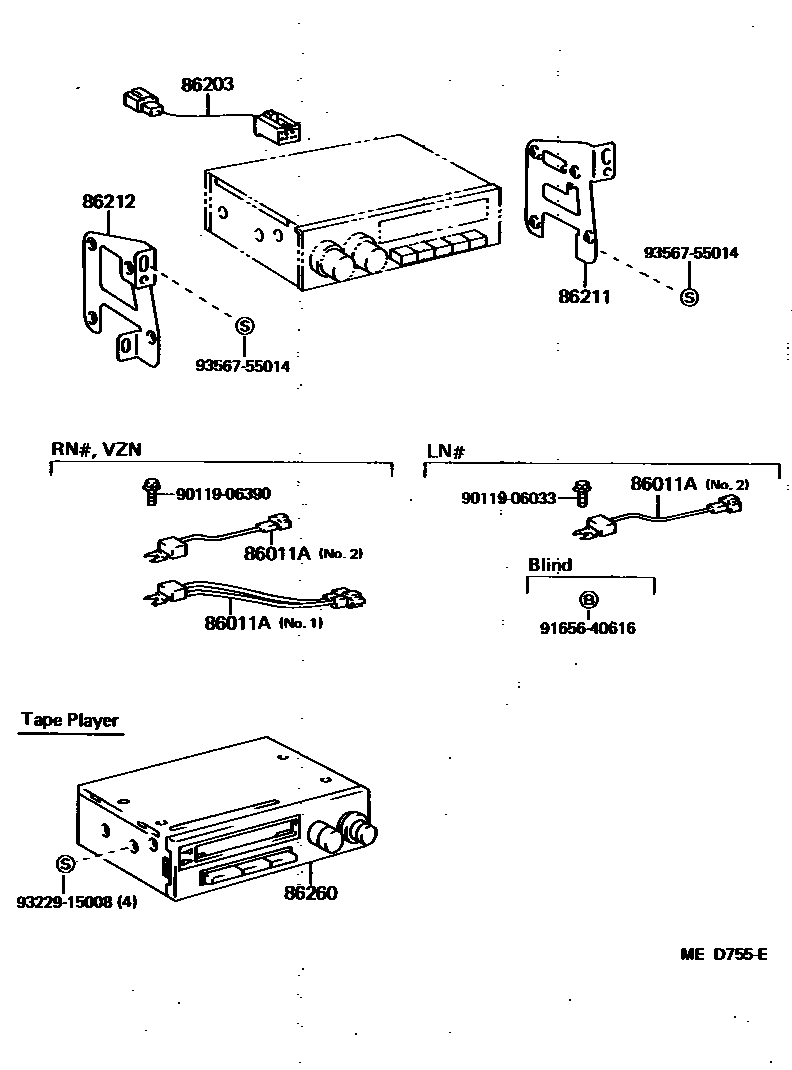

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04040×2iLN5#,6#,RN5#,6#,7#,VZN6#..DLX,STD198308-198903

NO.2

main90980-04041iRN5#,6#,7#,VZN6#198308-198903

NO.1

86203WIRE, RADIO

main86203-89101iLN56,66,RN5#,6#,7#,VZN6#..T1..(DLX,SDT,STD); RN61,VZN61..SR5..HLF198608-198808

W/*36,ELECTRONIC SEARCH

86211BRACKET, RADIO, NO.1

main86211-89109iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

86212BRACKET, RADIO, NO.2

main86212-89104iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

86260TAPE PLAYER ASSY

main86260-17010iLN56,66,RN5#,6#,7#,VZN6#198608-198903

W/O BASS & TREBLE

main86260-19055iLN5#,6#,RN5#,6#,7#198308-198608

main86260-19145iLN56,66,RN5#,6#,7#,VZN6#..DLX,SDT,SR5,STD198608-198903

W/BASS & TREBLE

main86260-20140iVZN66..XTR..CND;RN55,61,VZN61..(DLX,SR5)..CND..EFI198701-198808

9011906033

main90119-06033

9011906390

main90119-06390

9165640616

main91656-40616

9322915008

main93229-15008

9356755014

main93567-55014

10 parts on this diagram · 2 diagrams in section
