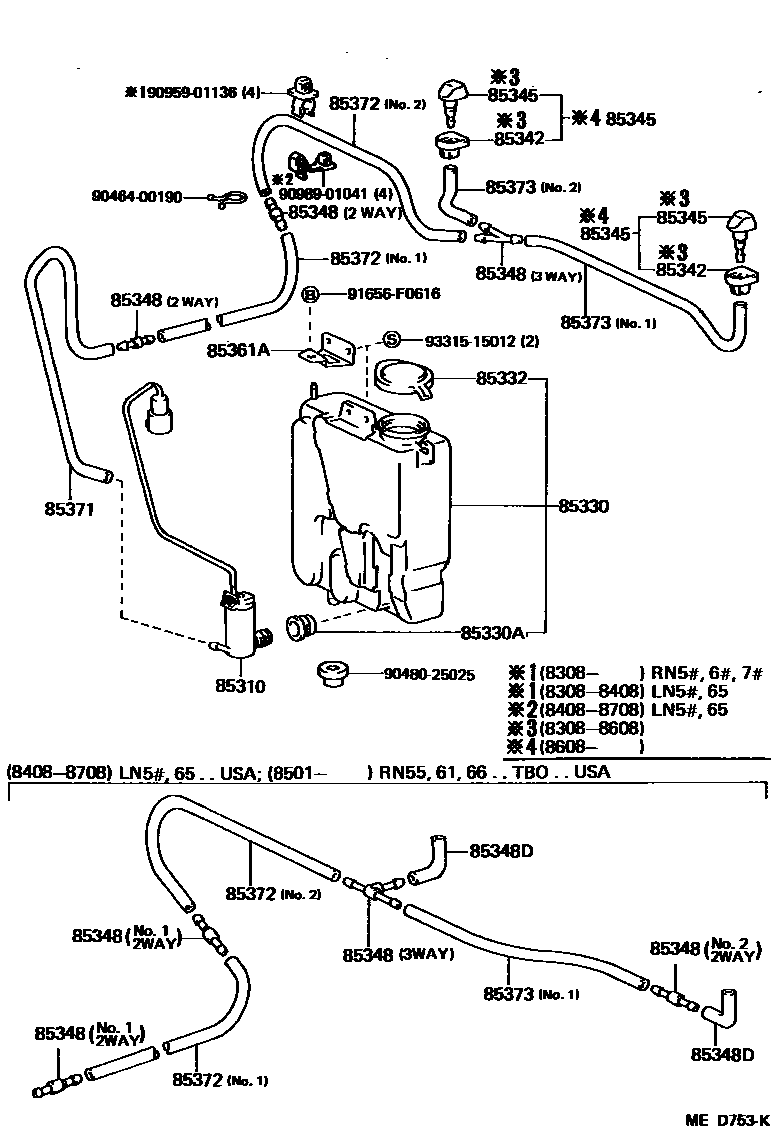

WINDSHIELD WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
COLD SPEC
COLD SPEC
main85310-89110iRN55..CND..CBR;RN55..10T..CND;RN55..SR5..CND;LN56,66,RN50,6#,7#,VZN6#..CND198608-198903
85330JAR ASSY, WINDSHIELD WASHER
1.7LITER
2.5LITER,COLD SPEC
85330ABUSH, WINDSHIELD WASHER JAR
COLD SPEC
85332CAP, WINDSHIELD WASHER JAR
85342HOLDER, WASHER NOZZLE
85345NOZZLE, WINDSHIELD WASHER
COLD SPEC
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
3 WAY; 3 WAY,COLD SPEC; 3 WAY,EXCL/COLD SPEC
3 WAY
NO.1,2 WAY; NO.1,2 WAY,COLD SPEC
NO.2,2 WAY
main85349-89122iRN55..SR5..CND;RN55..(10T,HVY)..CND;RN55..CND..(CBR,TBO);LN56,6#,RN50,6#,7#,VZN6#..CND; RN55..STD..HLF..CND..EFI;RN5#,6#,7#,VZN6#..USA..(CBR,EFI)198408-198903
2 WAY,EXCL/COLD SPEC; NO.1,2 WAY
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
COLD SPEC
85361ABRACKET, WINDSHIELD WASHER, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1800(*H,L=40),COLD SPEC
*H,L=30; *H,L=30,COLD SPEC
L=1800(*H,L=400)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1400,COLD SPEC,NO.2
main90099-33080iRN55..SR5..CND;RN55..(10T,HVY)..CND;RN55..CND..(CBR,TBO);LN56,6#,RN50,6#,7#,VZN6#..CND198408-198903
L=1000(*H,L=360),NO.1
L=1000(*H,L=360),COLD SPEC,NO.1; L=1000,NO.1,*H,L=360; L=1000,NO.2,*H,L=700,EXCL/COLD SPEC
NO.2,*H,L=1400,COLD SPEC
L=1000(*H,L=800),EXCL/COLD SPEC,NO.1
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=100),COLD SPEC,NO.2
L=450,COLD SPEC,NO.1; L=450,NO.1
L=1450(*H,L=480),NO.1
L=1000(*H,L=100),COLD SPEC,NO.2; L=1000(*H,L=100),NO.2
main90099-33299iRN5#,6#,7#..CBR,EFI; RN55..(4FC,5F)..CND;RN55..4HC..10T..CND;RN50,6#,7#,VZN6#..CND198708-198903
L=1000(*H,L=440),NO.1
9046400190
main90464-00190
9048025025
main90480-25025
9095901136
main90959-01136
9098901041
main90989-01041
91656F0616
main91656-F0616
9331515012
main93315-15012
18 parts on this diagram · 2 diagrams in section
