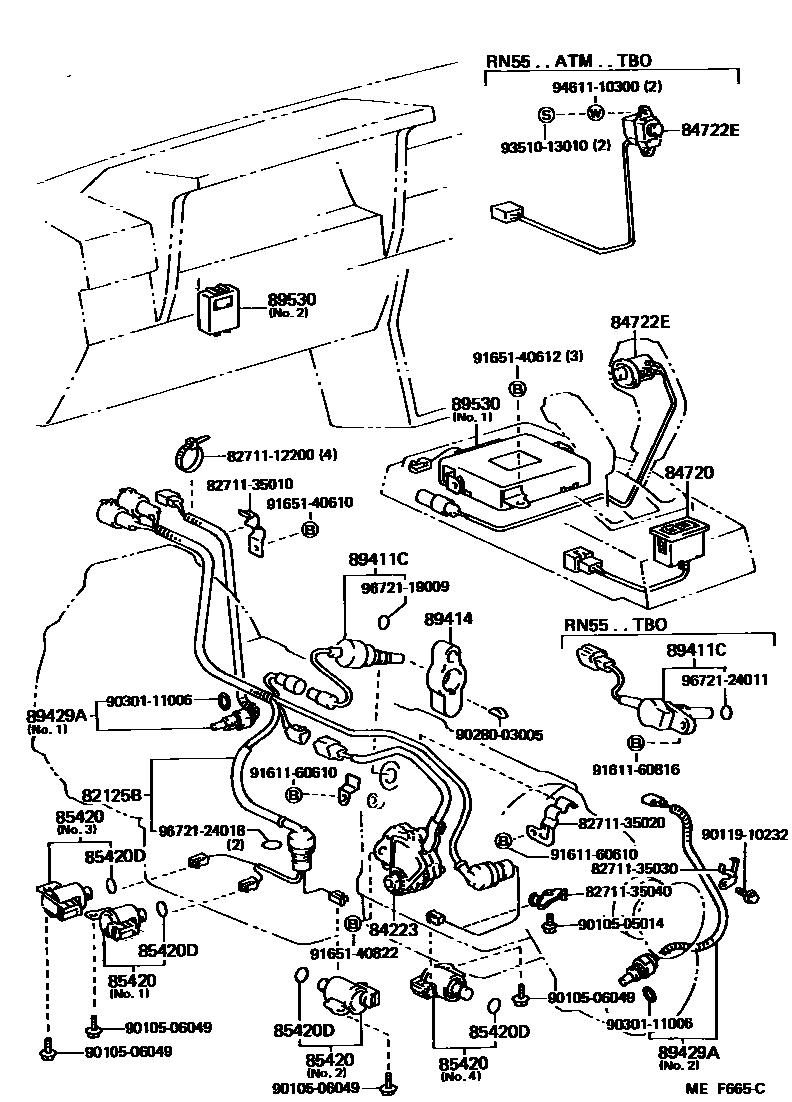

ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-30070iRN55..4FC..TBO198501-198608

main82125-35010iRN6#..4FC198501-198508

main82125-35020iRN6#..4FC198508-198708

main82125-35050iVZN6#..4FC198711-198903

main82125-35090iRN61..4FC198808-198903

84223SWITCH, TRANSFER POSITION

main84223-35010iRN6#,VZN6#..4FC198501-198903

84720SWITCH ASSY, PATTERN SELECT

main84720-35010iRN55..4FC..TBO; RN6#..4FC198501-198608

main84720-35020iRN6#,VZN6#..4FC198608-198903

84722ESWITCH, TRANSMISSION CONTROL

main84722-35010iRN55..4FC..TBO198501-198608

main84722-35020iRN61,66..4FC198501-198608

main84722-35040-02iRN6#,VZN6#..4FC198608-198903

RED,RED,TRIM3#

main84722-35040-03iRN6#,VZN6#..4FC198608-198903

GRAY,GRAY,TRIM1#

main84722-35040-04iRN6#,VZN6#..4FC198608-198903

BLUE,BLUE,TRIM8#

main84722-35040-05iRN6#,VZN6#..4FC198608-198903

BEIGE,BEIGE,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-12020iRN55..4FC..TBO198501-198608

NO.1,NO.2(SHIFT)

main85420-22070×3iRN6#,VZN6#..4FC198804-198807

NO.1,NO.2,NO.4(SHIFT),DENSO

main85420-22080×3iRN6#..4FC198807-198903

NO.1,NO.2,NO.4(SHIFT)

main85420-30110iRN6#,VZN6#..4FC198501-198903

NO.3(LOCK UP),AISHIN

main85420-30120iRN55..4FC..TBO198501-198608

NO.3(LOCK UP),DENSO

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iRN55..4FC..TBO198501-198608

89411CSENSOR, SPEED

main89411-30090iRN55..4FC..TBO198501-198608

main89411-35010iRN6#,VZN6#..4FC198501-198903

89414ROTOR, SENSOR

main89414-30020iRN55..4FC..TBO198501-198608

main89414-35010iRN6#,VZN6#..4FC198501-198903

89429ASENSOR, TEMPERATURE

main89429-35010iRN6#..4FC198501-198903

NO.1

main89429-35020iRN6#..4FC198508-198606

NO.2

main89429-35021iRN6#..4FC198606-198708

NO.2

main89429-35040iVZN6#..4FC198711-198903

NO.1

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-35010iRN55..4FC..TBO198501-198608

DENSO,NO.1

main89530-35020iRN55..4FC..TBO198501-198608

AISIN,NO.1

main89530-35030iRN6#..4FC198501-198508

DENSO,NO.1

main89530-35040iRN6#..4FC198501-198508

AISIN,NO.1

main89530-35050iRN6#..4FC..EFI198508-198608

NO.1

main89530-35070iRN6#..SRT198508-198601

DENSO,NO.1

main89530-35080iRN6#..SRT198508-198601

AISIN,NO.1

main89530-35090iVZN6#..4FC198711-198903

NO.2

main89530-35140iRN6#..4FC..EFI198608-198708

NO.1

main89530-35160iRN61..SRT198608-198708

NO.1

main89530-35200iRN6#..4FC198708-198903

NO.1

main89530-35220iVZN6#..4FC198711-198903

NO.1

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271135010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35010

8271135020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35020

8271135030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35030

8271135040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35040

9010505014

main90105-05014

9010506049

main90105-06049

9011910232

main90119-10232

9028003005

main90280-03005

9030111006

main90301-11006

9161160610

main91611-60610

9161160816

main91611-60816

9165140610

main91651-40610

9165140612

main91651-40612

9165140822

main91651-40822

9351013010

main93510-13010

9461110300

main94611-10300

9672119009

main96721-19009

9672124011

main96721-24011

9672124018

main96721-24018

30 parts on this diagram · 1 diagram in section
