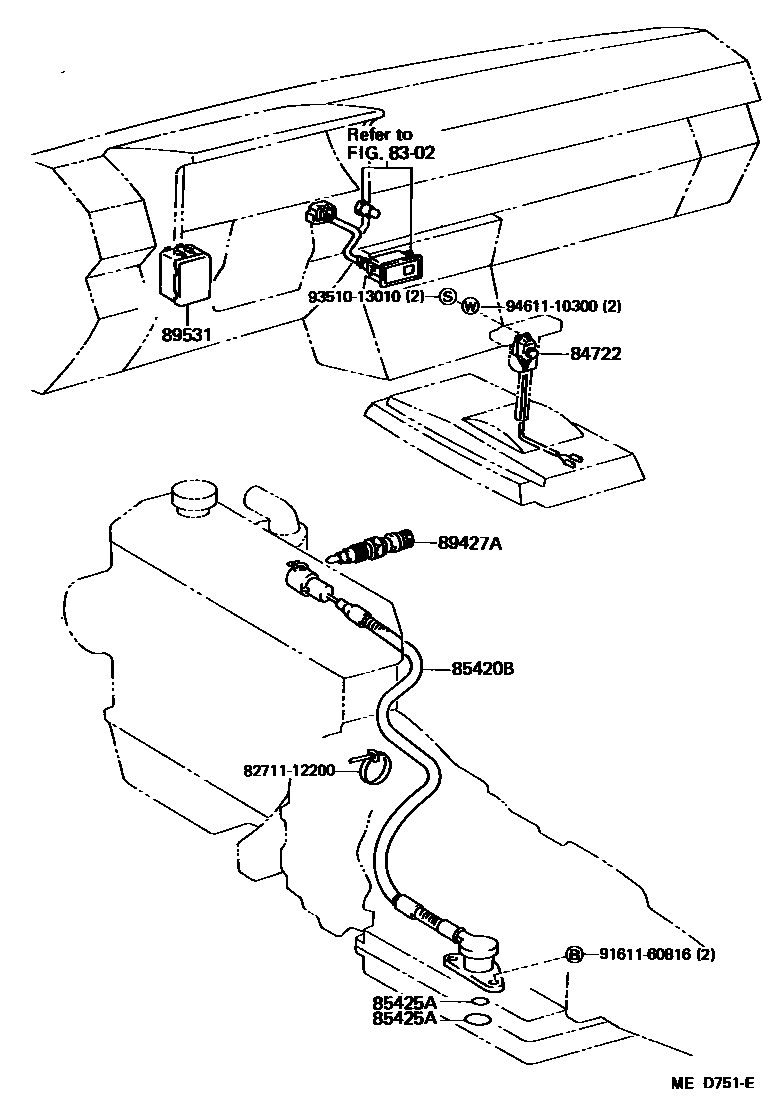

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8302INDICATOR

→ Go to FIG 83-02

84722SWITCH, TRANSMISSION CONTROL

main84722-35010iRN5#..4FC..(CBR,EFI)198308-198608

main84722-35030iRN55,75..4FC198608-198808

85420BSOLENOID ASSY, TRANSMISSION

main85420-20050iRN5#,7#..ATM..(CBR,EFI)198308-198808

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iRN5#,7#..ATM..(CBR,EFI)198308-198808

ID=11

main90301-23001iRN5#,7#..ATM..(CBR,EFI)198308-198808

ID=23

89427ASWITCH, TEMPERATURE

main89428-20050iRN55..4FC..EFI198308-198508

89531RELAY, TRANSMISSION CONTROL

main89531-28010iRN5#,7#..ATM..(CBR,EFI)198308-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161160816

main91611-60816

9351013010

main93510-13010

9461110300

main94611-10300

10 parts on this diagram · 1 diagram in section
