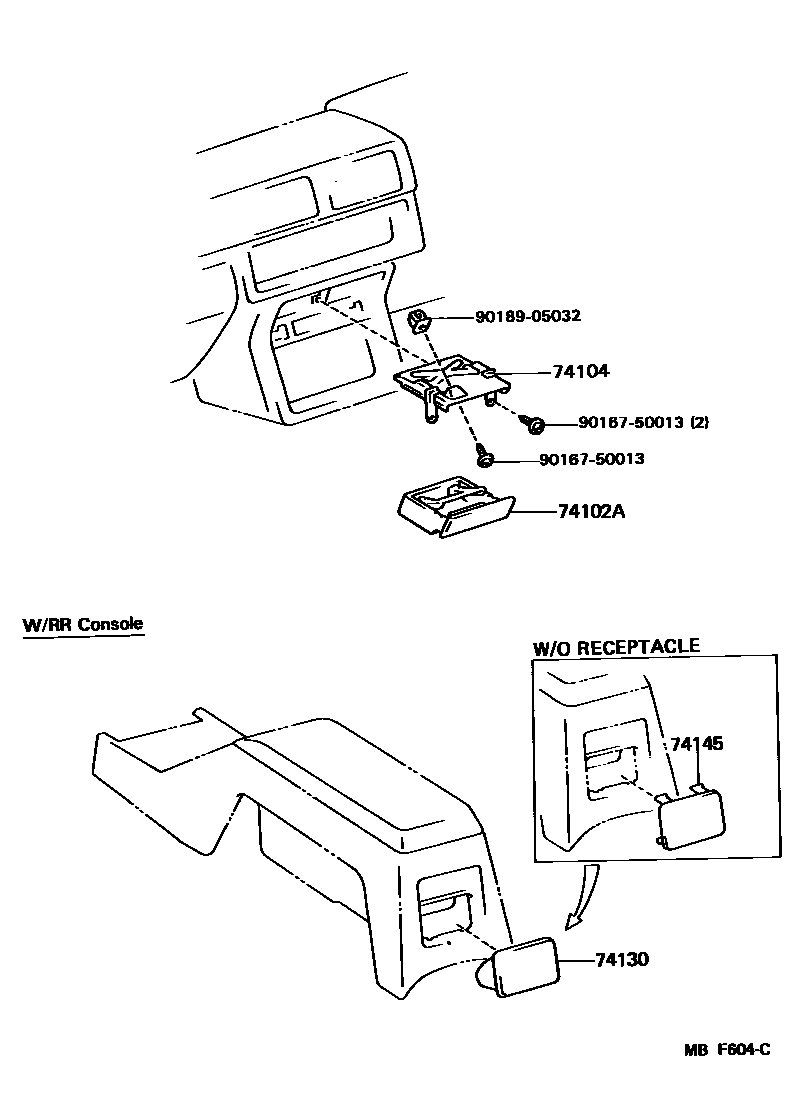

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-89103iLN5#,6#,RN5#,6#,7#198308-198608

main74102-89103-02iRN55,6#,VZN6#..SR5,SRT; RN61..DLX..EFI198608-198903

RED,RED,TRIM3#

main74102-89103-03iLN56,66,RN5#,6#,7#,VZN6#198608-198903

GRAY,GRAY,TRIM1#

main74102-89103-04iLN56,66,RN5#,6#,7#,VZN6#..T1198608-198903

BLUE,BLUE,TRIM8#

main74102-89103-05iLN56,66,RN5#,6#,7#,VZN6#198608-198903

BEIGE,BEIGE,TRIM4#

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-89105iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

main74104-89106iRN55..RCB..SR5..CND;RN50,6#,VZN6#..SR5,SRT;RN55..4FC..HLF..(EFI,TBO);RN55..5F..HLF..USA..(EFI,TBO)198408-198903

ILLUMINATION PACKAGE

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-24iRN60,61..V..CND; RN60,61..WG198403-198608

BLUE,BLUE,TRIM8#

main74130-12040-26iRN60,61..V..CND; RN60,61..WG198403-198608

BROWN,BROWN,TRIM4#

main74130-12040-33iRN60,61..V..CND; RN60,61..WG198403-198608

GRAY,GRAY,TRIM1#

main74130-12040-35iRN61,VZN61..V..CND; RN61,VZN61..V..SR5..USA; RN61,VZN61..WG198804-198903

BEIGE,DARK BEIGE,TRIM4#

main74130-12040-42iRN61,VZN61..V..CND; RN61,VZN61..V..SR5..USA; RN61,VZN61..WG198804-198903

RED,RED,TRIM3#

main74130-12040-43iRN61..V..SR5; RN61..WG198608-198708

GRAY,MEDIUM GRAY,TRIM1#

74145PLATE, REAR ASH RECEPTACLE

main74145-12020-02iRN55,66,VZN66..SR5,SRT198608-198808

RED,RED,TRIM3#

main74145-12020-03iRN60..V..USA198403-198501

GRAY,GRAY,TRIM1#

main74145-12020-04iRN60..V..USA198403-198501

BLUE,BLUE,TRIM8#

main74145-12020-05iRN55,66,VZN66..SR5,SRT198608-198808

BEIGE,BEIGE,TRIM4#

main74145-12020-06iRN66..XTR..SR5198508-198608

BROWN,BROWN,TRIM4#

main74145-12020-13iRN55,66,VZN66..SR5,SRT198608-198808

GRAY,GRAY,TRIM1#

main74145-12020-14iRN55,66,VZN66..SR5,SRT198608-198808

BLUE,BLUE,TRIM8#

main74145-89102-02iRN61,VZN61..DLX..USA198608-198903

RED,RED,TRIM3#

main74145-89102-03iRN61..V..USA; RN66..TBO198508-198608

GRAY,GRAY,TRIM1#

main74145-89102-04iRN55..XTR..(EFI,TBO)198502-198608

BLUE,BLUE,TRIM8#

main74145-89102-05iRN61,VZN61..DLX..USA198608-198903

BEIGE,BEIGE,TRIM4#

main74145-89102-06iRN55..XTR..(EFI,TBO)198502-198608

BROWN,BROWN,TRIM4#

main74145-89102-13iRN61,VZN61..DLX..USA198608-198903

GRAY,GRAY,TRIM1#

9016750013

main90167-50013

9018905032

main90189-05032

6 parts on this diagram · 1 diagram in section
