ARMREST & VISOR

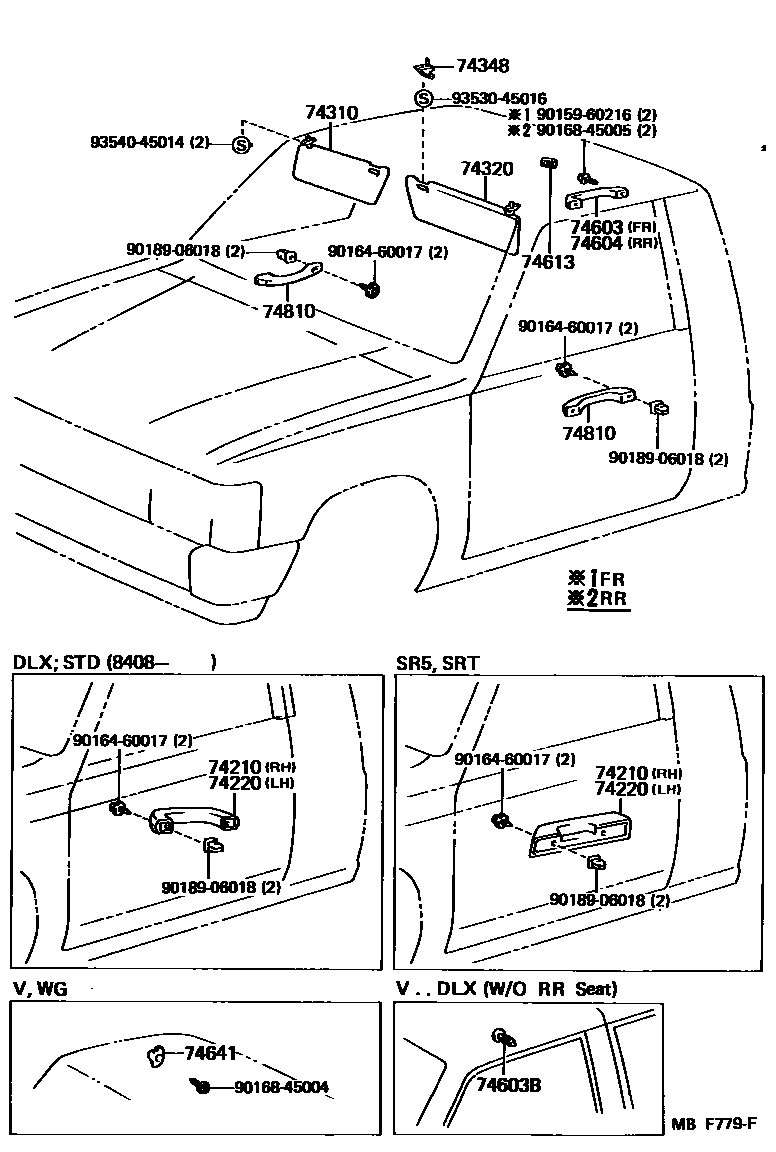

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-89101-06i198308-198408
BROWN,BROWN,TRIM4#
main74210-89101-13i198408-198608
GRAY,GRAY,TRIM1#
main74210-89101-15i198608-198808
BEIGE,BEIGE,TRIM4#
main74210-89101-23i198608-198808
GRAY,GRAY,TRIM1#
main74210-89101-24i198408-198608
BLUE,BLUE,TRIM8#
main74210-89101-44i198608-198808
BLUE,BLUE,TRIM8#
main74210-89102-03i198308-198508
GRAY,GRAY,TRIM1#
main74210-89102-04i198508-198608
BLUE,BLUE,TRIM8#
main74210-89102-06i198508-198608
BROWN,BROWN,TRIM4#
main74210-89103-02i198608-198903
RED,RED,TRIM3#
main74210-89103-03i198608-198903
GRAY,GRAY,TRIM1#
main74210-89103-04i198608-198903
BLUE,BLUE,TRIM8#
main74210-89103-05i198608-198903
BEIGE,BEIGE,TRIM4#
main74210-89104-02i198608-198903
RED,RED,TRIM3#
main74210-89104-03i198608-198903
GRAY,GRAY,TRIM1#
main74210-89104-04i198608-198808
BLUE,BLUE,TRIM8#
main74210-89104-05i198608-198903
BEIGE,BEIGE,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74210-89101-06i198408-198608
BROWN,BROWN,TRIM4#
main74210-89101-13i198408-198608
GRAY,GRAY,TRIM1#
main74210-89101-15i198608-198808
BEIGE,BEIGE,TRIM4#
main74210-89101-23i198608-198808
GRAY,GRAY,TRIM1#
main74210-89101-24i198408-198608
BLUE,BLUE,TRIM8#
main74210-89101-44i198608-198808
BLUE,BLUE,TRIM8#
main74210-89103-02i198608-198903
RED,RED,TRIM3#
main74210-89103-03i198608-198903
GRAY,GRAY,TRIM1#
main74210-89103-04i198608-198903
BLUE,BLUE,TRIM8#
main74210-89103-05i198801-198808
VALUE PACKAGE,BEIGE,BEIGE,TRIM4#
main74220-89101-03i198308-198508
GRAY,GRAY,TRIM1#
main74220-89101-04i198308-198508
BLUE,BLUE,TRIM8#
main74220-89101-06i198308-198508
BROWN,BROWN,TRIM4#
main74220-89102-02i198608-198903
RED,RED,TRIM3#
main74220-89102-03i198608-198903
GRAY,GRAY,TRIM1#
main74220-89102-04i198608-198808
BLUE,BLUE,TRIM8#
main74220-89102-05i198608-198903
BEIGE,BEIGE,TRIM4#
74310VISOR ASSY, RH
main74310-89114-02i198608-198903
RED,RED,TRIM3#
main74310-89114-03i198308-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74310-89114-05i198608-198903
BEIGE,BEIGE,TRIM4#
main74310-89114-08i198308-198608
IVORY,IVORY,TRIM4#
main74310-89114-13i198608-198903
GRAY,GRAY,TRIM1#,8#
main74310-89116-03i198308-198508
LIGHT GRAY,GRAY,TRIM1#,8#
main74310-89116-08i198308-198508
IVORY,IVORY,TRIM4#
main74310-89121-02i198708-198903
RED,RED,TRIM3#
main74310-89121-03i198403-198508
LIGHT GRAY,GRAY,TRIM1#,8#
main74310-89121-05i198608-198708
BEIGE,BEIGE,TRIM4#
main74310-89121-08i198508-198608
IVORY,IVORY,TRIM4#
main74310-89121-13i198708-198903
GRAY,GRAY,TRIM1#,8#
main74310-89122-02i198608-198708
RED,RED,TRIM3#
main74310-89122-03i198508-198608
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74310-89122-05i198708-198903
FB,BEIGE,BEIGE,TRIM4#
main74310-89122-08i198508-198608
IVORY,IVORY,TRIM4#
main74310-89122-13i198608-198708
GRAY,GRAY,TRIM1#,8#
74320VISOR ASSY, LH
main74310-89114-03i198308-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74310-89114-05i198608-198808
BEIGE,BEIGE,TRIM4#
main74310-89114-08i198308-198608
IVORY,IVORY,TRIM4#
main74310-89114-13i198608-198808
GRAY,GRAY,TRIM1#,8#
main74320-89105-03i198308-198508
LIGHT GRAY,GRAY,TRIM1#,8#
main74320-89105-08i198308-198508
IVORY,IVORY,TRIM4#
main74320-89106-03i198308-198408
LIGHT GRAY,GRAY,TRIM1#,8#
main74320-89106-08i198503-198608
IVORY,IVORY,TRIM4#
main74320-89107-03i198503-198508
LIGHT GRAY,GRAY,TRIM1#,8#
main74320-89107-05i198608-198903
BEIGE,BEIGE,TRIM4#
main74320-89107-08i198308-198408
IVORY,IVORY,TRIM4#
main74320-89107-13i198608-198903
GRAY,GRAY,TRIM1#,8#
main74320-89109-03i198403-198408
LIGHT GRAY,GRAY,TRIM1#,8#
main74320-89109-08i198403-198408
IVORY,IVORY,TRIM4#
main74320-89110-03i198408-198508
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89110-08i198408-198508
IVORY,IVORY,TRIM4#
main74320-89111-03i198408-198503
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89111-08i198408-198503
IVORY,IVORY,TRIM4#
main74320-89112-02i198608-198903
RED,RED,TRIM3#
main74320-89112-03i198408-198508
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89112-05i198608-198903
BEIGE,BEIGE,TRIM4#
main74320-89112-08i198408-198508
IVORY,IVORY,TRIM4#
main74320-89112-13i198608-198903
GRAY,GRAY,TRIM1#,8#
main74320-89113-03i198408-198503
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89113-08i198408-198503
IVORY,IVORY,TRIM4#
main74320-89114-02i198608-198903
RED,RED,TRIM3#
main74320-89114-03i198508-198608
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89114-05i198608-198903
BEIGE,BEIGE,TRIM4#
main74320-89114-08i198508-198608
IVORY,IVORY,TRIM4#
main74320-89114-13i198608-198903
GRAY,GRAY,TRIM1#,8#
main74320-89115-03i198408-198503
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89115-08i198408-198503
IVORY,IVORY,TRIM4#
main74320-89116-02i198708-198808
RED,RED,TRIM3#
main74320-89116-03i198508-198608
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89116-05i198708-198808
BEIGE,BEIGE,TRIM4#
main74320-89116-08i198508-198608
IVORY,IVORY,TRIM4#
main74320-89116-13i198608-198708
GRAY,GRAY,TRIM1#,8#
main74320-89117-02i198608-198903
RED,RED,TRIM3#
main74320-89117-03i198508-198608
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89117-05i198608-198903
BEIGE,BEIGE,TRIM4#
main74320-89117-08i198508-198608
IVORY,IVORY,TRIM4#
main74320-89117-13i198608-198903
GRAY,GRAY,TRIM1#,8#
main74320-89118-02i198608-198708
RED,RED,TRIM3#
main74320-89118-03i198508-198608
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89118-05i198608-198708
BEIGE,BEIGE,TRIM4#
main74320-89118-08i198508-198608
IVORY,IVORY,TRIM4#
main74320-89118-13i198708-198808
FB,GRAY,GRAY,TRIM1#,8#
main74320-89119-02i198608-198708
RED,RED,TRIM3#
main74320-89119-03i198508-198608
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89119-05i198708-198903
FB,BEIGE,BEIGE,TRIM4#
main74320-89119-08i198508-198608
IVORY,IVORY,TRIM4#
main74320-89119-13i198608-198708
GRAY,GRAY,TRIM1#,8#
main74320-89120-02i198708-198903
FB,RED,RED,TRIM3#
main74320-89120-03i198508-198608
LIGHT GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89120-05i198708-198903
FB,BEIGE,BEIGE,TRIM4#
main74320-89120-08i198508-198608
IVORY,IVORY,TRIM4#
main74320-89120-13i198708-198903
FB,GRAY,GRAY,TRIM1#,8#
74348HOLDER, VISOR
main74348-14010-02×2i198608-198903
RED,RED,TRIM3#
main74348-14010-18×2i198308-198608
IVORY,IVORY,TRIM4#
main74348-14010-23×2i198308-198312
LIGHT GRAY,GRAY,TRIM1#,8#
main74348-14010-25×2i198608-198808
BEIGE,BEIGE,TRIM4#
main74348-14010-33×2i198312-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74348-14010-43×2i198608-198903
GRAY,GRAY,TRIM1#,8#
main74348-89101-05i198808-198903
BEIGE,BEIGE,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-10020-10i198708-198808
GRAY,GRAY,TRIM1#,8#
main74610-10020-12i198708-198808
RED,RED,TRIM3#
main74610-10020-13i198403-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74610-10020-28i198403-198608
IVORY,IVORY,TRIM4#
main74610-10020-55i198608-198903
BEIGE,BEIGE,TRIM4#
main74611-89101-02i198708-198903
RED,RED,TRIM3#
main74611-89101-08i198508-198608
IVORY,IVORY,TRIM4#
main74611-89101-15i198708-198808
BEIGE,BEIGE,TRIM4#
main74611-89101-23i198308-198312
LIGHT GRAY,GRAY,TRIM1#,8#
main74611-89101-33i198312-198508
LIGHT GRAY,GRAY,TRIM1#,8#
main74611-89101-43i198608-198808
GRAY,GRAY,TRIM1#,8#
74603BCLIP (FOR ASSIST GRIP)
main90467-04008-03×4i198403-198608
GRAY,GRAY,TRIM1#
main90467-04008-08×4i198403-198608
IVORY,IVORY,TRIM4#
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-10020-10×2i198608-198903
GRAY,GRAY,TRIM1#
main74610-10020-12×2i198608-198903
RED,RED,TRIM3#
main74610-10020-13×2i198403-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74610-10020-28i198508-198608
IVORY,IVORY,TRIM4#
main74610-10020-55×2i198608-198903
BEIGE,BEIGE,TRIM4#
main74611-89101-02i198708-198903
RED,RED,TRIM3#
main74611-89101-08×2i198403-198608
IVORY,IVORY,TRIM4#
main74611-89101-15i198708-198903
BEIGE,BEIGE,TRIM4#
main74611-89101-33×2i198403-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74611-89101-43i198708-198903
GRAY,GRAY,TRIM1#
74613PLUG, ASSIST GRIP
main74617-14010-13×2i198403-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74617-14010-20×2i198608-198903
GRAY,GRAY,TRIM1#
main74617-14010-22×2i198708-198808
RED,RED,TRIM3#
main74617-14010-28×6i198403-198608
IVORY,IVORY,TRIM4#
main74617-14010-55×2i198608-198903
BEIGE,BEIGE,TRIM4#
74641HOOK, COAT, B
main74631-89101-02×2i198804-198903
RED,RED,TRIM3#
main74631-89101-03×2i198403-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74631-89101-05×2i198804-198903
BEIGE,BEIGE,TRIM4#
main74631-89101-08×2i198403-198608
IVORY,IVORY,TRIM4#
main74631-89101-13×2i198804-198903
GRAY,GRAY,TRIM1#
74810PULL ASSY, DOOR, INSIDE
main69285-89101-03×2i198308-198408
GRAY,GRAY,TRIM1#
main69285-89101-06×2i198308-198408
BROWN,BROWN,TRIM4#
main69285-89101-14×2i198308-198408
BLUE,BLUE,TRIM8#
main74811-89104-02×2i198708-198903
RED,RED,TRIM3#
main74811-89104-03×2i198508-198608
GRAY,GRAY,TRIM1#
main74811-89104-04×2i198508-198608
BLUE,BLUE,TRIM8#
main74811-89104-05×2i198608-198708
BEIGE,BEIGE,TRIM4#
main74811-89104-06×2i198508-198608
BROWN,BROWN,TRIM4#
main74811-89104-13×2i198608-198708
GRAY,GRAY,TRIM1#
main74811-89104-14×2i198608-198708
BLUE,BLUE,TRIM8#
9015960216
main90159-60216
9016460017
main90164-60017
9016845004
main90168-45004
9016845005
main90168-45005
9018906018
main90189-06018
9353045016
main93530-45016
9354045014
main93540-45014

18 parts on this diagram · 3 diagrams in section
