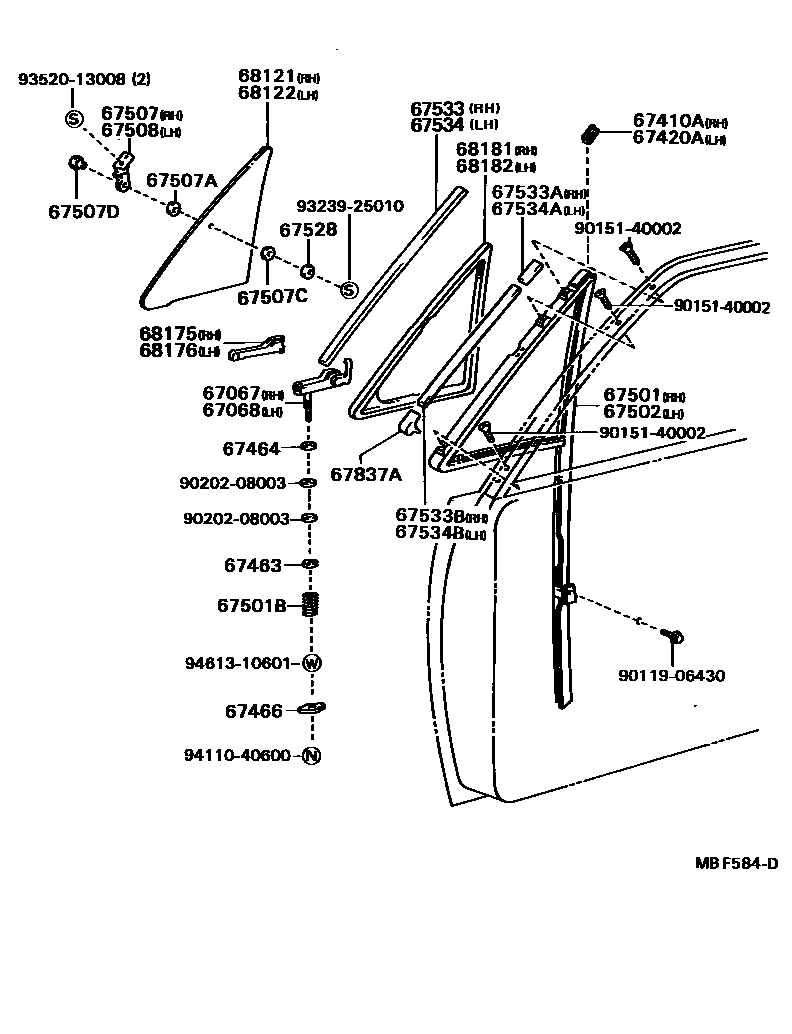

FRONT DOOR VENTILATOR WINDOW

67067FRAME SUB-ASSY, VENT WINDOW LOCK, RH

main67067-89101iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198508-198708

67068FRAME SUB-ASSY, VENT WINDOW LOCK, LH

main67068-89101iLN5#,65,RN5#,6#198308-198508

67410ASEAL, FRONT DOOR DIVISION BAR, RH NO.1

main67533-89101iLN5#,65,RN5#,6#198308-198508

67420ASEAL, FRONT DOOR DIVISION BAR, LH NO.1

main67534-89101iLN5#,65,RN5#,6#198308-198508

67463WASHER, FRONT DOOR VENTILATING WIHDOW LOWER PIVOT

main67463-20011×2iLN5#,65,RN5#,6#198308-198508

67464STOPPER, FRONT DOOR VENTILATING WINDOW OPENING

main67464-89102×2iLN5#,65,RN5#,6#198308-198508

67466WASHER, LOCK(FOR VENT WINDOW GLASS FRAME)

main67466-89101×2iLN5#,65,RN5#,6#198308-198508

67501FRAME SUB-ASSY, VENT WINDOW GLASS, RH

main67505-89103iLN5#,65,RN5#,6#198308-198508

67501BSPRING, COMPRESSION(FOR VENT WINDOW GLASS FRAME)

main90501-40205×2iLN5#,65,RN5#,6#198308-198508

67502FRAME SUB-ASSY, VENT WINDOW GLASS, LH

main67506-89103iLN5#,65,RN5#,6#198308-198508

67507PIVOT SUB-ASSY, VENT WINDOW, UPPER RH

main67507-89103iLN5#,65,RN5#,6#198308-198508

67507AGASKET, VENT WINDOW PIVOT, UPPER NO.1

main90430-07001×2iLN5#,65,RN5#,6#198308-198508

67507CGASKET, VENT WINDOW PIVOT, UPPER NO.2

main90430-04003×2iLN5#,65,RN5#,6#198308-198508

67507DRETAINER, VENT WINDOW PIVOT, UPPER

main62735-89101×2iLN5#,65,RN5#,6#198308-198508

67508PIVOT SUB-ASSY, VENT WINDOW, UPPER LH

main67508-89103iLN5#,65,RN5#,6#198308-198508

67528PLATE, VENT WINDOW UPPER PIVOT

main67528-89101×2iLN5#,65,RN5#,6#198308-198508

67533SEAL, FRONT DOOR DIVISION BAR, RH NO.2

main67533-89102iLN5#,65,RN5#,6#198308-198508

67533ASEAL, FRONT DOOR DIVISION BAR, RH NO.3

main67533-89103iLN5#,65,RN5#,6#198408-198508

L=20

67533BSEAL, FRONT DOOR DIVISION BAR, RH NO.4

main67533-89104iLN5#,65,RN5#,6#198408-198508

L=230

67534SEAL, FRONT DOOR DIVISION BAR, LH NO.2

main67533-89102iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198508-198708

67534ASEAL, FRONT DOOR DIVISION BAR, LH NO.3

main67533-89103iLN56,66,RN5#,6#,7#..DLX,SDT,SR5,STD198508-198708

L=20

67534BSEAL, FRONT DOOR DIVISION BAR, LH NO.4

main67533-89104iLN5#,65,RN5#,6#198408-198508

L=230

67837ASEAL, FRONT DOOR VENT, RH

main67837-89102×2iLN5#,65,RN5#,6#198408-198508

68121GLASS, VENT WINDOW, RH

main68121-89109iLN5#,6#,RN5#,6#,7#,VZN6#..DLX,SDT,STD198308-198903

*TEM,T=4.0,*TEM,T=4.0

main68121-89110iLN56,65,RN5#,6#..DLX,SR5,SRT198308-198508

*TT,T=4.0,*TT,T=4.0

main68121-89111iRN60,61,VZN61..(V,WG)..SR5198403-198903

*TT,T=4.0,BRONZE,*TT,T=4.0,BRONZE

68122GLASS, VENT WINDOW, LH

main68122-89107iLN5#,6#,RN5#,6#,7#,VZN6#..DLX,SDT,STD198308-198903

*TEM,T=4.0,*TEM,T=4.0

main68122-89108iRN5#,6#,7#,VZN6#..USA;RN55..STD..HLF..CND..EFI; RN55,6#,VZN6#..DLX,SR5198708-198903

*TT,T=4.0,*TT,T=4.0

main68122-89109iRN60,61,VZN61..(V,WG)..SR5198403-198903

*TT,T=4.0,BRONZE,*TT,T=4.0,BRONZE

68175WEATHERSTRIP, VENT WINDOW FRAME, RH

main68175-89109iLN5#,65,RN5#,6#198308-198508

68176WEATHERSTRIP, VENT WINDOW FRAME, LH

main68176-89102iLN5#,65,RN5#,6#198308-198508

68181WEATHERSTRIP, VENT WINDOW, NO.1 RH

main68181-89105iLN5#,65,RN5#,6#198308-198508

68182WEATHERSTRIP, VENT WINDOW, NO.1 LH

main68182-89105iLN5#,65,RN5#,6#198308-198508

9011906430

main90119-06430

9015140002

main90151-40002

9020208003

main90202-08003

9323925010

main93239-25010

9352013008

main93520-13008

9411040600

main94110-40600

9461310601

main94613-10601

36 parts on this diagram · 1 diagram in section
