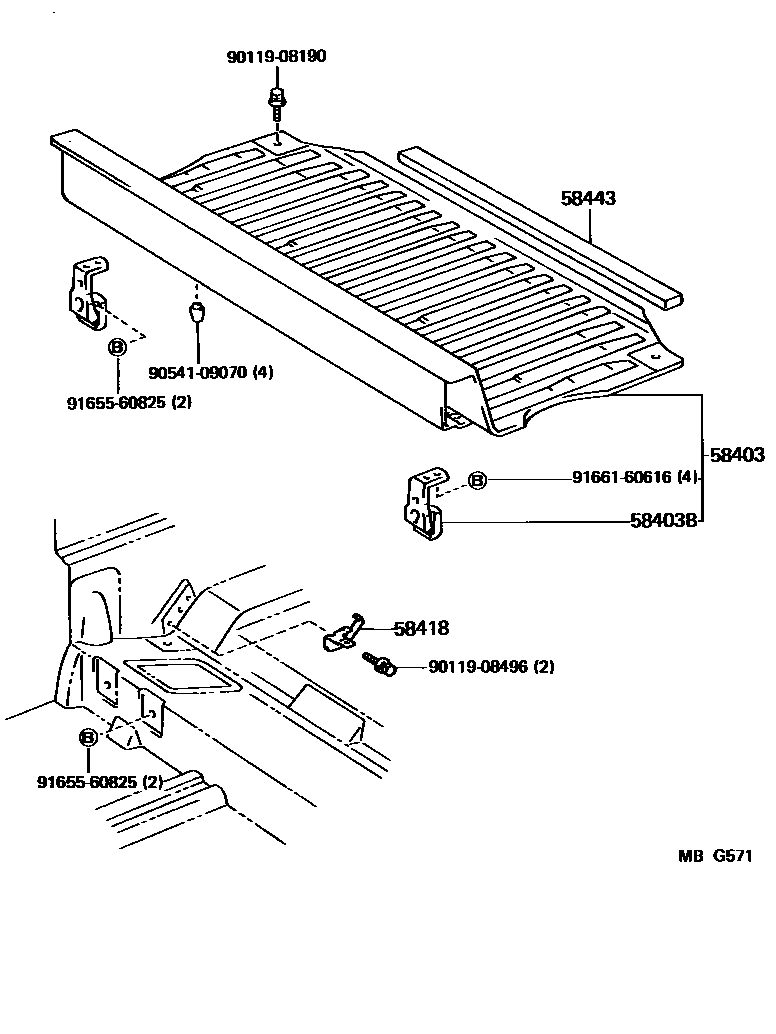

DECK BOARD & DECK TRIM COVER

58403BOARD SUB-ASSY, DECK

main58401-89101iRN61,VZN61..V..USA198608-198903

58403BHINGE, DECK BOARD

main71301-89101×2iRN60..V..USA198403-198508

main71301-89102×2iRN61,VZN61..V..USA198508-198903

58418BRACKET, DECK BOARD, NO.1

main58416-89101iRN61,VZN61..V..USA198608-198903

RH

main58417-89101iRN60,61..V..USA198403-198608

LH

58443CUSHION, DECK BOARD, NO.1

main58443-89101iRN60,61..V..USA198403-198608

9011908190

main90119-08190

9011908496

main90119-08496

9054109070

main90541-09070

9165560825

main91655-60825

9166160616

main91661-60616

9 parts on this diagram · 1 diagram in section
