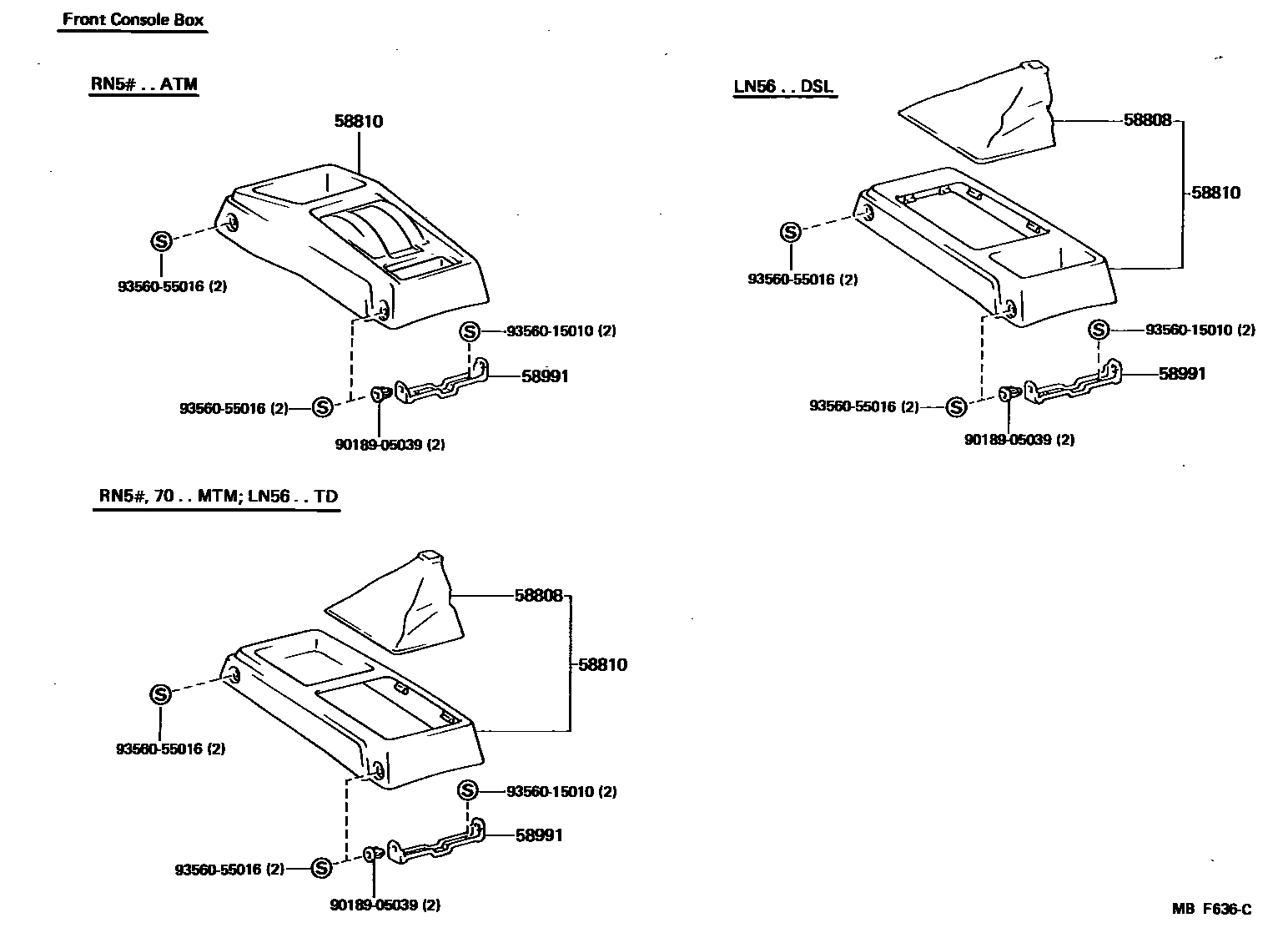

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-89103iRN70..W198308-198608

main58808-89103-02iRN55..5F..HLF..EFI198608-198808

RED,RED,TRIM3#

main58808-89103-03iRN70..W..DLX198608-198808

GRAY,GRAY,TRIM1#

main58808-89103-04iRN55..5F..HLF..EFI198608-198808

BLUE,BLUE,TRIM8#

main58808-89103-05iRN70..W..DLX198608-198808

BEIGE,BEIGE,TRIM4#

main58808-89104iRN55..R198309-198608

main58808-89104-02iRN55..TBO198608-198808

RED,RED,TRIM3#

main58808-89104-03iRN70..G..DLX198608-198808

GRAY,GRAY,TRIM1#

main58808-89104-04iRN55..TBO198608-198808

BLUE,BLUE,TRIM8#

main58808-89104-05iRN70..G..DLX198608-198808

BEIGE,BEIGE,TRIM4#

main58808-89105iLN65,RN65,66..XTR..G..DLX198308-198608

main58808-89105-02iRN66..TBO198608-198708

RED,RED,TRIM3#

main58808-89105-03iRN66..XTR..(CBR,TBO)198608-198708

GRAY,GRAY,TRIM1#

main58808-89105-04iRN66..XTR..(CBR,TBO)198608-198708

BLUE,BLUE,TRIM8#

main58808-89105-05iRN66..XTR..(CBR,TBO)198608-198708

BEIGE,BEIGE,TRIM4#

main58808-89108-01iLN66,RN6#..5F..HLF..(EFI,TD)198408-198608

BLACK,BLACK

main58808-89108-02iRN6#..W..HLF198608-198708

RED,RED,TRIM3#

main58808-89108-05iRN6#..W..HLF198608-198708

BEIGE,BEIGE,TRIM4#

main58808-89108-13iLN66198608-198708

GRAY,GRAY,TRIM1#

main58808-89108-14iLN66198608-198708

BLUE,BLUE,TRIM8#

main58808-89111-02iVZN61..R..(DLX,SR5)198711-198903

RED,RED,TRIM3#

main58808-89111-03iVZN66..XTR..R198711-198903

GRAY,GRAY,TRIM1#

main58808-89111-04iVZN61..SR5..HLF198711-198903

BLUE,BLUE,TRIM8#

main58808-89111-05iVZN61..R..(DLX,SR5)198711-198903

BEIGE,BEIGE,TRIM4#

main58808-89112-02iRN66..W..SR5198708-198903

RED,RED,TRIM3#

main58808-89112-03iRN66..XTR..W198708-198903

GRAY,GRAY,TRIM1#

main58808-89112-04iRN66..XTR..W198708-198808

BLUE,BLUE,TRIM8#

main58808-89112-05iRN61..W..(DLX,SR5)198708-198903

BEIGE,BEIGE,TRIM4#

58810CONSOLE ASSY

main58802-89101-03iRN5#..4FC198308-198508

GRAY,GRAY,TRIM1#

main58802-89101-04iRN5#..4FC198308-198508

BLUE,BLUE,TRIM8#

main58802-89101-06iRN5#..4FC198308-198508

BROWN,BROWN,TRIM4#

main58802-89102-02iRN55..5F..HLF..EFI198608-198808

RED,RED,TRIM3#

main58802-89102-03iRN70..W198308-198608

GRAY,GRAY,TRIM1#

main58802-89102-04iLN56..XTR..TD198308-198608

BLUE,BLUE,TRIM8#

main58802-89102-05iRN70..W..DLX198608-198808

BEIGE,BEIGE,TRIM4#

main58802-89102-06iLN56..XTR..TD198308-198608

BROWN,BROWN,TRIM4#

main58802-89102-13iRN70..W..DLX198608-198808

GRAY,GRAY,TRIM1#

main58802-89102-14iRN70..W..DLX198608-198808

BLUE,BLUE,TRIM8#

main58802-89103-02iRN55..TBO198608-198808

RED,RED,TRIM3#

main58802-89103-03iLN56..XTR..DSL198309-198608

GRAY,GRAY,TRIM1#

main58802-89103-04iRN55..R198309-198608

BLUE,BLUE,TRIM8#

main58802-89103-05iRN70..G..DLX198608-198808

BEIGE,BEIGE,TRIM4#

main58802-89103-06iRN55..R198309-198608

BROWN,BROWN,TRIM4#

main58802-89103-13iRN55..TBO198608-198808

GRAY,GRAY,TRIM1#

main58802-89103-14iRN55..TBO198608-198808

BLUE,BLUE,TRIM8#

main58802-89104-02iRN66..TBO198608-198708

RED,RED,TRIM3#

main58802-89104-03iRN6#..SR5..HLF198308-198608

GRAY,GRAY,TRIM1#

main58802-89104-04iLN65,RN65,66..XTR..G..DLX198308-198608

BLUE,BLUE,TRIM8#

main58802-89104-05iRN66..XTR..(CBR,TBO)198608-198708

BEIGE,BEIGE,TRIM4#

main58802-89104-06iRN6#..SR5..HLF198308-198608

BROWN,BROWN,TRIM4#

main58802-89104-13iRN66..XTR..(CBR,TBO)198608-198708

GRAY,GRAY,TRIM1#

main58802-89104-14iRN66..XTR..(CBR,TBO)198608-198708

BLUE,BLUE,TRIM8#

main58802-89105-02iRN61..(V,WG)..W198608-198708

RED,RED,TRIM3#

main58802-89105-03iRN6#..5F..HLF..EFI198408-198608

GRAY,GRAY,TRIM1#

main58802-89105-04iLN66198408-198608

BLUE,BLUE,TRIM8#

main58802-89105-05iRN6#..W..HLF198608-198708

BEIGE,BEIGE,TRIM4#

main58802-89105-06iRN6#..5F..HLF..EFI198408-198608

BROWN,BROWN,TRIM4#

main58802-89105-13iRN6#..W..HLF198608-198708

GRAY,GRAY,TRIM1#

main58802-89105-14iRN6#..W..HLF198608-198708

BLUE,BLUE,TRIM8#

main58802-89107-02iRN55..4FC198608-198808

RED,RED,TRIM3#

main58802-89107-03iRN55..TBO198501-198608

GRAY,GRAY,TRIM1#

main58802-89107-04iRN55..4FC198501-198608

BLUE,BLUE,TRIM8#

main58802-89107-05iRN75..DLX..USA198608-198808

BEIGE,BEIGE,TRIM4#

main58802-89107-06iRN55..4FC198501-198608

BROWN,BROWN,TRIM4#

main58802-89107-13iRN75..DLX..USA198608-198808

GRAY,GRAY,TRIM1#

main58802-89107-14iRN75..DLX..USA198608-198808

BLUE,BLUE,TRIM8#

main58802-89108-02iRN6#,VZN6#..4FC..(SR5,SRT)198608-198903

RED,RED,TRIM3#

main58802-89108-03iRN6#..4FC198501-198608

GRAY,GRAY,TRIM1#

main58802-89108-04iRN6#..4FC198501-198608

BLUE,BLUE,TRIM8#

main58802-89108-05iRN6#,VZN6#..4FC198608-198903

BEIGE,BEIGE,TRIM4#

main58802-89108-06iRN6#..4FC198501-198608

BROWN,BROWN,TRIM4#

main58802-89108-13iRN6#,VZN6#..4FC198608-198903

GRAY,GRAY,TRIM1#

main58802-89108-14iRN66,VZN66..4FC198608-198808

BLUE,BLUE,TRIM8#

main58802-89111-02iVZN61..R..(DLX,SR5)198711-198903

RED,RED,TRIM3#

main58802-89111-03iVZN66..XTR..R198711-198903

GRAY,GRAY,TRIM1#

main58802-89111-04iVZN66..XTR..R198711-198903

BLUE,BLUE,TRIM8#

main58802-89111-05iVZN61..R..(DLX,SR5)198711-198903

BEIGE,BEIGE,TRIM4#

main58802-89112-02iRN61..W..SR5198708-198903

RED,RED,TRIM3#

main58802-89112-03iRN66..XTR..W198708-198903

GRAY,GRAY,TRIM1#

main58802-89112-04iRN66..XTR..W198708-198903

BLUE,BLUE,TRIM8#

main58802-89112-05iRN66..XTR..W198708-198903

BEIGE,BEIGE,TRIM4#

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-89101iVZN61..R..(DLX,SR5)198308-198903

main58991-89102iRN66..XTR..W198408-198903

9018905039

main90189-05039

9356015010

main93560-15010

9356055016

main93560-55016

6 parts on this diagram · 7 diagrams in section
