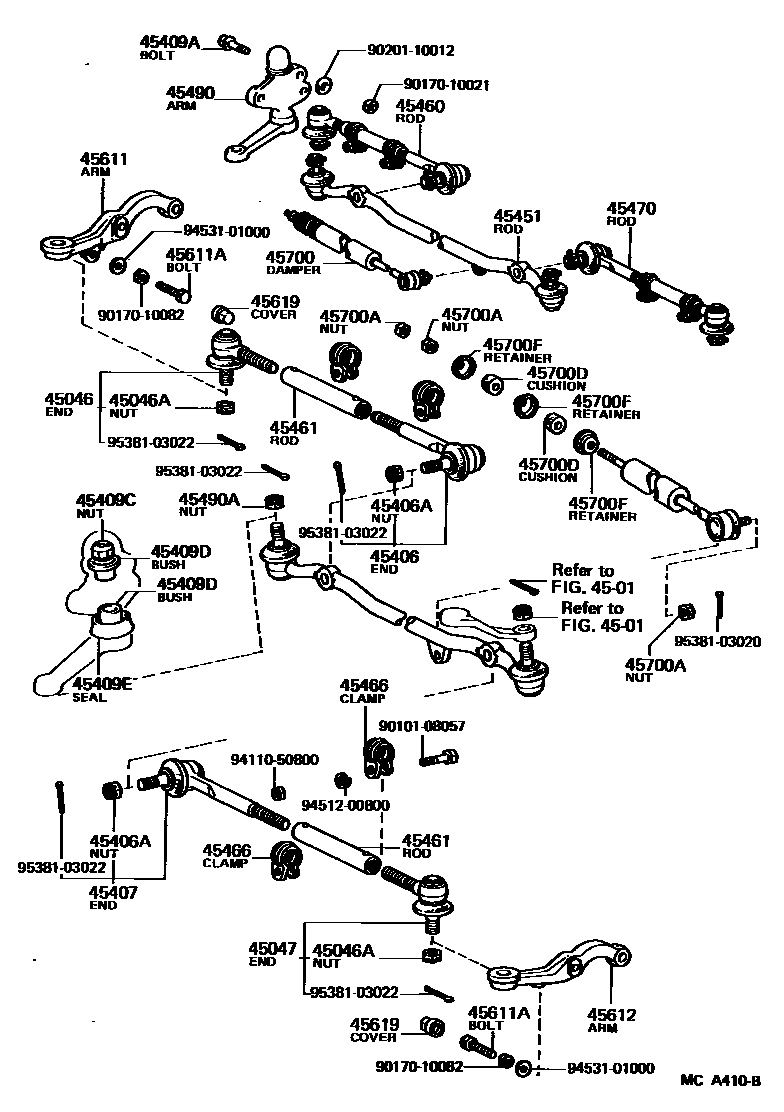

FRONT STEERING GEAR & LINK

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0012 1 0013 1 0015 1

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45046END SUB-ASSY, TIE ROD, RH

main45046-29125iLN66,RN6#,VZN6#198508-198903

main45046-35080iLN65,RN6#198308-198508

main45046-39175iLN5#,RN5#,7#198308-198808

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iLN5#,6#,RN5#,6#,7#,VZN6#198308-198903

45047END SUB-ASSY, TIE ROD, LH

main45046-29125iLN66,RN6#,VZN6#198508-198903

main45046-39175iLN5#,RN5#,7#198308-198808

main45047-35050iLN65,RN6#198308-198508

45406ROD SUB-ASSY, TIE, RH

main45406-39125iLN5#,RN5#,7#198308-198808

main45406-39135iLN66,RN6#,VZN6#198508-198903

45406ANUT, CASTLE(FOR TIE ROD)

main90171-14042×2iLN5#,66,RN5#,61,66,7#,VZN6#198308-198903

45407ROD SUB-ASSY, TIE, LH

main45406-39125iLN5#,RN5#,7#198308-198808

main45406-39135iLN66,RN6#,VZN6#198508-198903

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90101-10113×3iLN5#,RN5#,7#198308-198808

*10-1.25PX93-25

45409CNUT(FOR IDLER ARM SUPPORT)

main94184-61400iLN5#,66,RN5#,61,66,7#,VZN6#198308-198903

45409DBUSH(FOR IDLER ARM)

main90385-18068iLN5#,66,RN5#,61,66,7#,VZN6#198308-198903

45409ESEAL, DUST(FOR IDLER ARM SUPPORT)

main90304-31012iLN5#,66,RN5#,61,66,7#,VZN6#198308-198903

45451ROD, STEERING RELAY

main45450-39135iLN5#,RN5#,7#..DLX,SR5,STD198308-198608

main45450-39145iLN56,RN5#..(DLX,SR5,SRT)..HLF198308-198503

W/POWER STEERING

main45451-39015iLN66,RN6#,VZN6#198508-198903

45460ROD ASSY, TIE, RH

main45460-39205iLN65,RN6#198308-198508

main45460-39225iLN5#,RN5#,7#198308-198808

main45460-39245iLN66,RN6#,VZN6#198508-198903

45461ROD, STEERING TIE

main45461-35100iLN65,RN6#198308-198508

main45465-35020×2iLN5#,RN5#,7#198308-198808

main45465-35030iLN66,RN6#,VZN6#198508-198903

45466CLAMP, TIE ROD END

main45466-30020×4iLN5#,66,RN5#,61,66,7#,VZN6#198308-198903

main45466-55010×2iLN65,RN6#198308-198508

45470ROD ASSY, TIE, LH

main45460-39225iLN5#,RN5#,7#198308-198808

main45470-39055iLN66,RN6#,VZN6#198508-198903

45490ARM ASSY, STEERING IDLER

main45490-35140iLN5#,RN5#,7#198308-198808

main45490-39245iLN66,RN6#,VZN6#198508-198808

main45490-39325iRN61,VZN61198808-198903

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iLN5#,66,RN5#,61,66,7#,VZN6#198308-198903

45611ARM, STEERING KNUCKLE, RH

main45611-35120iLN5#,RN5#,7#198308-198808

main45611-35130iLN66,RN6#,VZN6#198508-198903

main45612-35140iLN65,RN6#198308-198508

45611ABOLT, KNUCKLE STOPPER

main90106-10032×2iLN5#,RN5#,7#198308-198808

main90106-12022×2iLN66,RN6#,VZN6#198508-198903

45612ARM, STEERING KNUCKLE, LH

main45601-35081iLN65,RN6#198308-198508

main45612-35120iLN5#,RN5#,7#198308-198808

main45612-35150iLN66,RN6#,VZN6#198508-198903

45619COVER, KNUCKLE STOPPER

main45619-14020×2iLN5#,RN5#,7#198308-198808

main45619-36010×2iLN66,RN6#,VZN6#198511-198903

45700DAMPER ASSY, STEERING

main45700-39035iLN5#,RN5#,60,65,7#198308-198808

main45700-39045iLN66,RN6#,VZN6#198508-198808

main45700-39046iRN61,VZN61198808-198903

45700ANUT(FOR STEERING DAMPER)

main90171-12028iLN5#,65,RN5#,60,65,7#198308-198808

TIE ROD X DAMPER

main94110-41000iLN66,RN6#,VZN6#198508-198903

FRAME X DAMPER

main94182-10800iLN5#,65,RN5#,60,65,7#198308-198808

HOUSING X DAMPER

45700DCUSHION, STEERING DAMPER

main90948-01001×2iLN5#,65,RN5#,60,65,7#198308-198808

45700FRETAINER, STEERING DAMPER CUSHION

main90948-02003×2iLN5#,65,RN5#,60,65,7#198308-198808

OD=28

main90948-02006iLN5#,65,RN5#,60,65,7#198308-198808

OD=26

9010108057

main90101-08057

9017010021

main90170-10021

9017010082

main90170-10082

9020110012

main90201-10012

9411050800

main94110-50800

9451200800

main94512-00800

9453101000

main94531-01000

9538103020

main95381-03020

9538103022

main95381-03022

35 parts on this diagram · 12 diagrams in section
