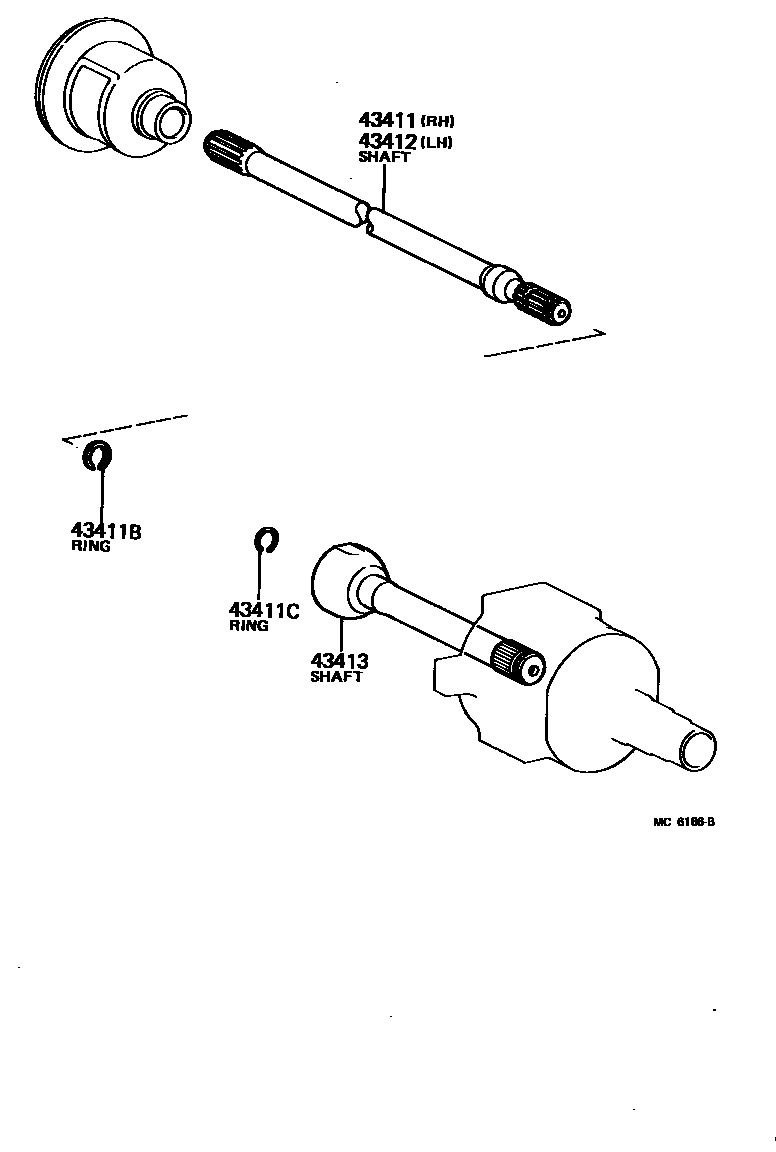

FRONT DRIVE SHAFT

0001 1 0002 1

43411SHAFT, FRONT AXLE, INNER RH

main43411-35010iLN65,RN6#198308-198508

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-28036×2iLN65,RN6#198308-198508

main90520-29028iLN66,RN6#,VZN6#198508-198903

43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)

main90520-27091×2iLN65,RN6#198308-198508

43412SHAFT, FRONT AXLE, INNER LH

main43412-35010iLN65,RN6#198308-198508

43413SHAFT, DRIVE

main43405-60015×2iLN65,RN6#198308-198508

sub43405-60016

5 parts on this diagram · 2 diagrams in section
