TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

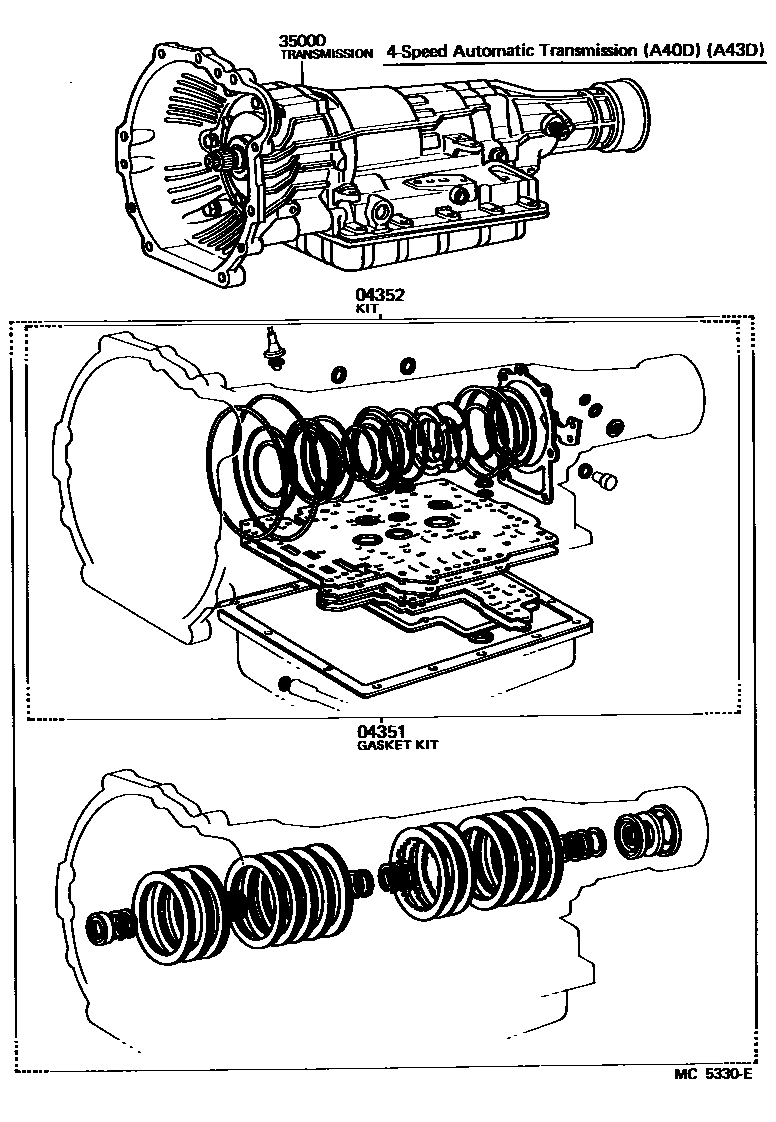

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30073i198308-198408

main04351-30074i198408-198409

main04351-30075i198409-198505

main04351-30090i198501-198608

main04351-30110i198505-198808

main04351-35020i198501-198608

main04351-35021i198608-198610

main04351-35022i198610-198903

04352KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04352-35020i198308-198409

main04352-35021i198409-198505

main04352-35030i198501-198608

main04352-35031i198608-198610

main04352-35032i198610-198903

main04352-35040i198501-198608

main04352-35050i198505-198808

main04352-35070i198711-198903

35000TRANSMISSION ASSY, AUTOMATIC

main35000-35210i198308-198408

main35000-35211i198508-198601

W/7.00-14 TIRE

main35000-35212i198601-198808

W/7.00-14 TIRE

main35000-35220i198308-198508

W/ER78-14 OR P195/75R14 TIRE

main35000-35221i198508-198601

W/P195/75R14 TIRE

main35000-35222i198601-198708

W/P195/75R14 TIRE

main35000-35230i198308-198508

main35000-35231i198508-198601

main35000-35232i198601-198608

main35000-35233i198608-198808

main35000-35260i198408-198508

main35000-35261i198508-198512

main35000-35262i198601-198608

main35000-35263i198608-198704

main35000-35264i198704-198808

main35000-35270i198501-198601

main35000-35271i198601-198608

main35000-35280i198501-198601

main35000-35281i198601-198608

main35000-35282i198608-198708

main35000-35283i198708-198808

main35000-35290i198508-198601

main35000-35291i198601-198608

main35000-35292i198608-198708

main35000-35300i198711-198903

main35000-35330i198512-198601

main35000-35331i198601-198608

main35000-35332i198608-198704

main35000-35333i198708-198808

main35000-35350i198708-198808

main35000-35360i198708-198808

main35000-35550i198808-198903

3 parts on this diagram · 3 diagrams in section
