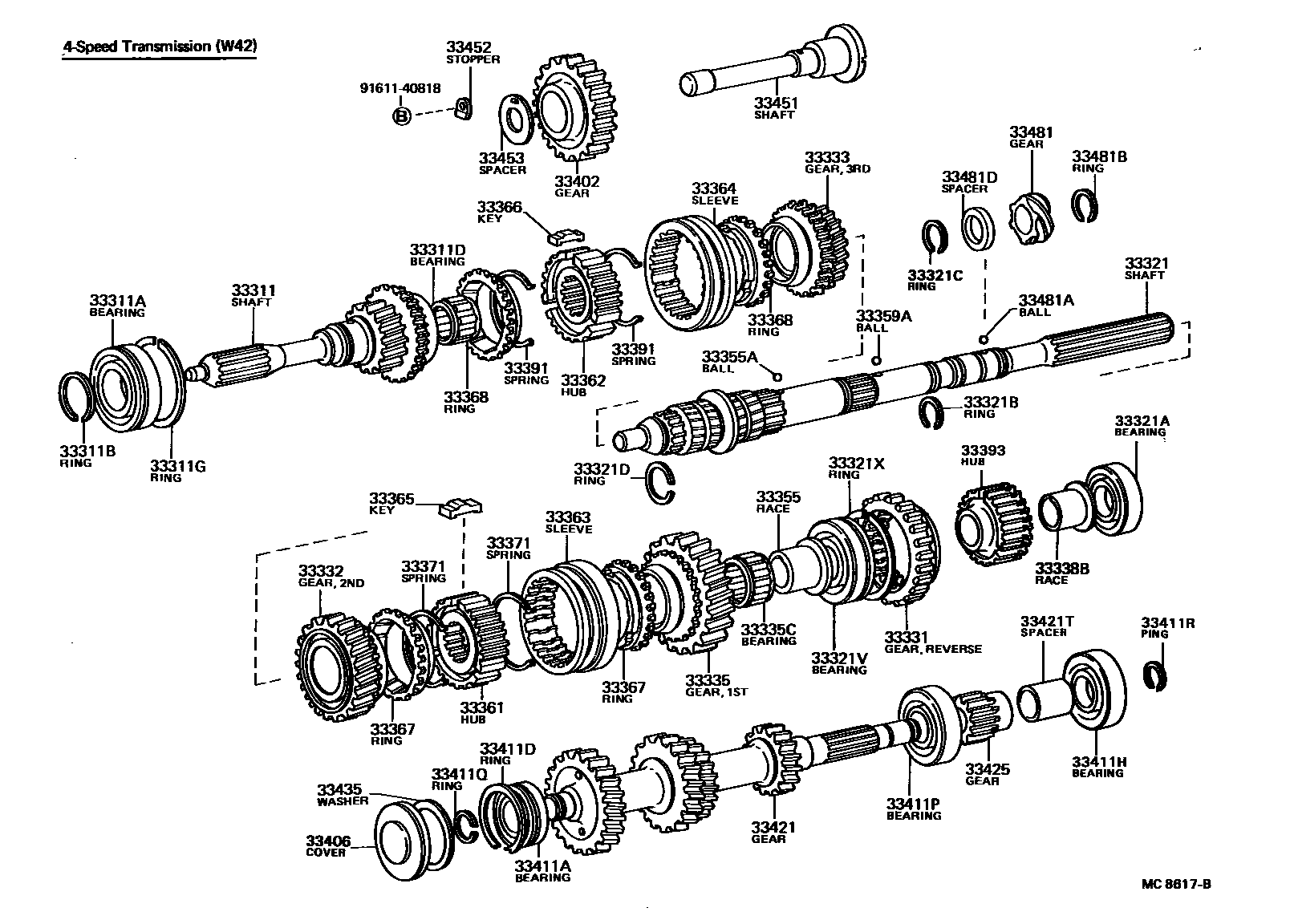

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0,T=2.05
T=2.10,MARK 1,T=2.10
T=2.15,MARK 2,T=2.15
T=2.20,MARK 3,T=2.20
T=2.25,MARK 4,T=2.25
T=2.30,MARK 5,T=2.30
T=2.30-2.35,MARK 11,T=2.30
T=2.35-2.40,MARK 12,T=2.35
T=2.05,MARK 1,T=2.05
T=2.10,MARK 2,T=2.10
T=2.15,MARK 3,T=2.15
T=2.20,MARK 4,T=2.20
T=2.25,MARK 5,T=2.25
T=2.10,MARK A,T=2.10
T=2.15,MARK B,T=2.15
T=2.20,MARK C,T=2.20
T=2.25,MARK D,T=2.25
T=2.30,MARK E,T=2.30
T=2.35,MARK F,T=2.35
T=2.40,MARK G,T=2.40
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.68,MARK 14,T=2.68
T=2.74,MARK 15,T=2.74
T=2.67-2.72,MARK A,T=2.67
T=2.67-2.72,MARK A
T=2.73-2.78,MARK B,T=2.73
T=2.73-2.78,MARK B
T=2.79-2.84,MARK C,T=2.79
T=2.79-2.84,MARK C
T=2.85-2.90,MARK D
T=2.85-2.90,MARK D,T=2.85
T=2.91-2.96,MARK E
T=2.91-2.96,MARK E,T=2.91
T=2.97-3.02,MARK F,T=2.97
T=2.97-3.02,MARK F
T=3.03-3.08,MARK G
T=3.03-3.08,MARK G,T=3.03
T=3.09-3.14,MARK H,T=3.09
T=3.09-3.14,MARK H
T=3.15-3.20,MARK J
T=3.15-3.20,MARK J,T=3.15
T=3.21-3.26,MARK K,T=3.21
T=3.21-3.26,MARK K
T=3.27-3.32,MARK L
T=3.27-3.32,MARK L,T=3.27
T=2.43-2.48,MARK 10,T=2.43
T=2.49-2.54,MARK 11,T=2.49
T=2.55-2.60,MARK 12,T=2.55
T=2.61-2.66,MARK 13,T=2.61
T=1.94
T=2.00
T=2.06
T=2.12
T=2.18
T=2.24
T=2.30
T=2.31-2.36,MARK 8,T=2.36
T=2.37-2.42,MARK 9,T=2.37
T=2.65,MARK A,T=2.65
T=2.70,MARK B,T=2.70
T=2.75,MARK C,T=2.75
T=2.80,MARK D,T=2.80
T=2.85,MARK E,T=2.85
T=2.90,MARK F,T=2.90
T=2.95,MARK G,T=2.95
T=3.00,MARK H,T=3.00
T=3.05,MARK J,T=3.05
T=3.10,MARK K,T=3.10
T=3.15,MARK L,T=3.15
T=3.20,MARK M,T=3.20
T=3.25,MARK N,T=3.25
T=3.30,MARK P,T=3.30
T=3.35,MARK Q,T=3.35
T=3.40,MARK R,T=3.40
T=3.45,MARK S,T=3.45
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.50,OD=31.3
T=1.65,ID=71.1
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.85-1.90,MARK D-1,T=1.85
T=1.95-2.00,MARK E-1,T=1.95
T=1.75-1.80,MARK C-1,T=1.75
T=2.05-2.10,MARK F-1,T=2.05
T=1.80-1.85,MARK D,T=1.80
T=1.90-1.95,MARK E,T=1.90
T=2.00-2.05,MARK F,T=2.00
T=1.80,MARK A,T=1.80
T=1.85,MARK B,T=1.85
T=1.90,MARK C,T=1.90
T=1.95,MARK D,T=1.95
T=2.00,MARK E,T=2.00
T=2.05,MARK F,T=2.05
T=2.10,MARK G,T=2.10
T=2.05,MARK 0,T=2.05
T=2.10,MARK 1,T=2.10
T=2.15,MARK 2,T=2.15
T=2.20,MARK 3,T=2.20
T=2.25,MARK 4,T=2.25
T=2.00
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
T=2.61,MARK 17,T=2.61
T=2.67,MARK 18,T=2.67
T=2.73,MARK 19,T=2.73
T=2.79,MARK 20,T=2.79
T=2.85,MARK 21,T=2.85
T=2.91,MARK 22,T=2.91
T=2.97,MARK 23,T=2.97
T=2.30-2.35,MARK 11,T=2.30
T=2.40,MARK 13,T=2.40
T=2.50,MARK 15,T=2.50
T=2.35-2.40,MARK 12,T=2.35
T=2.45,MARK 14,T=2.45
T=2.55,MARK 16,T=2.55
T=2.25,MARK 5,T=2.25
T=1.65,ID=71.1
33331GEAR, REVERSE
33332GEAR, 2ND
33333GEAR, 3RD
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33338BUSH OR BEARING, 5TH GEAR
33338BBUSH, 5TH GEAR
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33359RACE, 5TH GEAR BEARING INNER
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
FROM T/M NO.51215127
33406COVER SUB-ASSY, COUNTERSHAFT
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
T=1.07,OD=62
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.00,MARK A,T=2.00
T=2.05,MARK B,T=2.05
T=2.10,MARK C,T=2.10
T=2.15,MARK D,T=2.15
T=2.20,MARK E,T=2.20
T=2.10-2.15,T=2.10
T=2.20-2.25,T=2.20
T=2.05-2.10,T=2.05
T=2.15-2.20,T=2.15
T=2.25-2.30,T=2.25
T=2.30-2.35,T=2.35
T=2.35-2.40,T=2.40
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=2.0
T=1.8
T=1.60-1.65,T=1.6
T=1.4
T=1.90-1.95,MARK 1,T=1.90
T=1.96-2.01,MARK 2,T=1.96
T=2.02-2.07,MARK 3,T=2.02
T=2.08-2.13,MARK 4,T=2.08
T=2.14-2.19,MARK 5,T=2.14
T=2.20-2.25,MARK 6,T=2.20
T=2.26-2.31,MARK 7,T=2.26
33421GEAR, COUNTER
33421TSPACER, COUNTER GEAR
33425GEAR, COUNTERSHAFT REVERSE
33435WASHER, COUNTER GEAR CASE SIDE THRUST
T=2.00
T=2.15
T=2.30
T=2.45
33451SHAFT, REVERSE IDLER GEAR
33452STOPPER, REVERSE IDLER GEAR SHAFT
33453SPACER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=10,MARK 10X34-36,DRIVEN GEAR N=34
N=6
N=6,W/7.00-14-6 TIRE
N=6,W/7.00-14 TIRE
N=6,W/P195/75R-14 TIRE
N=6,MARK 6X18-20,W/ER78-14 TIRE
N=6,MARK 6X18-20
N=6,MARK 6X18-20,W/P195/75R14 TIRE
N-11
N=10,MARK 10X31-33,DRIVEN GEAR N=31,32 OR 33
N=11,MARK 11X28-30
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.50,OD=31.3
T=1.5
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
9161140818
main91611-40818
54 parts on this diagram · 8 diagrams in section
