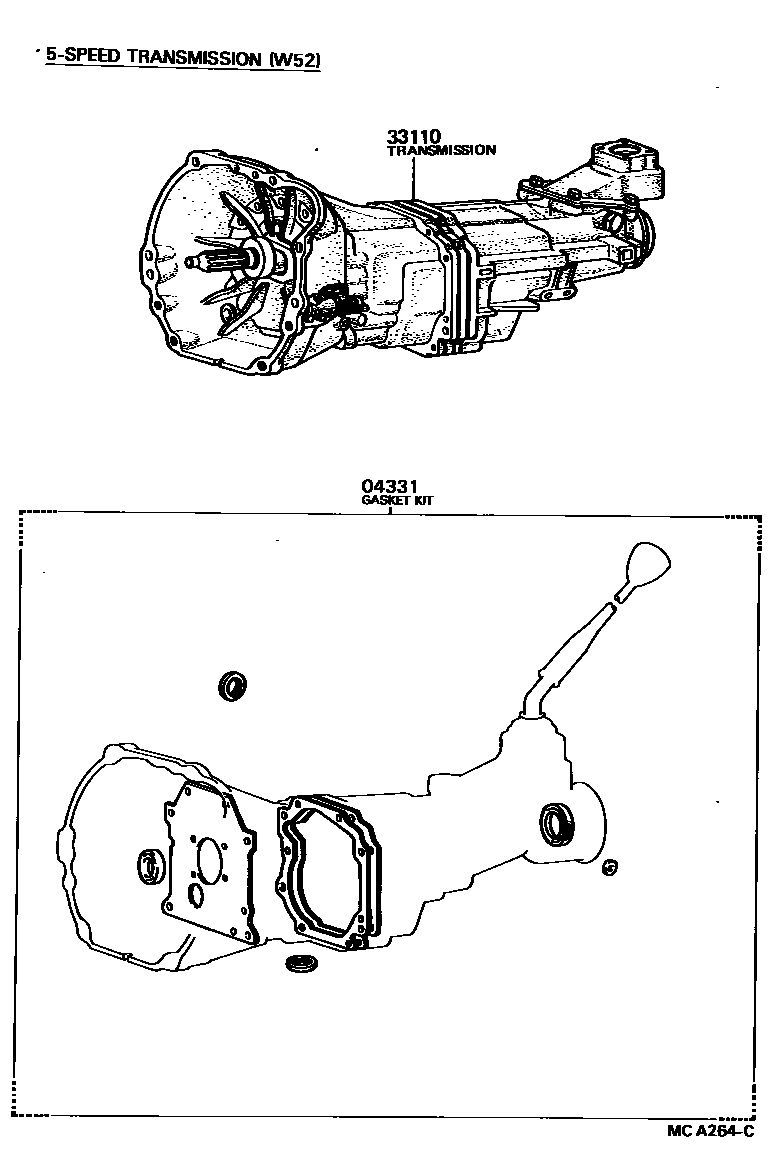

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0003 1 0005 1 0007 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-20050iRN50..4F;LN56,65,RN5#,6#..MTM..(EFI,TD)198408-198903

main04331-35100iLN5#,65,RN6#..G198308-198508

main04331-35101iRN50..CND;RN5#,70..G198508-198808

main04331-35110iRN5#..MTM198308-198508

main04331-35120iRN55..R198508-198808

main04331-35130iRN61..HLF..TBO198508-198808

main04331-35150iVZN6#..R198711-198903

33110TRANSMISSION ASSY, MANUAL

main33030-35120iRN50..W..CBR198308-198408

main33030-35130iRN55..HVY198308-198408

main33030-35160iRN5#..5F..STD..CBR198408-198508

W/7.00-14-6 TIRE

main33030-35160iRN55..3QT;RN5#..5F..EFI198308-198408

W/7.00-14-16 TIRE

main33030-35170iRN55..HLF..CBR198308-198408

W/ER78-14 TIRE

main33030-35170iRN5#..5F..CBR198408-198508

W/P195/75R-14 TIRE

main33030-35370iRN50..4F..W198408-198808

main33030-35380iRN55,75..W..HVY198408-198808

main33030-35390iRN5#..5F..HLF..EFI198408-198808

main33030-35400iRN55..10T198408-198501

*AXC=G072

main33030-35400iRN55..W..10T198501-198808

main33030-35410iRN55..10T198408-198501

*AXC=G282

main33030-35420iLN56..TD198408-198508

main33030-35430iRN6#..EFI198408-198507

main33030-35440iLN65198408-198508

main33030-35470iRN65..XTR..W;RN60..(V,WG)..W198410-198903

main33030-35510iRN55..R198508-198808

main33030-35520iRN6#..R198508-198708

main33030-35530iLN66198508-198708

main33030-35600iRN50..CND;RN50..4F..G198708-198808

W/P195/75R-14 TIRE

main33030-35630iRN50..4F..G198708-198808

main33030-35641iVZN6#..R198711-198903

main33030-35650iRN5#,70..5F..G198708-198808

main33110-35770iLN56..DSL198308-198708

main33110-35810iLN65198308-198408

main33110-35820iRN6#..CBR198308-198708

main33110-35870iLN51198308-198508

2 parts on this diagram · 4 diagrams in section
