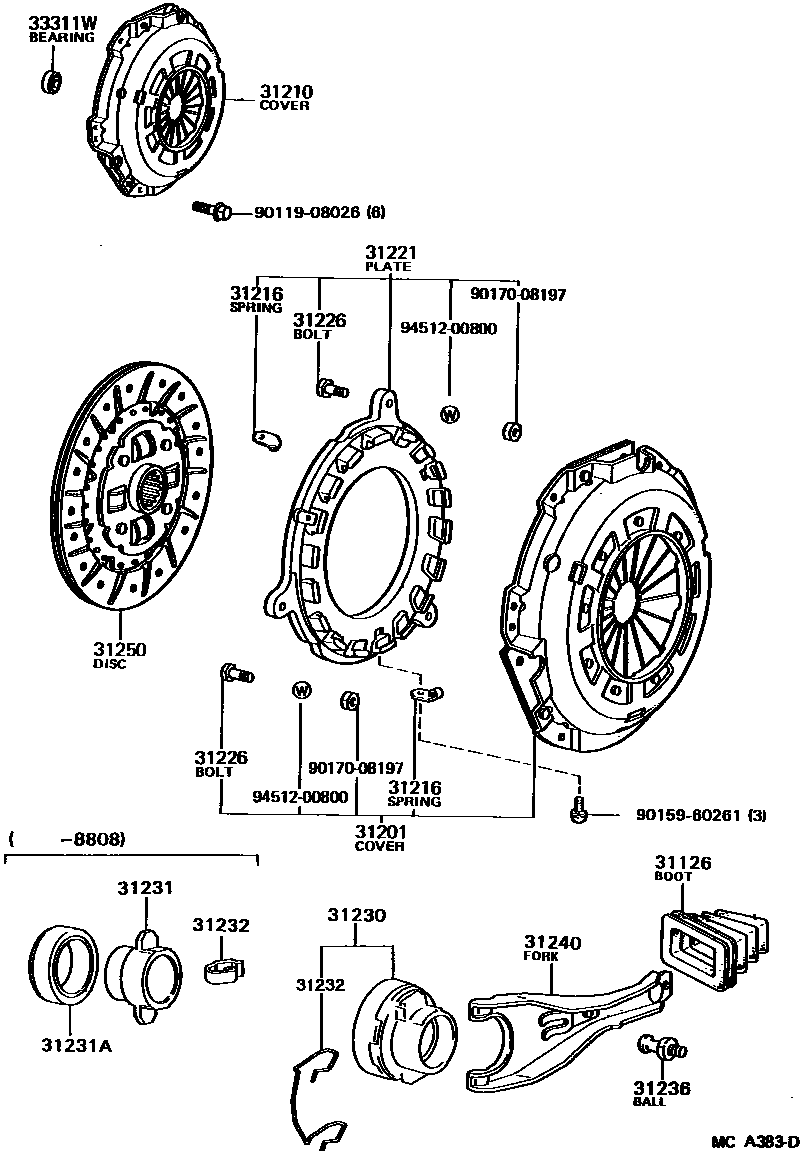

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iRN5#,6#,7#,VZN6#..MTM198308-198903

main31126-20070iLN5#,6#198308-198708

31201COVER SUB-ASSY, CLUTCH

main31201-19095iLN5#,65..DSL198308-198708

main31201-29115iLN56,6#..TD198408-198708

main31201-29125iRN5#,6#,7#..MTM..(CBR,EFI)198508-198801

31210COVER ASSY, CLUTCH

main31210-14130iLN5#,65..DSL198308-198708

main31210-24010iRN5#,6#..MTM198308-198408

main31210-24020iRN5#,6#..MTM198408-198508

main31210-24030iRN55,6#..R198508-198803

main31210-35070iVZN6#..R198711-198903

main31210-35110iRN61..W198808-198903

main31210-35130iRN5#,6#,7#..MTM..(CBR,EFI)198801-198808

main31210-35140iRN55..TBO198803-198808

31216SPRING, CLUTCH RETRACTING

main31216-30010×3iLN5#,65,RN5#,6#..MTM198308-198508

31221PLATE, CLUTCH PRESSURE

main31221-29055iRN5#,6#,7#..MTM..(CBR,EFI)198508-198801

main31221-39056iLN5#,65..DSL198308-198708

main31221-39115iLN56,6#..TD198408-198708

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022×3iLN5#,65,RN5#,6#..MTM198308-198508

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iRN55..TBO198705-198808

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLN5#,6#,RN5#,6#,7#..MTM..(DLX,SR5,STD)198308-198808

main31231-35030iRN55,6#..R198508-198705

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLN5#,6#,RN5#,6#,7#..MTM198308-198705

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010×2iLN5#,6#,RN5#,6#,7#..MTM..(DLX,SR5,STD)198308-198808

main31232-35010iRN55,6#..R198508-198705

main31232-35020iVZN6#..R198711-198903

main31232-35030iRN61,VZN61198808-198903

KOYO BEARING

31236BALL, RELEASE FORK

main31236-30060iLN5#,6#,RN5#,6#,7#..MTM198308-198903

main31236-35030iRN55,6#..R198508-198808

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iRN5#,6#,7#..MTM..(CBR,EFI)198308-198511

main31204-20071iRN5#,6#,7#..MTM..(CBR,EFI)198511-198903

main31204-20090iLN5#,6#198308-198708

main31204-35030iVZN6#..R198711-198903

31250DISC ASSY, CLUTCH

main31250-14130iRN55,6#..R198508-198803

main31250-30350iLN5#,6#198408-198605

main31250-30351iLN56198612-198708

main31250-35101iRN5#,6#..MTM198408-198508

main31250-35150iLN66198612-198706

main31250-35151iLN66198706-198708

main31250-35160iVZN6#..R198711-198903

main31250-35180iRN5#,6#,7#..MTM..(CBR,EFI)198801-198903

main31250-36290iRN55..TBO198803-198808

main31250-60110iRN5#,6#,7#..MTM..(CBR,EFI)198508-198801

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLN5#,6#,RN5#,6#,7#,VZN6#..MTM198308-198903

9011908026

main90119-08026

9015960261

main90159-60261

9017008197

main90170-08197

9451200800

main94512-00800

18 parts on this diagram · 3 diagrams in section
