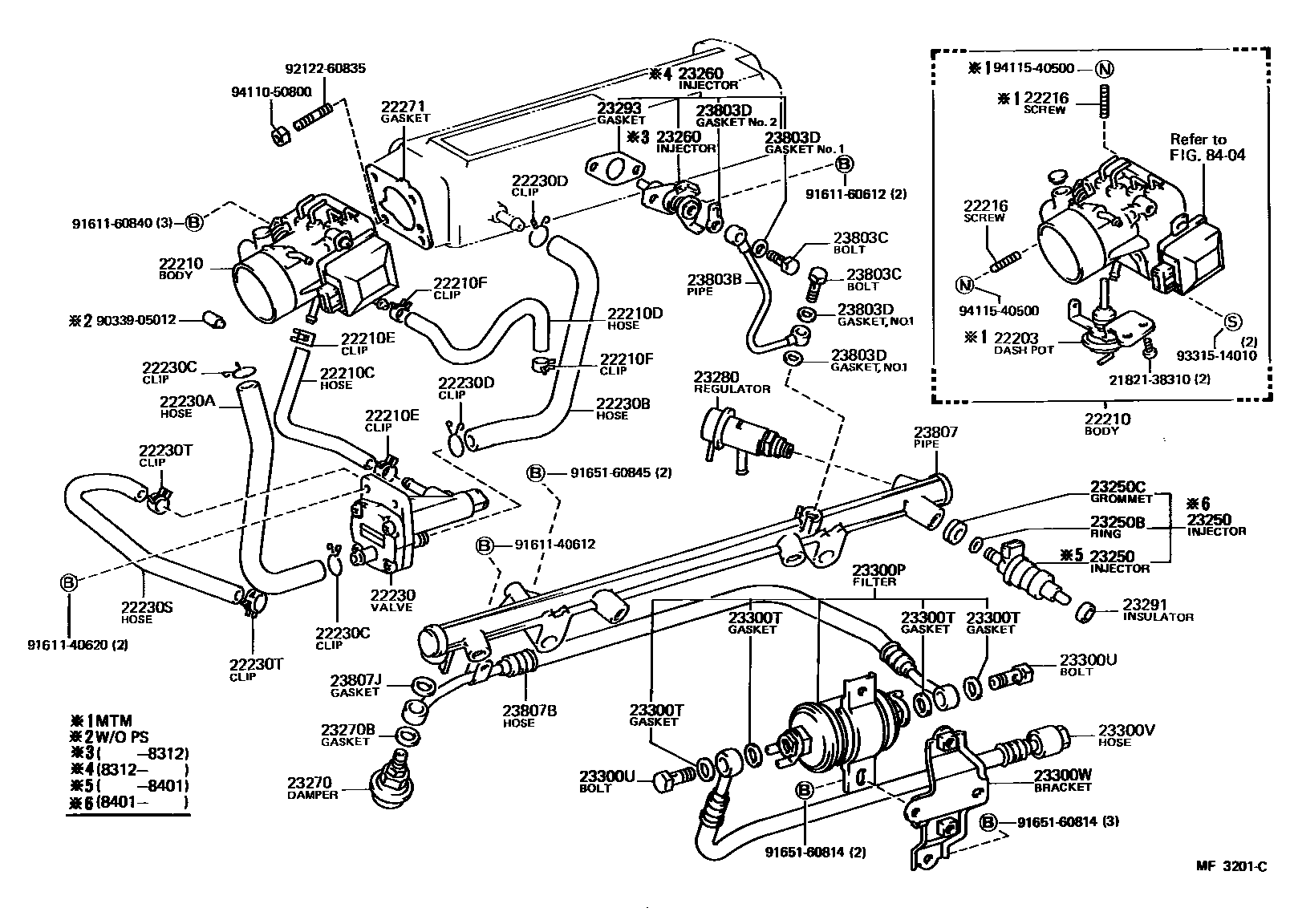

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-35012i22REC..RN5#..5F198308-198408

main22202-35050i22REC..RN5#,6#..MTM198408-198508

main22202-35271i22REC..RN61..W198808-198903

main22202-65011i3VZE..VZN6#..R198711-198808

main22202-65020i3VZE..VZN6#..4FC198711-198808

main22202-65030i3VZE..VZN61..R198808-198903

main22202-65040i3VZE..VZN61..4FC198808-198903

22210BODY ASSY, THROTTLE

main22210-35030i22REC..RN5#..5F198308-198408

main22210-35040i22REC..RN55..4FC198308-198408

main22210-35070i22REC..RN55..W..HVY; 22REC..RN60..V,WG198408-198508

main22210-35080i22REC..RN55..4FC..HVY198408-198508

main22210-35090i22REC..RN5#,6#..T1..5F198408-198508

main22210-35100i22REC..RN55..4FC..HLF198408-198508

main22210-35110i22RTEC..RN55198501-198508

main22210-35120i22RTEC..RN55,61..R198508-198608

main22210-35150i22REC..RN55,66..5F; 22REC..RN61..HLF198508-198608

main22210-35160i22REC..RN55..ATM..(10T,HLF)198508-198608

main22210-35170i22REC..RN55,75..W..HVY;22REC..RN61..(V,WG)..W198508-198608

main22210-35180i22REC..RN61,75..ATM;22REC..RN55..4HC..IV; 22REC..RN66..DLX198508-198608

main22210-35190i22RTEC..RN55,6#..4FC198508-198608

main22210-35200i22REC..RN55,6#..5F198608-198808

main22210-35210i22REC..RN5#,70..ATM..(10T,HLF)198608-198808

main22210-35230i22REC..RN55,75..ATM..HVY; 22REC..RN6#..4FC198608-198808

main22210-35240i22RTEC..RN55198708-198808

main22210-35250i22RTEC..RN61..SRT198608-198708

main22210-35260i22REC..RN55,75..W..HVY198608-198808

main22210-35270i22REC..RN61..W198808-198903

main22210-35290i22REC..RN61..4FC198808-198903

main22210-65010i3VZE..VZN6#..R198711-198802

main22210-65011i3VZE..VZN6#..R198802-198808

main22210-65020i3VZE..VZN6#..4FC198711-198802

main22210-65021i3VZE..VZN6#..4FC198802-198808

main22210-65030i3VZE..VZN61..R198808-198903

main22210-65040i3VZE..VZN61..4FC198808-198903

22210CHOSE, WATER BY-PASS, NO.1

main16267-35010i22REC,22RTEC..RN5#,6#,7#198308-198808

main16267-35030i22REC..RN61198808-198903

22210DHOSE, WATER BY-PASS, NO.2

main16264-35010i22REC..RN5#198308-198408

main16264-35011i22REC,22RTEC..RN5#,6#198408-198502

main16264-35012i22REC,22RTEC..RN5#,6#,7#198502-198808

main16264-35030i22REC..RN61198808-198903

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13001×2i22REC,22RTEC..RN5#,6#,7#198308-198903

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main90467-13001×2i22REC,22RTEC..RN5#,6#,7#198308-198903

22216SCREW, DASH POT ADJUSTING

main22216-74010×2i22REC,22RTEC..RN5#,6#,7#; 3VZE..VZN6#198308-198808

22230VALVE ASSY, AUXILIARY AIR

main22230-35010i22REC,22RTEC..RN5#,6#,7#198308-198808

main22230-35030i22REC..RN61..W198808-198903

main22230-35040i22REC..RN61..4FC198808-198903

22230AHOSE, AUXILIARY AIR VALVE, NO.1

main22233-35010i22REC,22RTEC..RN5#,6#,7#198308-198808

22230BHOSE, AUXILIARY AIR VALVE, NO.2

main22234-35010i22REC,22RTEC..RN5#,6#,7#198308-198808

22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1

main90467-19003×2i22REC,22RTEC..RN5#,6#,7#198308-198808

22230DCLIP, AUXILIARY AIR VALVE HOSE, NO.2

main90467-19003×2i22REC,22RTEC..RN5#,6#,7#198308-198808

22230SHOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE)

main16281-35010i22REC,22RTEC..RN5#,6#,7#198308-198808

22230TCLAMP OR CLIP, HOSE(FOR WATER BY-PASS)

main90467-13001×2i22REC,22RTEC..RN5#,6#,7#198308-198808

22271GASKET, THROTTLE BODY

main22271-35010i22REC,22RTEC..RN5#,6#,7#198308-198808

main22271-35020i22REC..RN61198808-198903

main22271-65010i3VZE..VZN6#198711-198802

main22271-65011i3VZE..VZN6#198802-198903

23250INJECTOR ASSY, FUEL

main23209-35010×4i22RTEC..RN55198501-198508

main23209-35020×4i22RTEC..RN55,6#198508-198808

main23209-35030×4i22REC..RN5#,6#,7#198708-198808

main23209-35040×4i22REC..RN61198808-198903

main23209-45011×4i22REC..RN5#,6#,75198401-198708

main23209-65010×6i3VZE..VZN6#198711-198808

main23209-65020×6i3VZE..VZN61198808-198903

main23250-45011×4i22REC..RN5#198308-198401

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×6i22REC,22RTEC..RN5#,6#,7#; 3VZE..VZN6#198308-198903

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×6i22REC,22RTEC..RN5#,6#,7#; 3VZE..VZN6#198308-198903

23260INJECTOR ASSY, COLD START FUEL

main23260-35010i22REC..RN5#198308-198312

main23260-39055i22REC,22RTEC..RN5#,6#,7#198312-198903

main23260-69045i3VZE..VZN6#198711-198903

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-65010i3VZE..VZN6#198711-198903

main23270-35010i22REC,22RTEC..RN5#,6#,75198412-198702

main23270-42010i22REC,22RTEC..RN5#,6#,7#198702-198808

main23270-70010i22REC..RN5#,6#198308-198412

23270BGASKET(FOR PULSATION DAMPER HOSE)

main90430-17002i22REC,22RTEC..RN5#,6#,7#198308-198808

main90430-18016i3VZE..VZN6#198711-198903

23280REGULATOR ASSY, FUEL PRESSURE

main23280-35010i22REC..RN5#,6#198308-198410

main23280-35011i22REC,22RTEC..RN5#,6#198410-198508

main23280-35020i22REC,22RTEC..RN55,6#,75198508-198708

main23280-35030i22REC,22RTEC..RN5#,6#,7#198708-198903

main23280-65010i3VZE..VZN6#198711-198903

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×6i22REC,22RTEC..RN5#,6#,7#; 3VZE..VZN6#198308-198903

23293GASKET, COLD START INJECTOR

main23293-35010i3VZE..VZN61198808-198903

main23293-35020i22REC..RN61198808-198903

23300PFILTER, FUEL(FOR EFI)

main23300-39025i22REC..RN5#198308-198408

main23300-39035i22REC,22RTEC..RN5#,6#,7#198408-198903

main23300-65010i3VZE..VZN6#198711-198903

23300TGASKET(FOR FUEL FILTER)

main90430-12005×4i22REC,22RTEC..RN5#,6#,7#198308-198903

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097×2i22REC,22RTEC..RN5#,6#,7#198308-198903

23300VHOSE, FUEL(FOR FUEL INLET)

main23906-35010i22REC..RN61198808-198903

main90923-01293i22REC,22RTEC..RN5#,6#,7#198308-198808

23300WBRACKET, FUEL FILTER

main23264-35010i22REC..RN5#198308-198408

main23264-35020i22REC,22RTEC..RN5#,6#,7#198408-198903

23803BPIPE SUB-ASSY, FUEL, NO.3

main23801-35010i22REC,22RTEC..RN5#,6#,7#198308-198903

main23803-65020i3VZE..VZN6#198711-198903

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-08003×2i22REC,22RTEC..RN5#,6#,7#198308-198903

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-08005×3i22REC,22RTEC..RN5#,6#,75198308-198703

NO.1

main90430-08007i22REC,22RTEC..RN5#,6#,75198308-198703

NO.2

main90430-08009×3i22REC,22RTEC..RN5#,6#,7#198703-198903

NO.1

main90430-08011i22REC,22RTEC..RN5#,6#,7#198703-198903

NO.2

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-35010i22REC,22RTEC..RN5#,6#,75198308-198703

main23807-35011i22REC,22RTEC..RN55,6#,75198703-198708

main23807-35020i22REC,22RTEC..RN5#,6#,7#198708-198903

main23807-65010i3VZE..VZN6#198711-198903

23807BHOSE, FUEL DELIVERY PIPE

main90923-01263i22REC..RN5#198308-198408

main90923-01326i22REC,22RTEC..RN5#,6#,7#198408-198808

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-14002i22REC,22RTEC..RN5#,6#,7#198308-198808

main90430-18016i3VZE..VZN6#198711-198903

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

9033905012

main90339-05012

9161140612

main91611-40612

9161140620

main91611-40620

9161160612

main91611-60612

9161160840

main91611-60840

9165160814

main91651-60814

9165160845

main91651-60845

9212260835

main92122-60835

9331514010

main93315-14010

9411050800

main94110-50800

9411540500

main94115-40500

48 parts on this diagram · 6 diagrams in section
