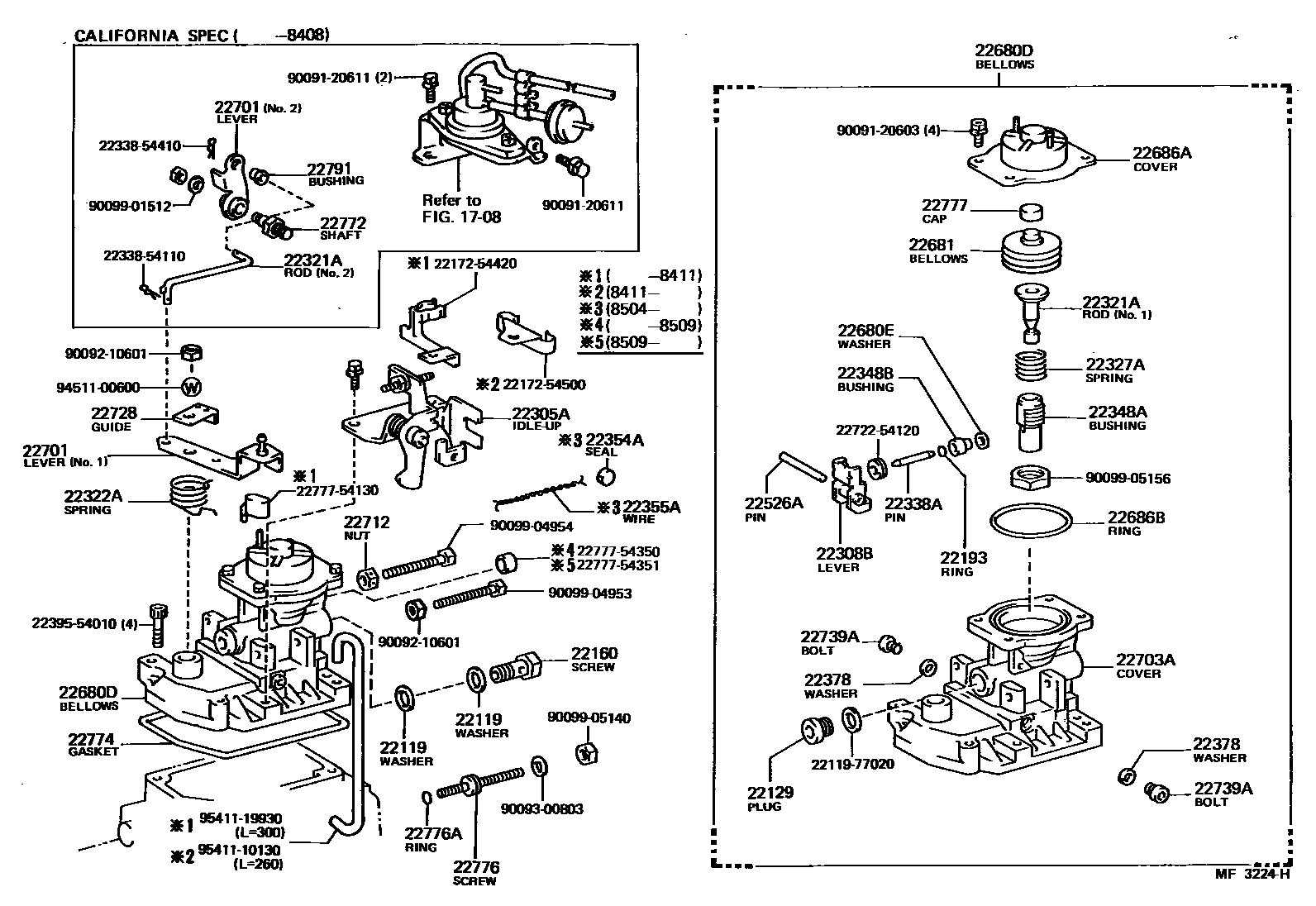

INJECTION PUMP BODY
1708
22129PLUG, SCREW
22160SCREW SUB-ASSY, OVERFLOW
22321AROD, PUSH
NO.1
NO.2,CALIFORNIA SPEC
22327ASPRING(FOR BELLOWS)
22338APIN, LEVER CONNECTING
22348ABUSHING, GUIDE
NO.1
NO.3
NO.2
22348BBUSHING, GUIDE(FOR LEVER CONNECTING PIN)
22354ASEAL, ROD
22355AWIRE, GOVERNOR HOUSING SEAL
22526APIN, LEVER SUPPORT
22680EWASHER, COPPER PLATE
22681BELLOWS SUB-ASSY, PNEUMATIC
22686ACOVER, PNEUMATIC BELLOWS
22686BRING, O(FOR BELLOWS COVER)
22701LEVER SUB-ASSY, ADJUSTING
NO.2,CALIFORNIA SPEC
NO.1,CALIFORNIA SPEC
NO.1,CALIFORNIA SPEC
NO MARK
MARK"0"
NO MARK
MARK"0"
22703ACOVER SUB-ASSY, GOVERNOR
CALIFORNIA SPEC
22712NUT, ROCK
22728GUIDE, RETURN SPRING
22739BOLT, GOVERNOR LINK SUPPORT
22739ABOLT, GOVERNOR LINK SUPPORT NO.2
22772SHAFT, LEVER(FOR THROTTLE POSITION SENSOR)
CALIFORNIA SPEC
22774GASKET, GOVERNOR COVER
sub22774-54270
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
sub22193-54771
22777CAP, RUBBER(FOR BELLOWS)
22791BUSHING(FOR THROTTLE POSITION SENSOR LEVER SHAFT)
CALIFORNIA SPEC
2211977020WASHER, AIR BLEEDER NIPPLE
main22119-77020
2217254420CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54420
2217254500CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54500
2233854110PIN, LEVER
main22338-54110
2233854410PIN, LEVER
main22338-54410
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2272254120NUT, GOVERNOR SHAFT ROCK
main22722-54120
2277754130CAP, RUBBER(FOR BELLOWS)
main22777-54130
2277754350CAP, RUBBER(FOR BELLOWS)
main22777-54350
2277754351CAP, RUBBER(FOR BELLOWS)
main22777-54351
9009120603
main90091-20603
9009120611
main90091-20611
9009210601
main90092-10601
9009300803
main90093-00803
9009901512
main90099-01512
9009904953
main90099-04953
9009904954
main90099-04954
9009905140
main90099-05140
9009905156
main90099-05156
9451100600
main94511-00600
9541110130
main95411-10130
9541119930
main95411-19930
56 parts on this diagram · 5 diagrams in section
