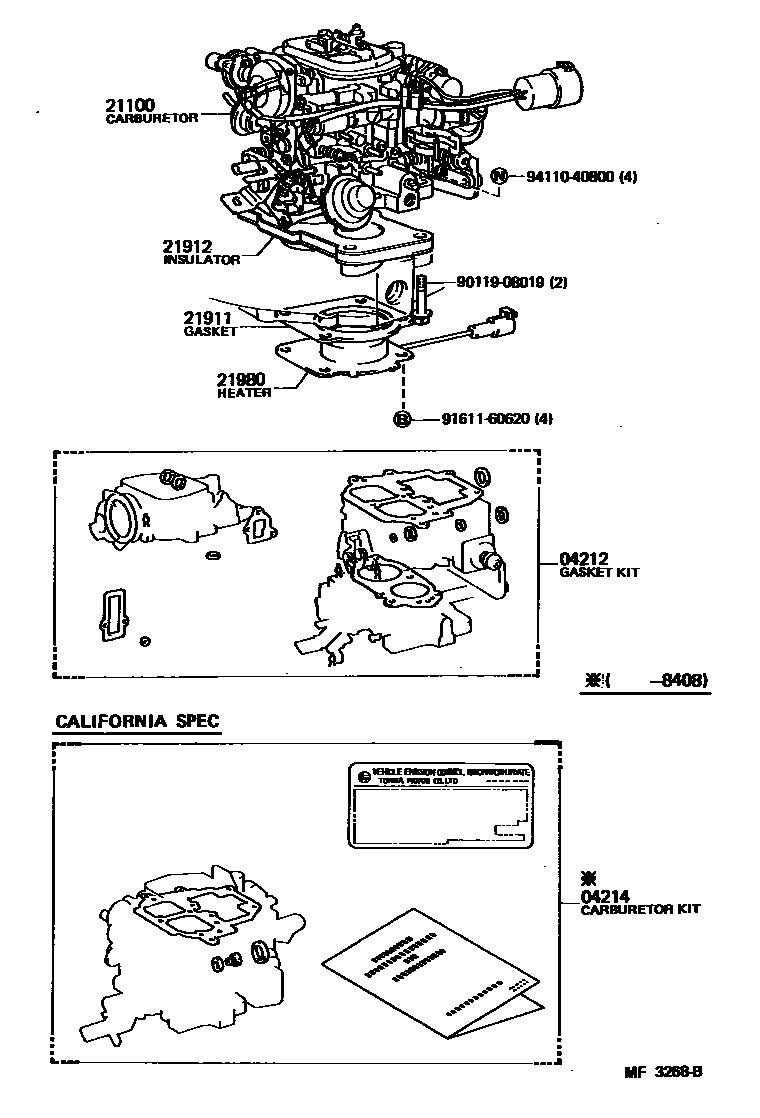

CARBURETOR ASSEMBLY

04212GASKET KIT, CARBURETOR

main04212-35010i22R..RN5#,6#198308-198408

main04212-35400i22R..RN5#..USA; 22R..RN6#,70..IV; 22R..RN70..4HC..USA..CBU198608-198708

CALIFORNIA SPEC

main04212-35410i22R..RN50..CND;22R..RN5#,70..G198708-198808

main04212-37060i22R..RN5#,6#,70198408-198708

04214CARBURETOR KIT, HIGH ALTITUDE, PERFORMANCE, MODIFICATION

main04214-35060i22R..RN5#..STD..HLF..USA; 22R..RN55,6#..(3QT,HLF)..IV198308-198408

CALIFORNIA SPEC

21100CARBURETOR ASSY

main21100-35211i22R..RN5#..W..STD..HLF..USA; 22R..RN55,6#..5F..IV; 22R..RN55..HVY198308-198408

CALIFORNIA SPEC

main21100-35231i22R..RN55..4FC..IV; 22R..RN55..4FC..STD198308-198408

CALIFORNIA SPEC

main21100-35270i22R..RN5#,6#..MTM..(3QT,HLF)198308-198408

main21100-35280i22R..RN55..4FC198308-198408

main21100-35290i22R..RN5#,6#,70..MTM198408-198509

main21100-35291i22R..RN5#,6#,70..MTM198509-198708

main21100-35301i22R..RN5#,70..ATM198408-198509

main21100-35302i22R..RN5#,70..4HC198509-198708

main21100-35310i22R..RN5#..W..USA; 22R..RN6#,70..5F..IV198508-198601

CALIFORNIA SPEC

main21100-35390i22R..RN5#..4HC..USA; 22R..RN70..4HC..IV198508-198601

CALIFORNIA SPEC

main21100-35410i22R..RN50..CND;22R..RN5#,70..G198708-198808

main21100-35430i22R..RN5#..W..USA; 22R..RN6#,70..5F..IV198608-198708

CALIFORNIA SPEC

main21100-35440i22R..RN5#,70..4HC..USA198608-198708

CALIFORNIA SPEC

21911GASKET, CARBURETOR

main21995-35010i22R..RN5#,6#,70198308-198808

21912INSULATOR, CARBURETOR HEAT

main21912-35030i22R..RN5#,6#,70198308-198808

21980HEATER ASSY, COLD MIXTURE

main21980-35010i22R..RN5#,6#,70198308-198808

9011908019

main90119-08019

9161160620

main91611-60620

9411040800

main94110-40800

9 parts on this diagram · 1 diagram in section
