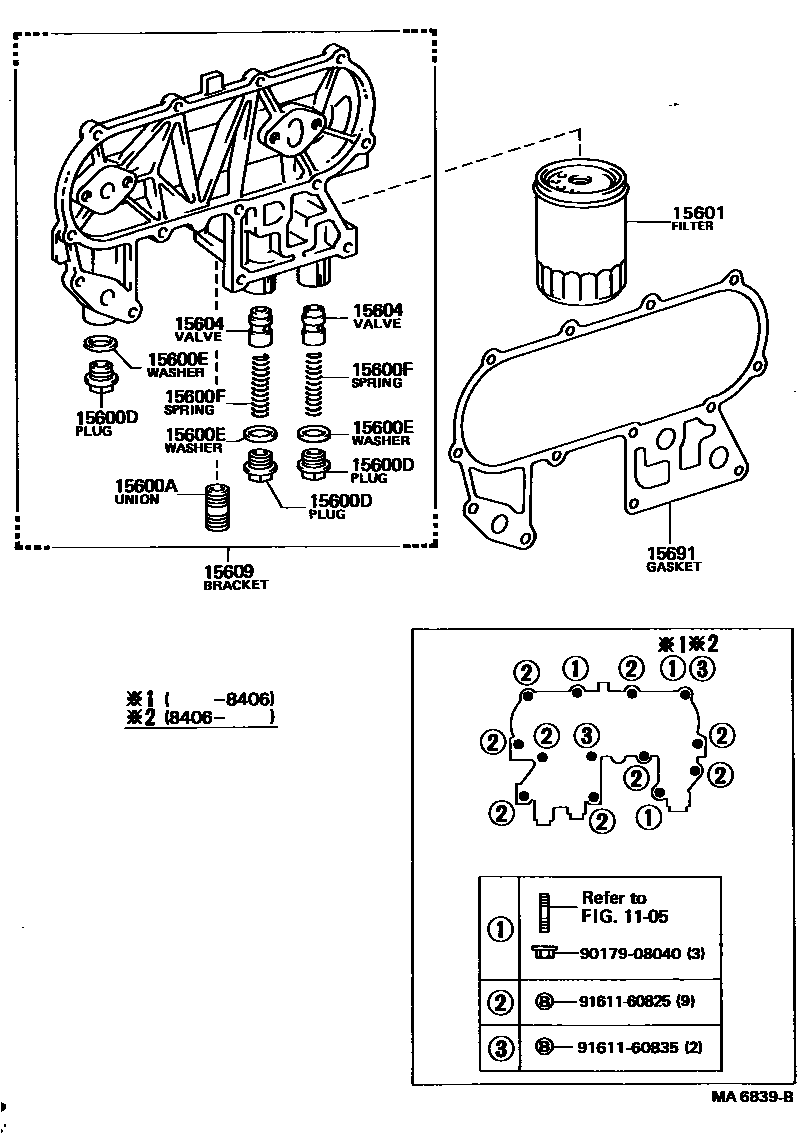

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54010i2LT..LN6#198408-198903

main15116-54020i2LT..LN56198408-198508

sub15116-54021

main90404-19013i3VZE..VZN6#198711-198903

main90404-20173i22R,22REC..RN5#,6#,7#198308-198903

15600DPLUG(FOR OIL FILTER)

main90341-18015×3i2L#..LN5#198308-198708

main90344-54003i2L#..LN6#198308-198708

NO.2

15600EWASHER(FOR OIL FILTER)

main90430-18001×3i2L#..LN5#,65198308-198411

main90430-18011×3i2L#..LN5#,6#198411-198708

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026×2i2L#..LN5#,6#198308-198708

15601FILTER SUB-ASSY, OIL

main15600-25010i22RTEC..RN55,61,66198501-198708

sub90915-20003

main15600-41010i2L..LN5#,65198308-198708

sub90915-40002

main15600-54010i2LT..LN56198408-198508

sub90915-03006

main15601-44011i22R,22REC..RN5#,6#,7#198308-198708

sub90915-40002

main90915-03002i22R#..RN5#,6#,7#198708-198903

sub90915-20001

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010×2i2L#..LN5#,6#198308-198708

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54011i2L..LN5#198308-198406

sub32924-26012

sub91611-60835

main15609-54012i2L..LN5#198406-198708

main15609-54040i2L..LN65198308-198402

sub90119-08467

main15609-54041i2L..LN65198402-198408

main15609-54050i2LT..LN6#198408-198708

main15609-54060i2LT..LN56198408-198508

main15701-54010i2L..LN56..IV198308-198408

CALIFORNIA SPEC

15691GASKET, OIL FILTER

main15691-54012i2L..LN56..IV198308-198408

CALIFORNIA SPEC,NO.1

main15692-54010i2L..LN56..IV198308-198408

CALIFORNIA SPEC,NO.2

sub15692-54011

main15692-54020i2L#..LN56,66198608-198708

sub15692-54040

9017908040

main90179-08040

9161160825

main91611-60825

9161160835

main91611-60835

12 parts on this diagram · 5 diagrams in section
