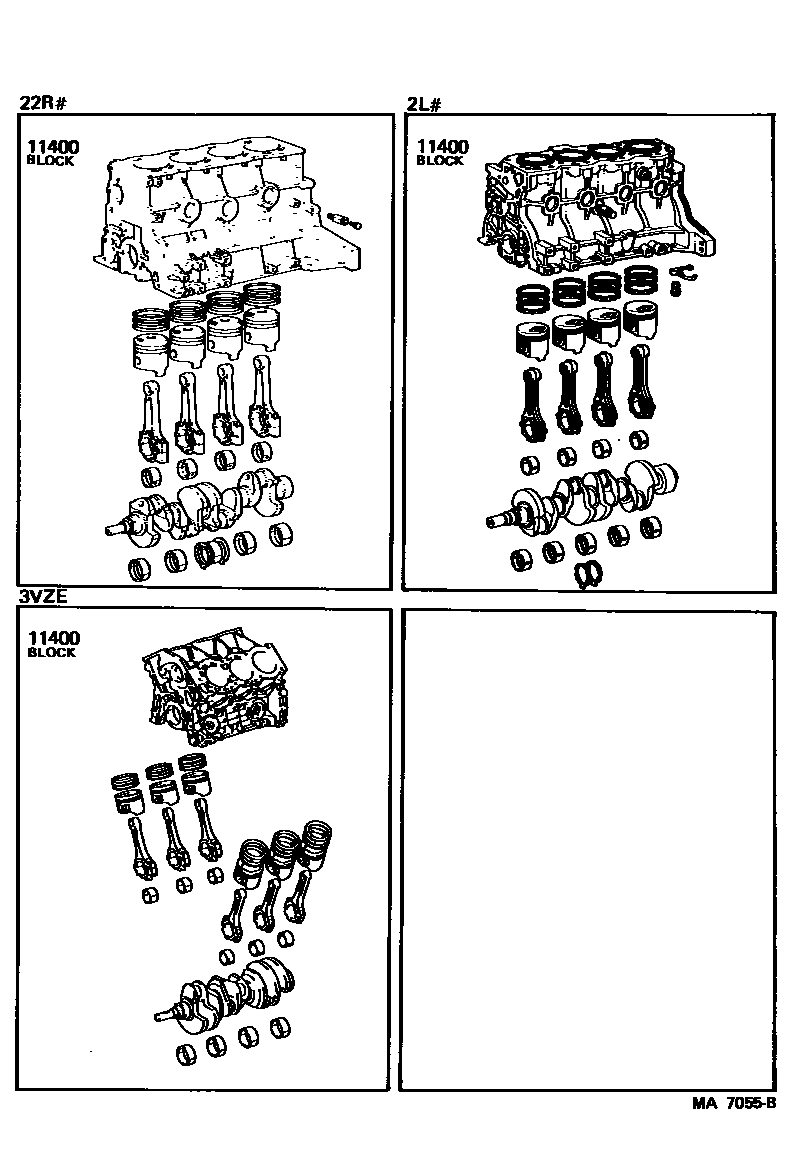

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-35020i22R#..RN5#,6#198308-198408

main11400-35050i22R,22REC..RN5#,6#198408-198602

main11400-35051i22R,22REC..RN5#,6#198602-198607

main11400-35052i22R,22REC..RN5#,6#,7#198607-198801

main11400-35053i22R,22REC..RN5#,6#,7#198801-198903

main11400-35060i22RTEC..RN55,61,66198501-198701

main11400-35062i22RTEC..RN55,6#198701-198808

main11400-54060i2L..LN5#,65198308-198407

main11400-54061i2L..LN5#,65198407-198708

main11400-54090i2LT..LN56,6#198408-198708

main11400-65010i3VZE..VZN6#198711-198808

main11400-65020i3VZE..VZN61198808-198903

1 parts on this diagram · 1 diagram in section
