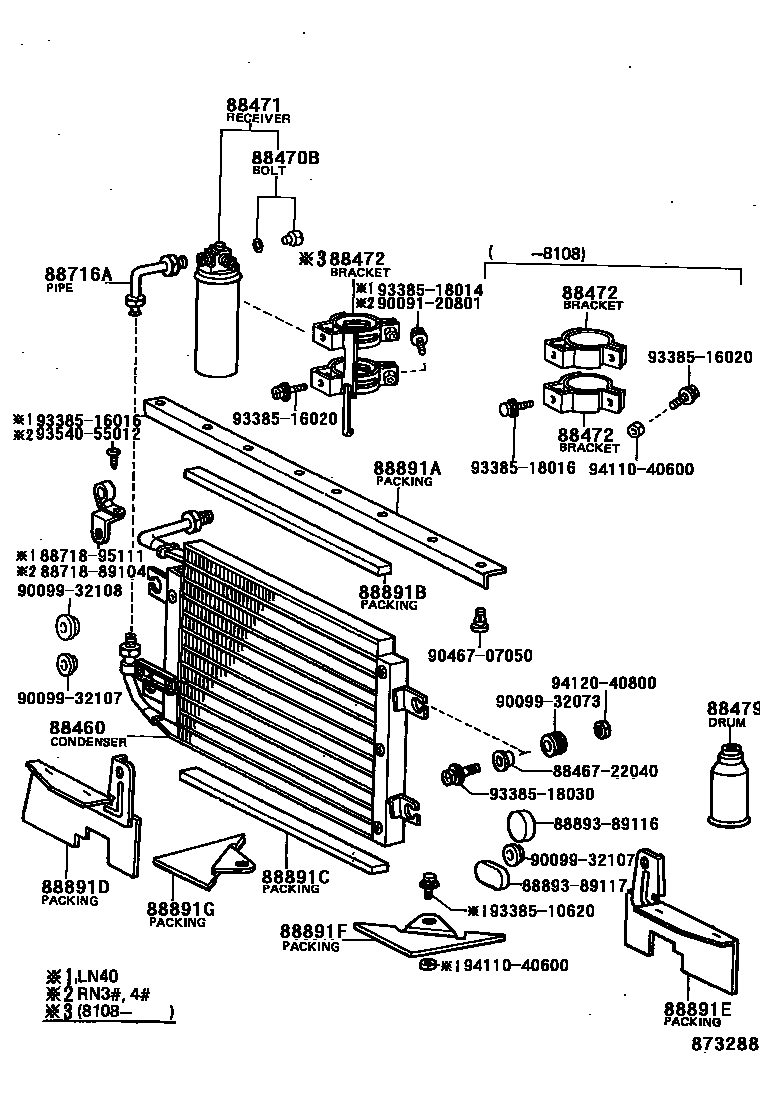

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88460CONDENSER ASSY, COOLER

main88460-89107iRN3#,42..USA197808-198008

main88460-89108iRN38,48;LN40,RN34,44..USA198108-198307

88470BBOLT, FUSE

main90099-04579iLN40,RN3#,4#..USA197808-198307

88471TANK, RECEIVER AIR CONDITIONER

main88470-12030iRN3#,42..USA197808-198008

main88471-16010iLN40,RN3#,4#..USA198008-198108

88472BRACKET, RECEIVER TANK, NO.1

main88472-89104×2iRN3#,42..USA197808-198008

main88472-89105iRN38,48;LN40,RN34,44..USA198108-198307

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iLN40,RN3#,4#..USA197808-198108

400G

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-12420iLN40..USA198101-198108

main88716-89120iRN3#,42..USA197808-198008

main88716-89128iRN3#,4#..USA198008-198108

88891APACKING A (FOR COOLER)

main88893-89113iRN38,48;LN40,RN34,44..USA198108-198307

88891BPACKING B (FOR COOLER)

main88893-89114iRN3#,4#..USA197808-198108

main88893-89118iLN40..USA198101-198307

88891CPACKING C (FOR COOLER)

main88893-89115iRN3#,4#..USA197808-198108

main88893-89118iLN40..USA198101-198108

main88893-89120iLN40..USA198108-198307

88891DPACKING D (FOR COOLER)

main88898-89109iLN40,RN3#,4#197808-198307

88891EPACKING E (FOR COOLER)

main88898-89110iLN40,RN3#,4#197808-198307

88891FPACKING F (FOR COOLER)

main88898-89114iLN40..USA198101-198307

88891GPACKING G (FOR COOLER)

main88898-89115iLN40..USA198101-198307

8846722040CUSHION, COOLER CONDENSER, NO.1

main88467-22040

8871889104PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-89104

8871895111PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95111

8889389116COLLAR (FOR COOLER IDLER PULLEY)

main88893-89116

8889389117COLLAR (FOR COOLER IDLER PULLEY)

main88893-89117

9009120801

main90091-20801

9009932073

main90099-32073

9009932107

main90099-32107

9009932108

main90099-32108

9046707050

main90467-07050

9338510620

main93385-10620

9338516016

main93385-16016

9338516020

main93385-16020

9338518014

main93385-18014

9338518016

main93385-18016

9338518030

main93385-18030

9354055012

main93540-55012

9411040600

main94110-40600

9412040800

main94120-40800

32 parts on this diagram · 2 diagrams in section
