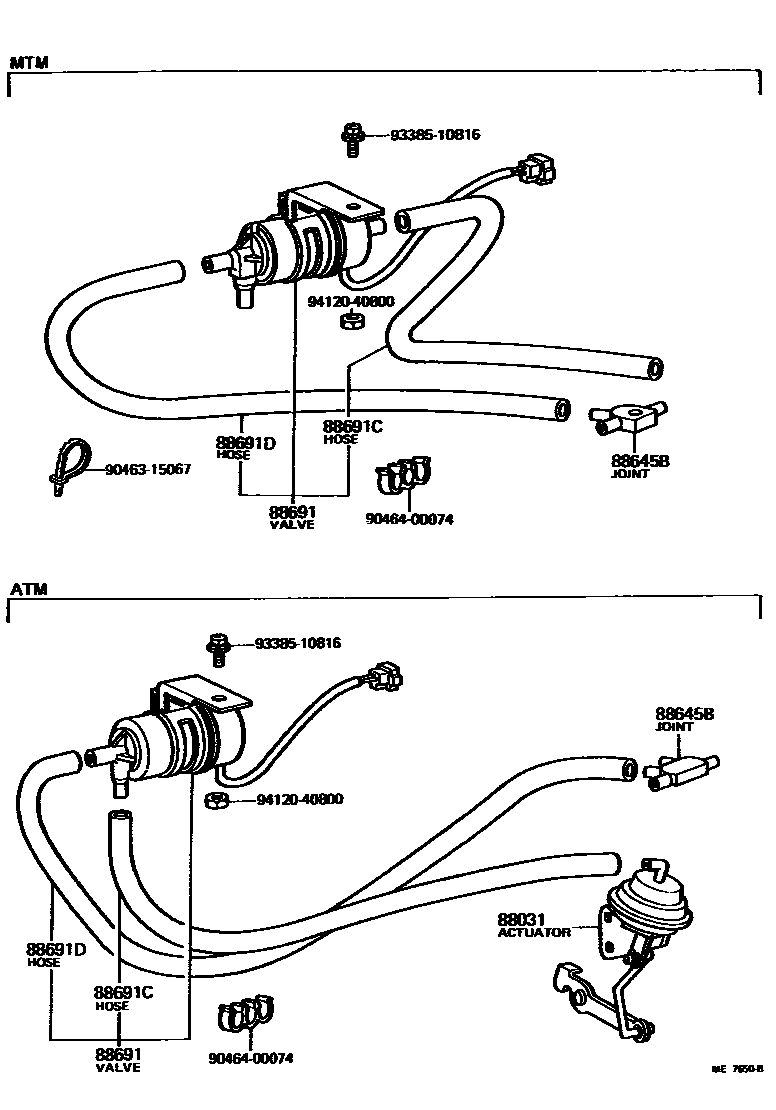

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1

88031ACTUATOR SET, IDLE-UP

main88031-22070iRN32,42..3FC..USA197808-198008

main88031-30060iLN40..USA198101-198108

main88031-35040iLN40..USA198108-198307

main88031-36012iRN38,48;RN34,44..(3QT,HLF)..USA198108-198307

main88609-35010iRN38,48..USA198008-198108

FEDERAL SPEC

main88609-89102iRN34,44..USA198008-198108

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04001iRN3#,4#..USA197908-198108

main90413-04005iRN32,42..3FC..USA197808-197908

main90414-04002iRN3#,42..MTM..USA197808-197908

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-89105iRN3#,42..MTM..USA197808-197908

main88690-89106iRN32,42..3FC..USA197808-197908

main88690-89107iRN32,42..MTM..USA; RN37..USA197908-198008

main88690-89108iRN32,42..3FC..USA197908-198008

main88690-89111iRN3#,4#..USA198008-198108

main88690-89112iLN40..USA198101-198307

main88690-95112iRN38,48..USA198008-198108

CALIFORNIA SPEC

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main88689-89101iLN40..USA198101-198307

L=1350

main95411-10160iRN3#,4#..USA198008-198108

*H,L=450,MARK=#1

main95411-10195iRN3#,42..USA197908-198008

*H,L=700,MARK=#1

main95411-19930iRN3#,42..MTM..USA197808-197908

*H,L=300,MARK=#*

main95411-19995iRN32,42..3FC..USA197808-197908

*H,L=700,MARK=#*

88691DHOSE, VACUUM (FOR IDLE UP DIVICE), NO.2

main95411-10060iLN40..USA; RN38,48;RN34,44..USA198108-198307

*H,L=390,MARK=#0; *H,L=450,MARK=#0

9046315067

main90463-15067

9046400074

main90464-00074

9338510816

main93385-10816

9412040800

main94120-40800

9 parts on this diagram · 3 diagrams in section
