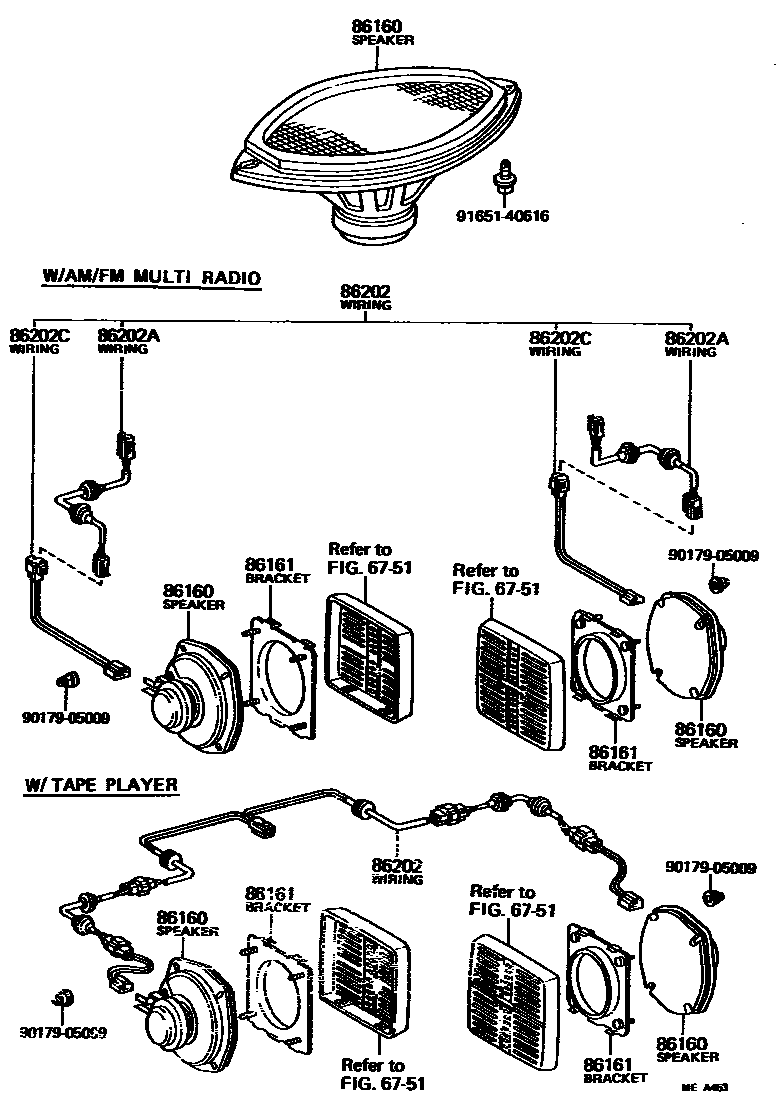

SPEAKER

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

86160SPEAKER ASSY, FRONT NO.1

main86160-89106iLN40,RN37,47..DLX;RN32,34,38,42,44,48197808-198307

AM,AM/FM

main86160-89108×2iLN40,RN3#,4#..SR5198108-198307

AM/FMMULTI,ELECTRONIC SEARCH

main86160-95A01×2iRN37,38,47,48;RN32,34,42,44..SR5197909-198108

DOOR,AM/FM MULTI RADIO

86161BRACKET, SPEAKER, FRONT NO.1

main86219-89102×2iLN40,RN3#,4#197808-198307

DOOR,W/TAPE PLAYER

86202WIRE, SPEAKER, NO.1

main86202-89102iLN40,RN3#,4#197808-198307

W/TAPE PLAYER

main86202-89103iLN40,RN37,38,47,48;RN32,34,42,44..SR5197909-198307

AM/FM MULTI RADIO

86202AWIRE, SPEAKER, NO.2

main86202-89106×2iLN40,RN37,38,47,48;RN32,34,42,44..SR5197909-198307

AM/FM MULTI RADIO

86202CWIRE, SPEAKER, NO.3

main86202-89107×2iLN40,RN37,38,47,48;RN32,34,42,44..SR5197909-198307

AM/FM MULTI RADIO

9017905009

main90179-05009

9165140616

main91651-40616

8 parts on this diagram · 1 diagram in section
